InteractiveGuitar
About the InteractiveGuitar PCB

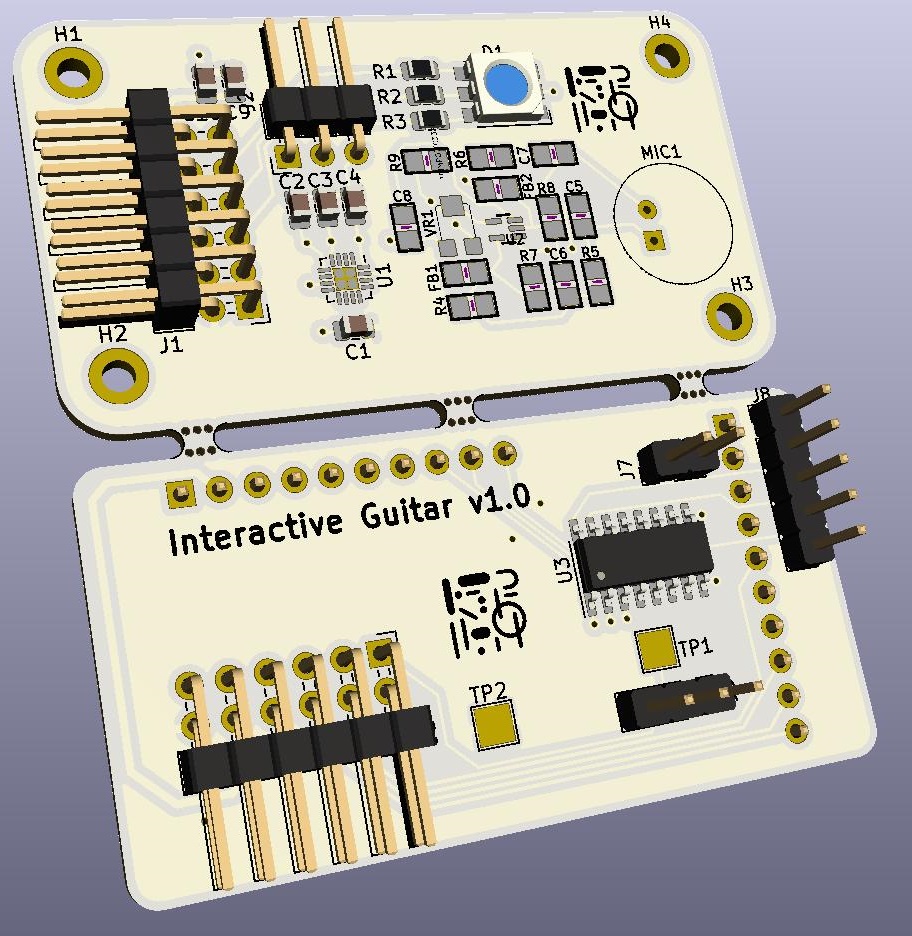

InteractiveGuitar is an open source PCB design by emoninet2, published on GitHub. It is a 2-layer board measuring 54 × 60 mm, with 36 components from 26 distinct parts.
Other key parts include the ADXL337BCPZ–RL, MAX4466 and BA12003DF-Z. By type, the board carries 10 capacitors, 9 resistors, 8 connectors, 3 ICs, 2 inductors and 1 diode.
Main components on the InteractiveGuitar
InteractiveGuitar bill of materials (BOM)
36 components, 26 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ADXL337BCPZ–RL | LFCSP-16-1EP_3x3mm_P0.5mm_EP1.6x1.6mm | U1 |
| 1 | MAX4466 | SC70-5 | U2 |
| 1 | BA12003DF-Z | SOIC-16_3.9x9.9mm_P1.27mm | U3 |
| 2 | Conn_02x06_Odd_Even | PinHeader_2x06_P2.54mm_Horizontal | J1, J3 |
| 1 | Conn_01x03 | PinHeader_1x03_P2.54mm_Horizontal | J2 |
| 2 | Conn_01x10 | PinHeader_1x10_P2.54mm_Vertical | J4, J5 |
| 1 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J6 |
| 1 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J7 |
| 1 | Conn_01x05 | PinHeader_1x05_P2.54mm_Vertical | J8 |
| 1 | CMA-4544PF-W | ELECTRET_9.7 | MIC1 |
| 1 | TRIMPOTTC33X-2 | TRIMPOT_BOURNS_TC33X-2 | VR1 |
| 1 | VAL** | mouse-bite-2mm-slot | mouse-bite-2mm-slot |
| 1 | ASMT-YTB7-0AA02 | LED_RGB_5050-6 | D1 |
| 2 | FERRITE | 0805 | FB1, FB2 |
| 1 | 0.1uF | C_0805_2012Metric | C1 |
| 3 | 10nF | C_0805_2012Metric | C2, C3, C4 |
| 1 | 0.01uF | 0805 | C5 |
| 1 | 0.1uF | 0805 | C6 |
| 1 | 10uF | 0805 | C7 |
| 1 | 100pF | 0805 | C8 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10uF | C_0805_2012Metric | C9 |
| 1 | 0.01uF | C_0805_2012Metric | C10 |
| 3 | 100 | R_0805_2012Metric | R1, R2, R3 |
| 3 | 1K | 0805 | R4, R5, R6 |
| 2 | 1M | 0805 | R7, R8 |
| 1 | 22K | 0805 | R9 |
InteractiveGuitar design files
The KiCad project lives in the emoninet2/InteractiveGuitar repository on GitHub; these links point at the commit this page was built from.
InteractiveGuitar: common questions
How big is the InteractiveGuitar PCB?
The InteractiveGuitar measures 54 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the InteractiveGuitar?
36 components, from 26 distinct parts. The full bill of materials is listed on this page.
Where can I download the InteractiveGuitar design files?
From the emoninet2/InteractiveGuitar repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the InteractiveGuitar design in my own project?
The repository has no license, so all rights stay with emoninet2. Use it as a reference, and ask the author before reusing the design.
