Protoboard
About the Protoboard PCB
Protoboard is an open source PCB design by feastorg, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 100 × 110 mm, with 32 components from 28 distinct parts.
From the project
protokit is an open-source collection of protoboards, stripboards, expansion boards, and layout boards with configured footprints and trace routing. Designed in KiCad to support rapid electronics prototyping and customization.
1. What is Sporniket's protoboard, and when to use it ? 2. What should you know before using Sporniket's protoboard ? 3. How to use Sporniket's protoboard ? 4. Known issues 5. Miscellanous

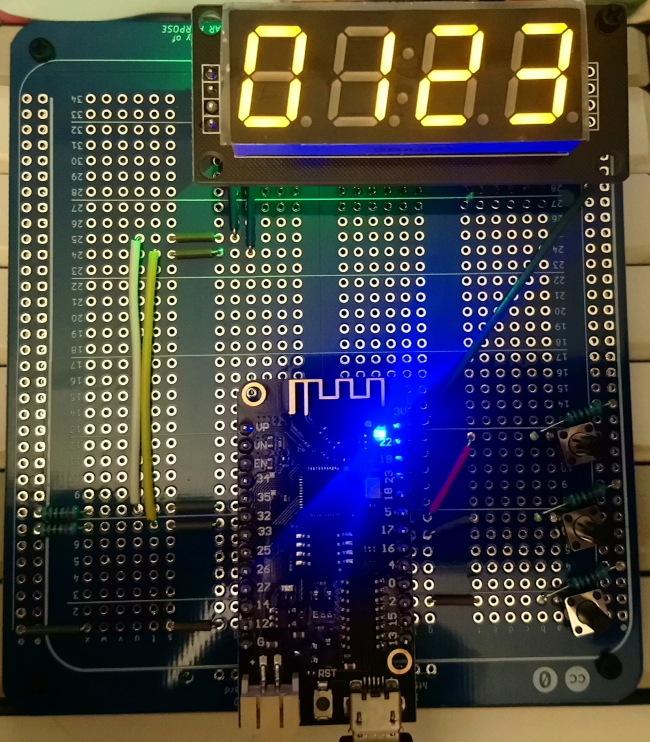

Sporniket's protoboard is a custom prototyping board with 976 points arranged like a breadboard, that fits inside a 10cm×11cm rectangle.
This is a project designed with Kicad, version 7.
Protoboard bill of materials (BOM)
32 components, 28 distinct parts.
