EL-Load-Panel 2.4"/2.8"
About the EL-Load-Panel 2.4"/2.8" PCB
EL-Load-Panel 2.4"/2.8" is an open source PCB design by fietser28, published on GitHub. It is a 2-layer board measuring 127 × 53 mm, with 30 components from 21 distinct parts.
Other key parts include the U_MAX31760AEE+T and U_SN6505BDBVT_SOT-23-6. By type, the board carries 12 resistors, 10 capacitors, 3 connectors, 2 ICs, 1 switch and 1 diode.
From the project

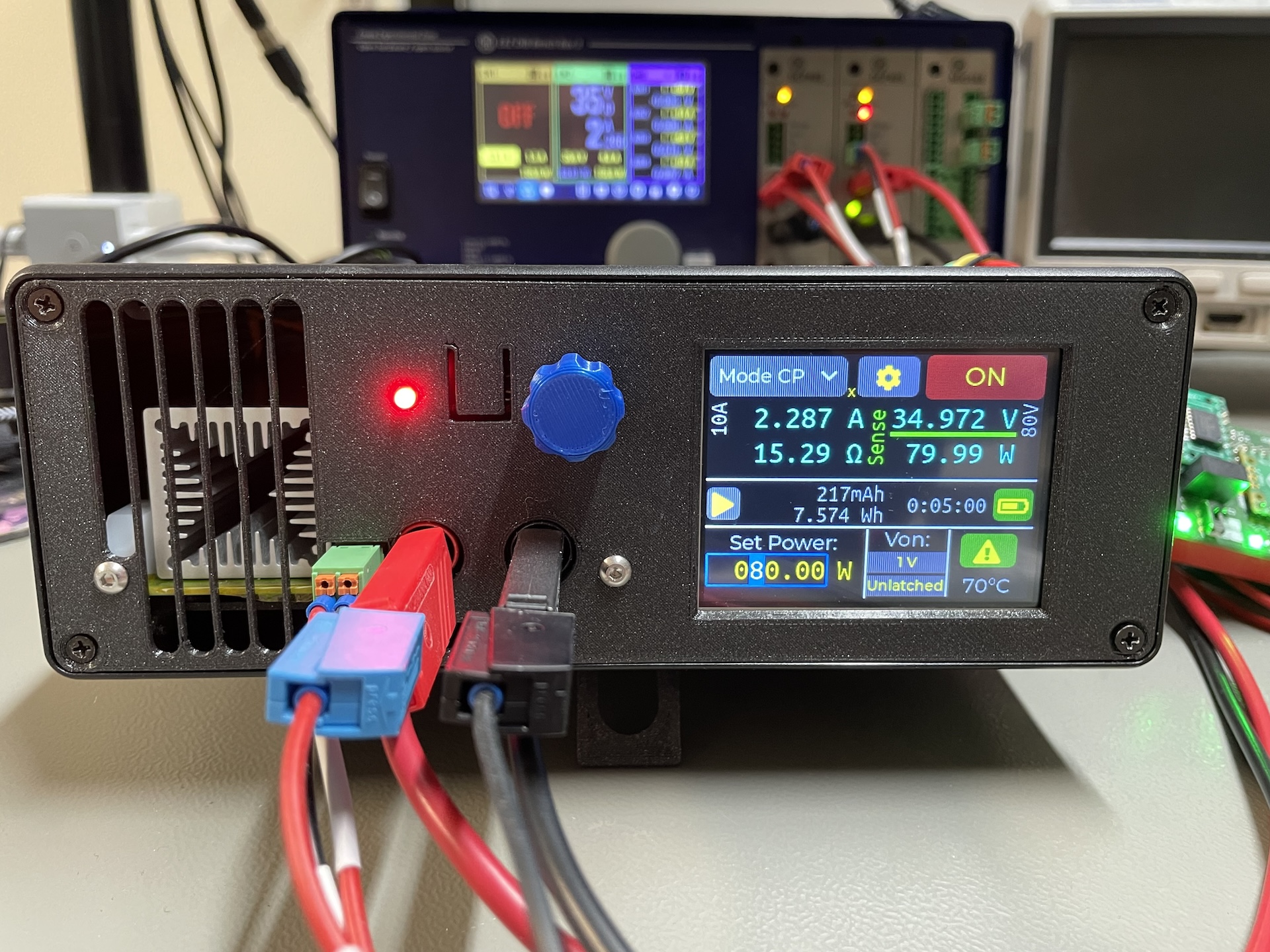

The DCL8010 electronic load module features a DC Electronic Load with several modes and protections. This project is the for the development boards for this project. There is a seperate git project for the firmware.
The DCL8010 electronic load module features a DC Electronic Load with several modes and protections. This project is the for the development boards for this project. There is a seperate git project for the firmware.
Together with [studio] and a BB3 there will be some example dashboards in the near future. For example a application:
Modes: Constant Current (CC), Constant Voltage (CV), Constant Power (CP) and Constand Resistance (CR). CC and CV are implemented in hardware, CP and CR are software controlled and have a slower dynamic response. Limits: Current: 1mA - 10A set and read Voltage…
Main components on the EL-Load-Panel 2.4"/2.8"
EL-Load-Panel 2.4"/2.8" bill of materials (BOM)
30 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | U_MAX31760AEE+T MCP23008-xSO | SOIC-18W_7.5x11.6mm_P1.27mm | U1 |
| 1 | U_SN6505BDBVT_SOT-23-6 USBLC6-2SC6 | SOT-23-6 | U2 |
| 1 | H_PLUG_2P_3.81MM_PCB_VERT Touchscreen | PinSocket_1x11_P2.54mm_Vertical | J1 |
| 1 | H_PLUG_2P_3.81MM_PCB_VERT Conn_02x08_Odd_Even | IDC-Header_2x08_P2.54mm_Vertical | J2 |
| 1 | Conn_01x04_Socket | PhoenixContact_MCV_1,5_4-G-3.81_1x04_P3.81mm_Vertical | J3 |
| 1 | Bourns PEC11R | RotaryEncoder_Bourns_Vertical_PEC12R-3x17F-Sxxxx | ENC1 |
| 1 | SW_SPST_NO_SMD_6X6X5MM ON/OFF | SW_PUSH_6mm_H8.5mm | SW1 |
| 1 | D_MBR0530T LED | LED_D3.0mm | D1 |
| 1 | C_10UF_50V_ELEC_5 1u | C_0805_2012Metric | C1 |
| 1 | 100n | C_0805_2012Metric | C2 |
| 1 | 10n | C_0805_2012Metric | C3 |
| 2 | C_10UF_50V_ELEC_5 10n | C_0805_2012Metric | C4, C7 |
| 1 | 100N 10n | C_0805_2012Metric | C5 |
| 1 | C_10UF_50V_ELEC_5 10u | CP_Elec_5x5.8 | C6 |
| 1 | 100N 10u | CP_Elec_5x5.8 | C8 |
| 2 | 100N 100n | C_0805_2012Metric | C9, C10 |
| 2 | 4K7 10k | R_0805_2012Metric | R1, R2 |
| 7 | 10k | R_0805_2012Metric | R3, R5, R6, R7, R8, R12, R13 |
| 1 | 10K 10k | R_0805_2012Metric | R4 |
| 1 | 3K3 10k | R_0805_2012Metric | R10 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10K 270 | R_0805_2012Metric | R18 |
EL-Load-Panel 2.4"/2.8" design files
The KiCad project lives in the fietser28/EL-Load repository on GitHub; these links point at the commit this page was built from.
EL-Load-Panel 2.4"/2.8": common questions
How big is the EL-Load-Panel 2.4"/2.8" PCB?
The EL-Load-Panel 2.4"/2.8" measures 127 × 53 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EL-Load-Panel 2.4"/2.8"?
30 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EL-Load-Panel 2.4"/2.8" design files?
From the fietser28/EL-Load repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EL-Load-Panel 2.4"/2.8" design in my own project?
The repository has no license, so all rights stay with fietser28. Use it as a reference, and ask the author before reusing the design.
