AVB Ethernet switch with CAN bus

guyg3333·AVB_Ethernet_switch_with_CAN_bus

AVB Ethernet switch with CAN bus PCB layout, top view — open source STM32 board by guyg3333
Simulate this board

About the AVB Ethernet switch with CAN bus PCB

AVB Ethernet switch with CAN bus is an open source STM32 PCB design by guyg3333, published on GitHub. It is a 4-layer board measuring 137 × 55 mm, with 151 components from 28 distinct parts.

Its main chip is the STM32F765VITx, from the STM32 family. Other key parts include the KSZ8567STXI-TR, LINEAR_LDO and SN65HVD234. By type, the board carries 80 capacitors, 31 resistors, 16 connectors, 11 ICs, 5 inductors and 2 crystals.

From the project

Kicad Hardware project of in car network component to manage car traffic and bridge between different interfaces

This PCB was made As part of an Academic engineering final project, the idea behind it is to offer a method of reorganizing information traffic in autonomous vehicles,

The problem I wanted to solve is how to expand the current communication method to support Advanced Drive assist application.

The proposed solution is to build a network built from a combination of CAN bus and Ethernet interfaces, were Ethernet used as backbone.

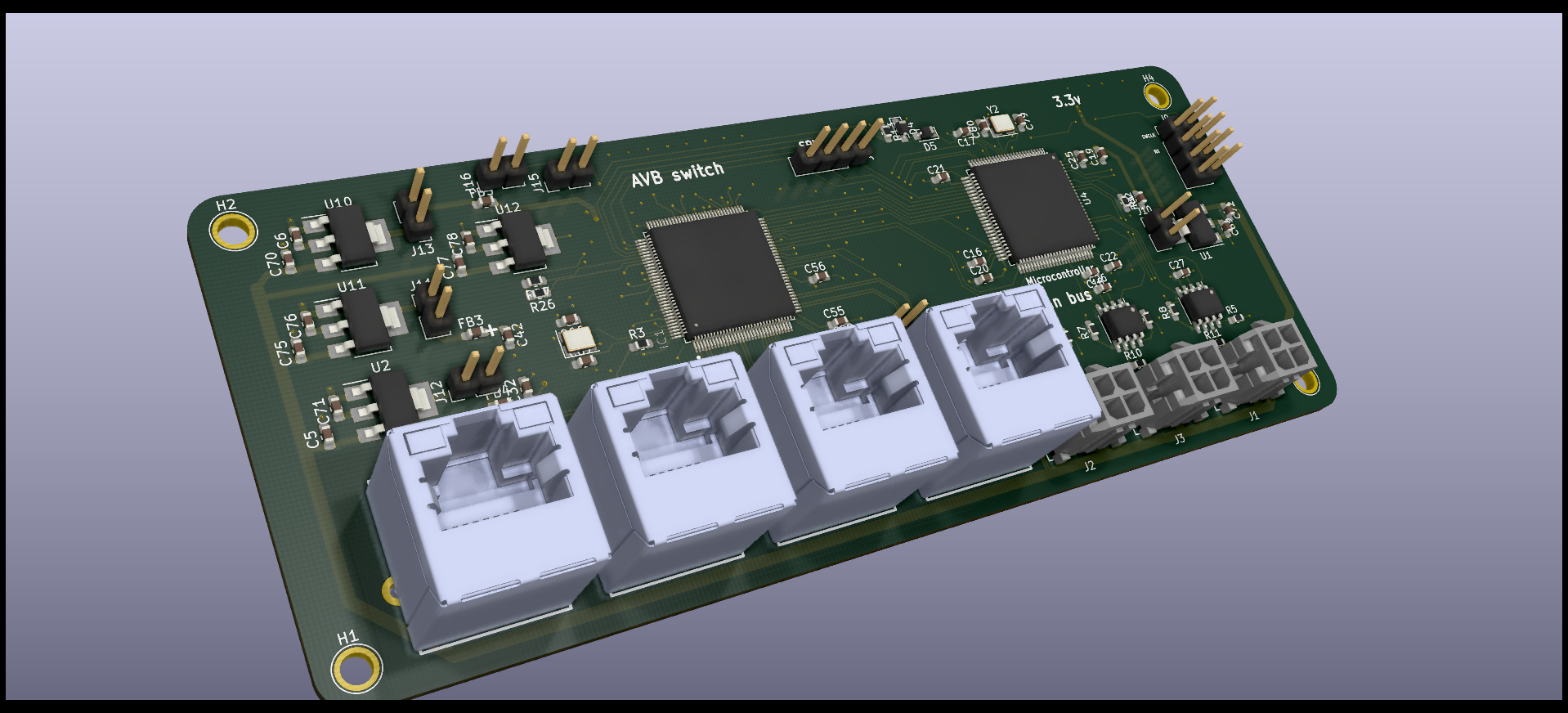

AVB Ethernet switch with CAN bus, from the project README
From the project README

Main components on the AVB Ethernet switch with CAN bus

KSZ8567STXI-TRLINEAR_LDOSTM32F765VITxSN65HVD234

AVB Ethernet switch with CAN bus bill of materials (BOM)

151 components, 28 distinct parts.

QtyPartRefs
1
KSZ8567STXI-TR
IC1
6
LINEAR_LDO
U1, U2, U3, U10, U11, U12
1
STM32F765VITx
U4
3
SN65HVD234
U5, U6, U7
1
Crystal-25Mhz
Y1
1
Crystal-8Mhz
Y2
3
Molex_micro_fit_2X2
J1, J2, J3
4
RJ45_Magjack_Connector
J4, J6, J7, J8
1
Conn_01x04
J5
1
Conn_02x04_Counter_Clockwise
J9
7
Conn_01x02
J10, J11, J12, J13, J14, J15, J16
4
MountingHole
H1, H2, H3, H4
2
D
D4, D5
5
Ferrite_Bead
FB2, FB3, FB4, FB5, FB6
50
0.1uF
C1, C2, C5, C7, C8, C10, C11, C13 +42
4
1000pF
C3, C9, C12, C15
10
10uF
C4, C6, C68, C69, C71, C72, C73, C76 +2
5
2.2uF
C16, C18, C26, C27, C28
1
4.7uF
C19
6
22uF
C29, C32, C42, C52, C60, C63
Show 8 more
QtyPartRefs
2
36pF
C66, C67
2
20pF
C79, C80
8
10k
R1, R4, R5, R6, R7, R8, R9, R13
1
4.7k
R2
1
6.04K 1%
R3
3
120
R10, R11, R12
8
330
R14, R15, R16, R17, R18, R19, R20, R21
10
750
R22, R23, R24, R25, R26, R27, R28, R29 +2

AVB Ethernet switch with CAN bus design files

The KiCad project lives in the guyg3333/AVB_Ethernet_switch_with_CAN_bus repository on GitHub; these links point at the commit this page was built from.

AVB Ethernet switch with CAN bus: common questions

What microcontroller does the AVB Ethernet switch with CAN bus use?

The AVB Ethernet switch with CAN bus is built around the STM32F765VITx, from the STM32 family.

How big is the AVB Ethernet switch with CAN bus PCB?

The AVB Ethernet switch with CAN bus measures 137 × 55 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the AVB Ethernet switch with CAN bus?

151 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the AVB Ethernet switch with CAN bus design files?

From the guyg3333/AVB_Ethernet_switch_with_CAN_bus repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the AVB Ethernet switch with CAN bus design in my own project?

The repository has no license, so all rights stay with guyg3333. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the AVB Ethernet switch with CAN bus without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
