Raspi-Dev-Adapter-Zero

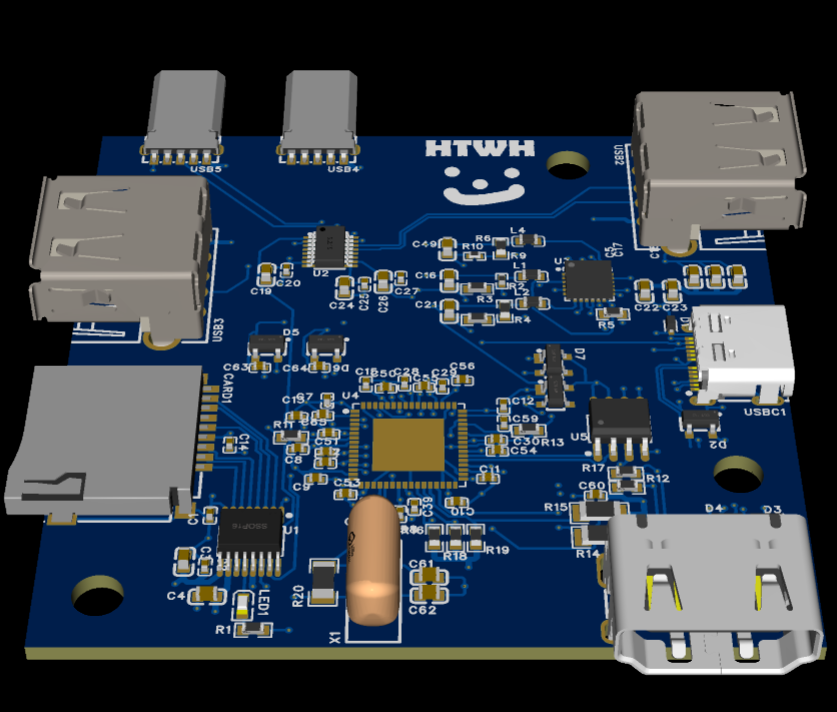

About the Raspi-Dev-Adapter-Zero PCB
Raspi-Dev-Adapter-Zero is an open source PCB design by hackTheWorldHappy, published on GitHub. It is a 6-layer board measuring 60 × 60 mm, with 91 components from 32 distinct parts.
Other key parts include the GL823K-HCY04, SL2.1S, EA3059QDR, MS2130 and W25X05CLSNIG. By type, the board carries 48 capacitors, 18 resistors, 8 diodes, 5 ICs, 3 inductors and 1 crystal.
From the project
Developer Adapter for Raspberry Pis Zero 2
An All-in One Adapter for easier Development of your Raspberry Pi Zero 2.
*You can only buy a minimum of 5 for \~41,53€ (\~$47.80)
Main components on the Raspi-Dev-Adapter-Zero
Raspi-Dev-Adapter-Zero bill of materials (BOM)
91 components, 32 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GL823K-HCY04 GENESYS(创惟) | SSOP-16_L4.9-W3.9-P0.64-LS6.0-BL | U1 |
| 1 | SL2.1S CoreChips(和芯润德) | SSOP-16_L4.6-W2.6-P0.53-LS4.0-BL | U2 |
| 1 | EA3059QDR everanalog(申风) | VQFN-24_L4.0-W4.0-P0.50-TL-EP2.5 | U3 |
| 1 | MS2130 Macrosilicon(宏晶微) | QFN-64_L9.0-W9.0-P0.50-TL-EP5.7 | U4 |
| 1 | W25X05CLSNIG Winbond(华邦) | SOIC-8_L4.9-W3.9-P1.27-LS6.0-BL | U5 |
| 1 | 24MHZ KYX(凯越翔) | CRYSTAL-TH_L10.0-W4.0-P5.00-D0.5 | X1 |
| 1 | — SHOU HAN(首韩) | TF-SMD_TF-PUSH | CARD1 |
| 1 | HDMI-001S XUNPU(讯普) | HDMI-SMD_HDMI-001S | USB1 |
| 2 | — SHOU HAN(首韩) | USB-A-TH_AF-WJDG | USB2, USB3 |
| 2 | U-G-M5WS-W-01 韩国韩荣 | MICRO-USB-SMD_U-G-M5WS-W-01 | USB4, USB5 |
| 1 | 1054500101 MOLEX | USB-C-SMD_TYPE-C-USB-18 | USBC1 |
| 1 | XL-1608UGC-04 XINGLIGHT(成兴光) | LED0603-RD_GREEN | LED1 |
| 1 | LESD5D5.0CT1G UMW(友台半导体) | SOD-523_L1.2-W0.8-LS1.6-BI | D1 |
| 5 | PRTR5V0U2X UMW(友台半导体) | SOT-143_L2.9-W1.3-P1.92-LS2.3-BL | D2, D5, D6, D7, D8 |
| 2 | RCLAMP0524PATCT SEMTECH | SLP2510P8_L2.5-W1.0-P0.50-BL | D3, D4 |
| 3 | 2.2UH 2.2uH FH(风华) | L0603 | L1, L2, L4 |
| 33 | 100NF 100nF SAMSUNG(三星) | C0402 | C1, C2, C6, C7, C8, C9, C10, C11 +25 |
| 2 | 10UF 10uF SAMSUNG(三星) | C0603 | C3, C4 |
| 7 | 22UF 22uF SAMSUNG(三星) | C0603 | C5, C16, C17, C21, C22, C23, C49 |
| 4 | 1UF 1uF SAMSUNG(三星) | C0603 | C18, C19, C24, C26 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 22PF 22pF SAMSUNG(三星) | C0603 | C61, C62 |
| 1 | 1k? FOJAN(富捷) | R0603 | R1 |
| 1 | RC0402FR-07680KL 680k? YAGEO(国巨) | R0402 | R2 |
| 3 | FRC0603F1503TS 150k? FOJAN(富捷) | R0603 | R3, R6, R9 |
| 1 | FRC0603F4703TS 470k? FOJAN(富捷) | R0603 | R4 |
| 1 | 100k? FOJAN(富捷) | R0603 | R5 |
| 1 | 0402WGF1803TCE 180k? UNI-ROYAL(厚声) | R0402 | R10 |
| 1 | 0603WAF2000T5E 200? UNI-ROYAL(厚声) | R0603 | R11 |
| 5 | 47k? FOJAN(富捷) | R0603 | R12, R16, R17, R18, R19 |
| 1 | 10? FOJAN(富捷) | R0603 | R13 |
| 2 | 1206W4F1001T5E 1k? UNI-ROYAL(厚声) | R1206 | R14, R15 |
| 1 | 1206W4F1004T5E 1M? UNI-ROYAL(厚声) | R1206 | R20 |
Raspi-Dev-Adapter-Zero design files
The KiCad project lives in the hackTheWorldHappy/Raspi-Dev-Adapter-Zero repository on GitHub; these links point at the commit this page was built from.
Raspi-Dev-Adapter-Zero: common questions
How big is the Raspi-Dev-Adapter-Zero PCB?
The Raspi-Dev-Adapter-Zero measures 60 × 60 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the Raspi-Dev-Adapter-Zero?
91 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Raspi-Dev-Adapter-Zero design files?
From the hackTheWorldHappy/Raspi-Dev-Adapter-Zero repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Raspi-Dev-Adapter-Zero design in my own project?
The repository has no license, so all rights stay with hackTheWorldHappy. Use it as a reference, and ask the author before reusing the design.
