SAO Modem v1.69bis
About the SAO Modem v1.69bis PCB
SAO Modem v1.69bis is an open source PCB design by hamster, published on GitHub under the MIT license. It is a 2-layer board measuring 43.9 × 21.5 mm, with 16 components from 11 distinct parts.
By type, the board carries 8 resistors, 6 diodes, 1 transistor and 1 crystal.
From the project
defcon 30 SAOs

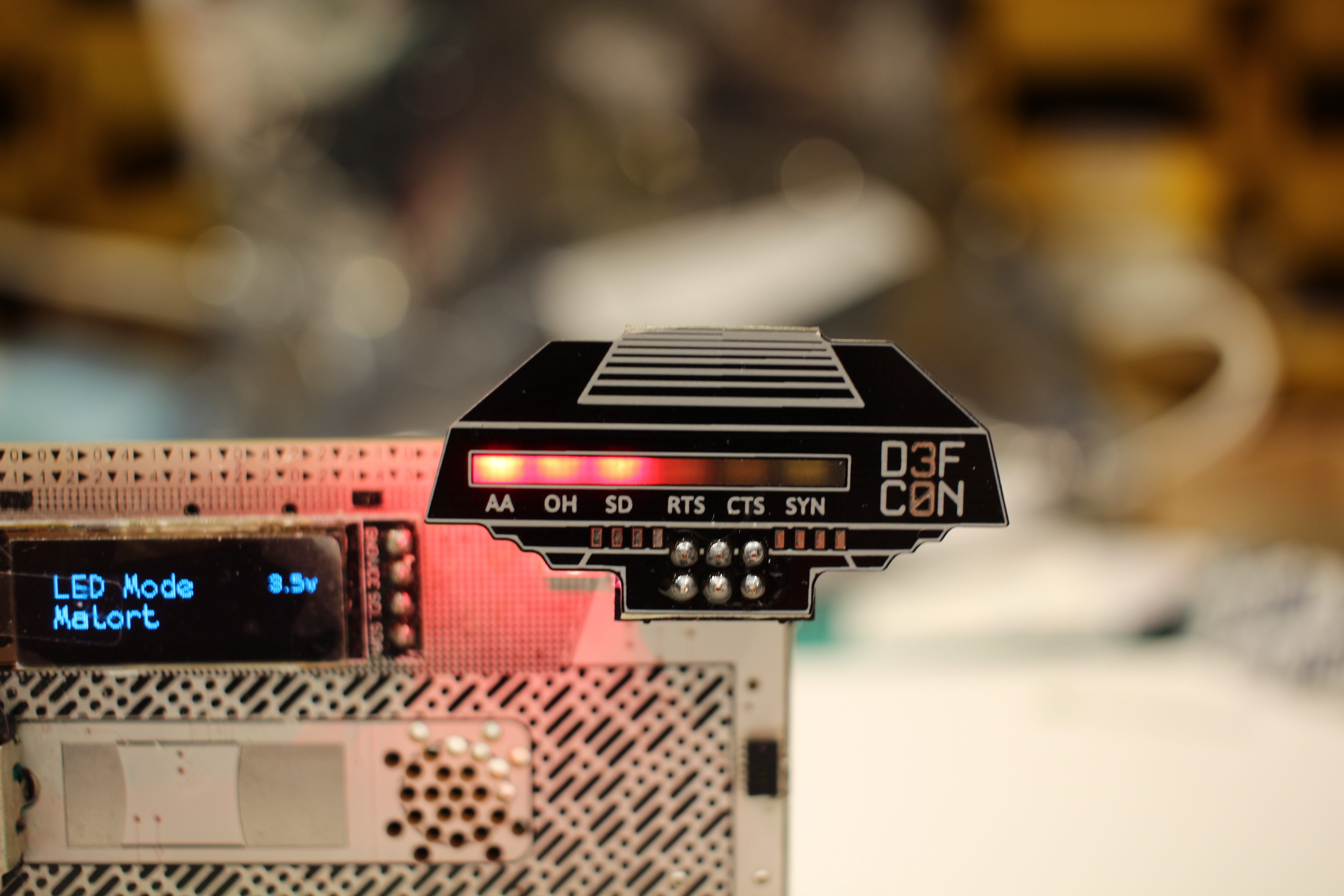

This SAO is designed to add some blinky lights to your badge, calling back to the days of an external Courier modem screaming away on the internet.
- AA - Power, lights when 3.3v is present - OH - Flashes on I2C SCL activity - SD - Flashes on I2C SDA activity - RTS - Flashes on GPIO1 activity - CTS - Flashes on GPIO2 activity - SYN - Connected to a free pad on the back, you choose what it does
SAO Modem v1.69bis bill of materials (BOM)
16 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Q_Dual_PMOS_S1G1D2S2G2D1 | SOIC-8_3.9x4.9mm_P1.27mm | Q1 |
| 1 | Badgelife_sao_connector_v169bis | Badgelife-Shitty-v1.69bis | X1 |
| 1 | AA | LED_0805_2012Metric | D1 |
| 1 | OH | LED_0805_2012Metric | D2 |
| 1 | SD | LED_0805_2012Metric | D3 |
| 1 | RTS | LED_0805_2012Metric | D4 |
| 1 | CTS | LED_0805_2012Metric | D5 |
| 1 | SYN | LED_0805_2012Metric | D6 |
| 6 | 47R | R_0603_1608Metric | R1, R2, R3, R4, R5, R6 |
| 1 | 4.7k | R_0603_1608Metric | R7 |
| 1 | 10k | R_0603_1608Metric | R8 |
SAO Modem v1.69bis design files
The KiCad project lives in the hamster/defcon30 repository on GitHub; these links point at the commit this page was built from.
- Layoutmodem/modem.kicad_pcb
- Schematicmodem/modem.kicad_sch
- BOMmodem/modem-BOM.xlsx
SAO Modem v1.69bis: common questions
How big is the SAO Modem v1.69bis PCB?
The SAO Modem v1.69bis measures 43.9 × 21.5 mm, has 2 copper layers and is 1.2 mm thick.
How many components are on the SAO Modem v1.69bis?
16 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SAO Modem v1.69bis design files?
From the hamster/defcon30 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SAO Modem v1.69bis design in my own project?
Yes, under the terms of its MIT license, which hamster chose for the repository.
