TK2KB PCB layout, top view — open source board by hkzlab

About the TK2KB PCB

TK2KB is an open source PCB design by hkzlab, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 238.8 × 71.1 mm, with 61 components from 55 distinct parts.

By type, the board carries 57 switches, 3 connectors and 1 diode.

It belongs with the keyboards designs in this gallery.

From the project

Test keyboard for the TK2000 computer

Any use of this project is under your own responsibility. You will be responsible of checking the correct construction and functionality of your board. By using this project You will agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.

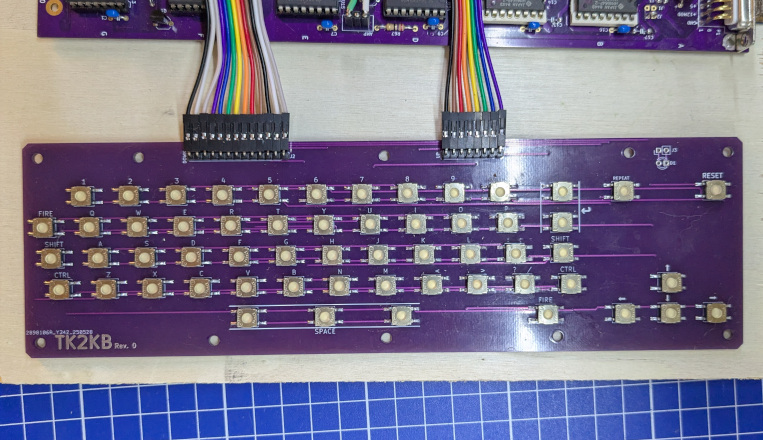

I recently built for myself a TK2000 clone, but I don't have a keyboard to use it so, before making an expensive mechanical one, I decided to test the design making one with some cheap SMD switches I had around.

TK2KB, from the project README
From the project README

TK2KB bill of materials (BOM)

61 components, 55 distinct parts.

QtyPartRefs
1
UP
J1
1
DOWN
J2
1
Power Connector
J3
1
RESET
SW1
1
REPEAT
SW2
3
SPACE
SW3, SW4, SW5
1
2
SW6
1
3
SW7
1
4
SW8
1
5
SW9
1
6
SW10
1
7
SW11
1
8
SW12
1
9
SW13
1
0
SW14
1
1
SW15
1
Q
SW16
1
W
SW17
1
E
SW18
1
R
SW19
Show 35 more
QtyPartRefs
1
T
SW20
1
Y
SW21
1
U
SW22
1
I
SW23
1
O
SW24
1
P
SW25
2
FIRE
SW26, SW27
1
UP
SW28
1
DOWN
SW29
2
RETURN
SW30, SW56
2
CTRL
SW31, SW57
1
A
SW32
1
S
SW33
1
D
SW34
1
F
SW35
1
G
SW36
1
H
SW37
1
J
SW38
1
K
SW39
1
L
SW40
1
: ;
SW41
1
LEFT
SW42
1
RIGHT
SW43
2
SHIFT
SW44, SW45
1
Z
SW46
1
X
SW47
1
C
SW48
1
V
SW49
1
B
SW50
1
N
SW51
1
M
SW52
1
, <
SW53
1
. >
SW54
1
? /
SW55
1
Power LED
D1

TK2KB design files

The KiCad project lives in the hkzlab/TK2KB repository on GitHub; these links point at the commit this page was built from.

TK2KB: common questions

How big is the TK2KB PCB?

The TK2KB measures 238.8 × 71.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TK2KB?

61 components, from 55 distinct parts. The full bill of materials is listed on this page.

Where can I download the TK2KB design files?

From the hkzlab/TK2KB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TK2KB design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
