Amstrad PPC ISA Extension Board
An open-hardware KiCad 8 design for an external-mount, internally-powered 3-slot XT-class (8-bit) ISA expansion board for the Amstrad PPC 512 and PPC 640 portable PCs.

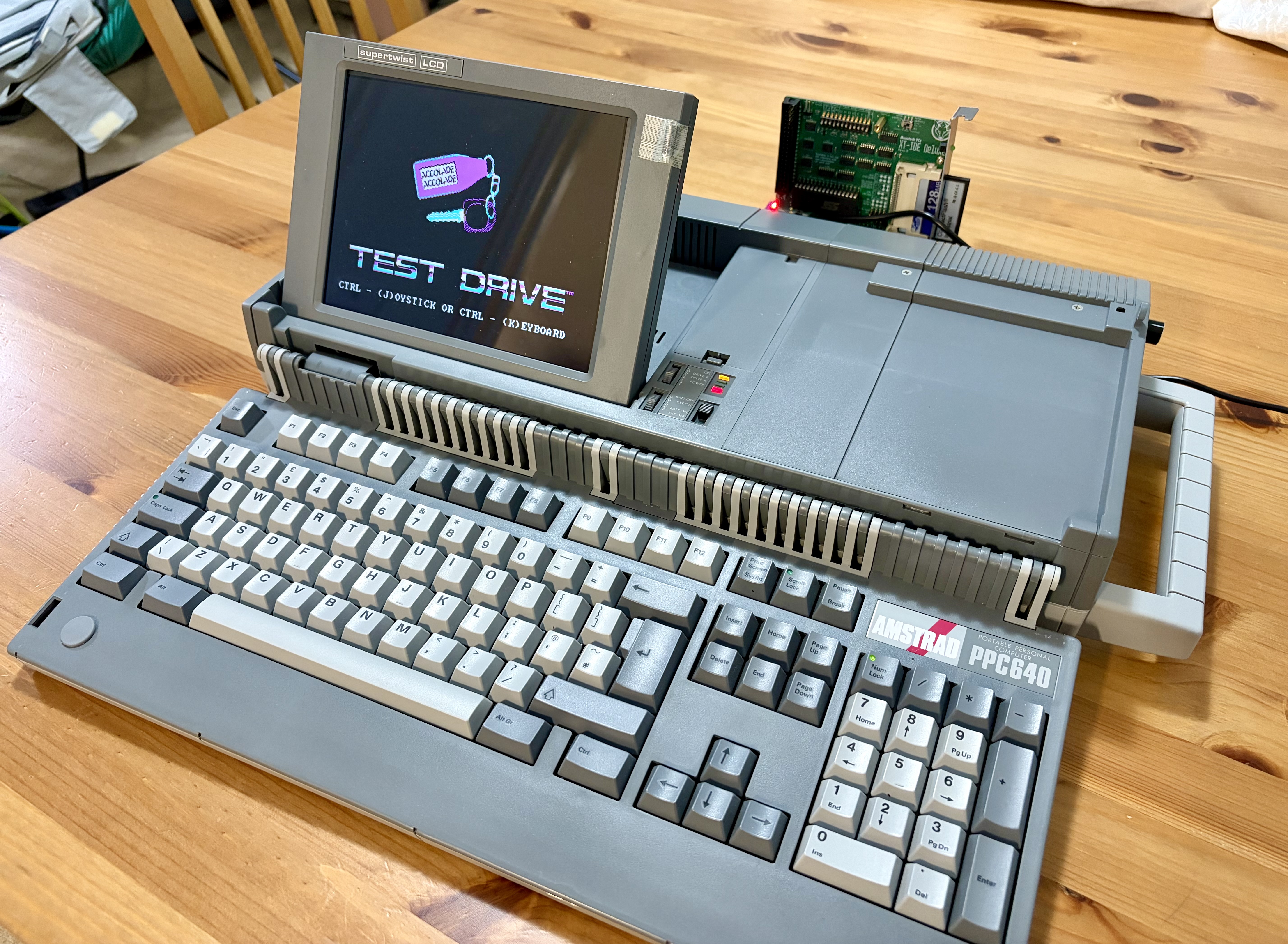

The PPC is the 1988-era Amstrad luggable that ships with a CMOS-level expansion connector (DB25 + DB37) on its back. Amstrad sold an external "Expansion Box" that was meant to power the PPC and add peripheral slots. This project inverts the original topology: it takes power from the PPC's own PSU and gives you three standard XT 8-bit ISA slots in a compact board that clips onto the back of the machine via the two DB connectors…
Main components on the Amstrad isa
Amstrad isa bill of materials (BOM)
18 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74HC244 | DIP-20_W8.89mm_SMDSocket_LongPads | U1, U2 |
| 1 | DB25 Male | DSUB-25_Pins_EdgeMount_P2.77mm | J1 |
| 1 | DB37 Male | DSUB-37_Pins_EdgeMount_P2.77mm | J2 |
| 3 | ISA 8-bit slot | ISA_8Bit_Slot | J3, J4, J5 |
| 1 | 10K 10k | R_Array_SIP9 | RR1 |
| 1 | POWER | LED_0805_2012Metric | D1 |
| 2 | 100NF 100nF | C_0805_2012Metric | C1, C2 |
| 3 | 100NF 10uF | CP_EIA-3216-12_Kemet-S_HandSolder | C3, C4, C5 |
| 3 | 10UF 10uF | CP_EIA-3216-12_Kemet-S_HandSolder | C6, C7, C8 |
| 1 | 470 | R_0805_2012Metric | R1 |
