Squiggle lopro
About the Squiggle lopro PCB

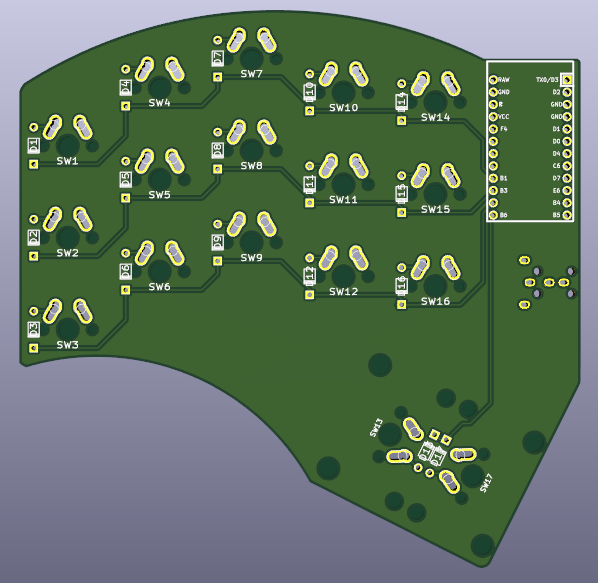

Squiggle lopro is an open source PCB design by ibnuda, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 111.7 × 108.2 mm, with 36 components from 5 distinct parts.
Other key parts include the TRRS and ProMicro. By type, the board carries 17 switches, 17 diodes and 2 ICs.
It belongs with the keyboards designs in this gallery.
From the project
It's a keyboard family which based on my circumstances, preferences, and observed usages.
It's a keyboard family which based on my circumstances, preferences, and observed usages.
- 5 columns per hand. My right pinky is almost useless. - At most 3 keys for each side's thumb row. My right thumb key is almost useless. - No numrow. It's harder and more cumbersome to use than a numpad on a layer. - Split. Typing on single flat keyboard hurts my arms in a lot of use cases. - Symmetric. Personal preferences.
Main components on the Squiggle lopro
Squiggle lopro bill of materials (BOM)
36 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TRRS | trrs | U1 |
| 1 | ProMicro | promicro | U2 |
| 15 | choc | choc-1 | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +7 |
| 2 | choc | choc-2 | SW13, SW17 |
| 17 | D | diode | D1, D2, D3, D4, D5, D6, D7, D8 +9 |
Squiggle lopro design files
The KiCad project lives in the ibnuda/Squiggle repository on GitHub; these links point at the commit this page was built from.
Squiggle lopro: common questions
How big is the Squiggle lopro PCB?
The Squiggle lopro measures 111.7 × 108.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Squiggle lopro?
36 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Squiggle lopro design files?
From the ibnuda/Squiggle repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Squiggle lopro design in my own project?
Yes, under the terms of its GPL-3.0 license, which ibnuda chose for the repository.
