Top

indianpojken·ebbe34·plate/top/top.kicad_pcb

Top PCB layout, top view — open source board by indianpojken
Simulate this board

About the Top PCB

Top is an open source PCB design by indianpojken, published on GitHub. It is a 2-layer board measuring 249.3 × 113 mm, with 34 components from 1 distinct parts.

It belongs with the keyboards and iot & wireless designs in this gallery.

From the project

Wireless 34-key unibody keyboard w/ hotswappable choc v1 & v2 switches

ebbe34 is a minimalist, ergonomic 34-key keyboard designed with portability in mind. It features a unibody layout, hot-swappable sockets compatible with Kailh Choc V1 and V2 low-profile switches, and nice!view display — powered by the nice!nano controller.

- 1× nice!nano V2 - 1× nice!view display - 1× Li-Po Battery 301230 (110 mAh) - 1× 2-pin THT Reset Switch - 34× Kailh Choc V1 or V2 Hotswap Sockets - 34× 1N4148W SMD Diodes - 1x MSK12C02 Power Switch

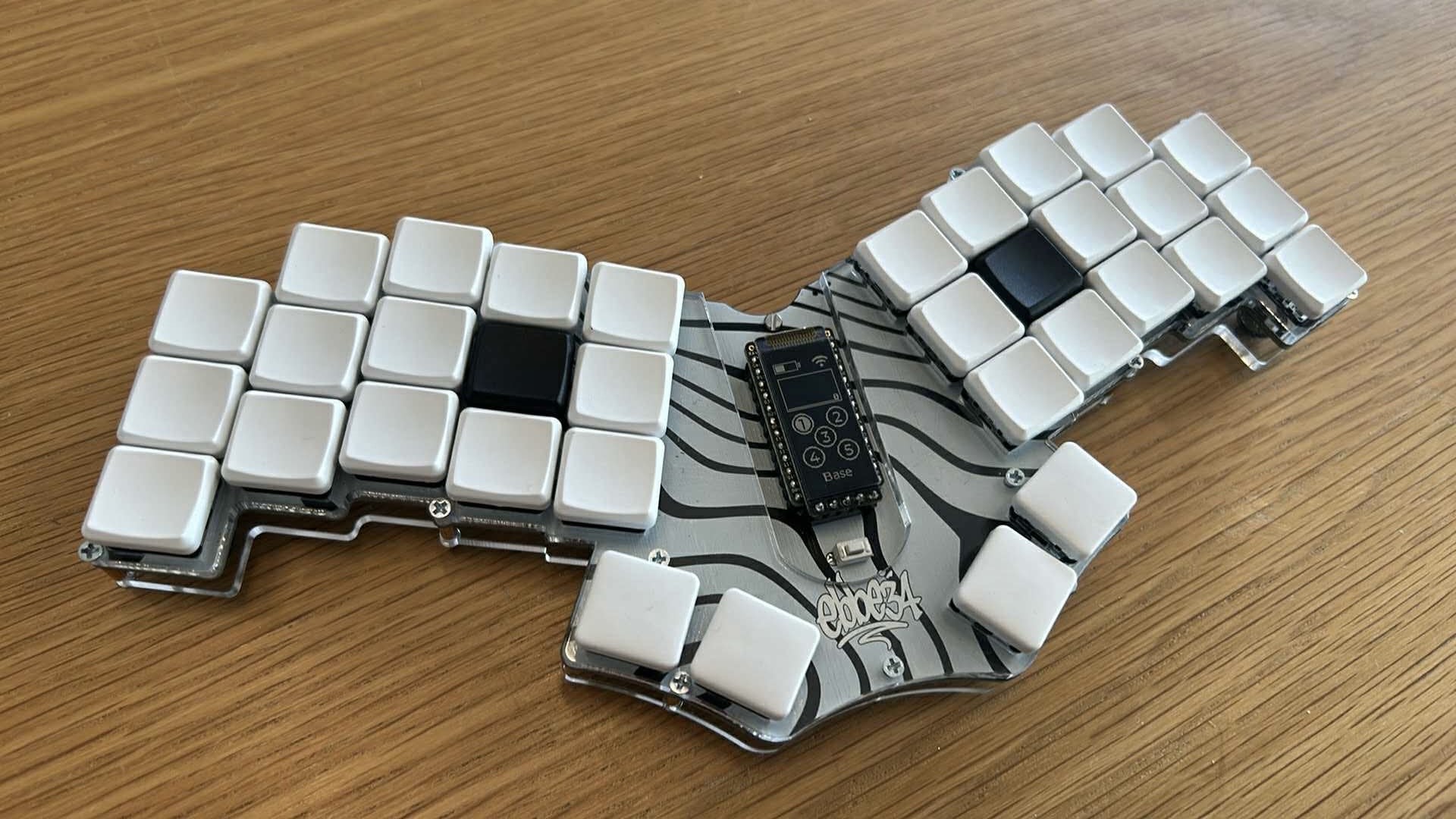

Top, from the project README
From the project README

Top bill of materials (BOM)

34 components, 1 distinct parts.

QtyPartRefs
34
Keyswitch
S1, S2, S3, S4, S5, S6, S7, S8 +26

Top design files

The KiCad project lives in the indianpojken/ebbe34 repository on GitHub; these links point at the commit this page was built from.

Top: common questions

How big is the Top PCB?

The Top measures 249.3 × 113 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Top?

34 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the Top design files?

From the indianpojken/ebbe34 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Top design in my own project?

The repository has no license, so all rights stay with indianpojken. Use it as a reference, and ask the author before reusing the design.
