Adv

inestvan·adv·hw/adv7280m-csi2.kicad_pcb

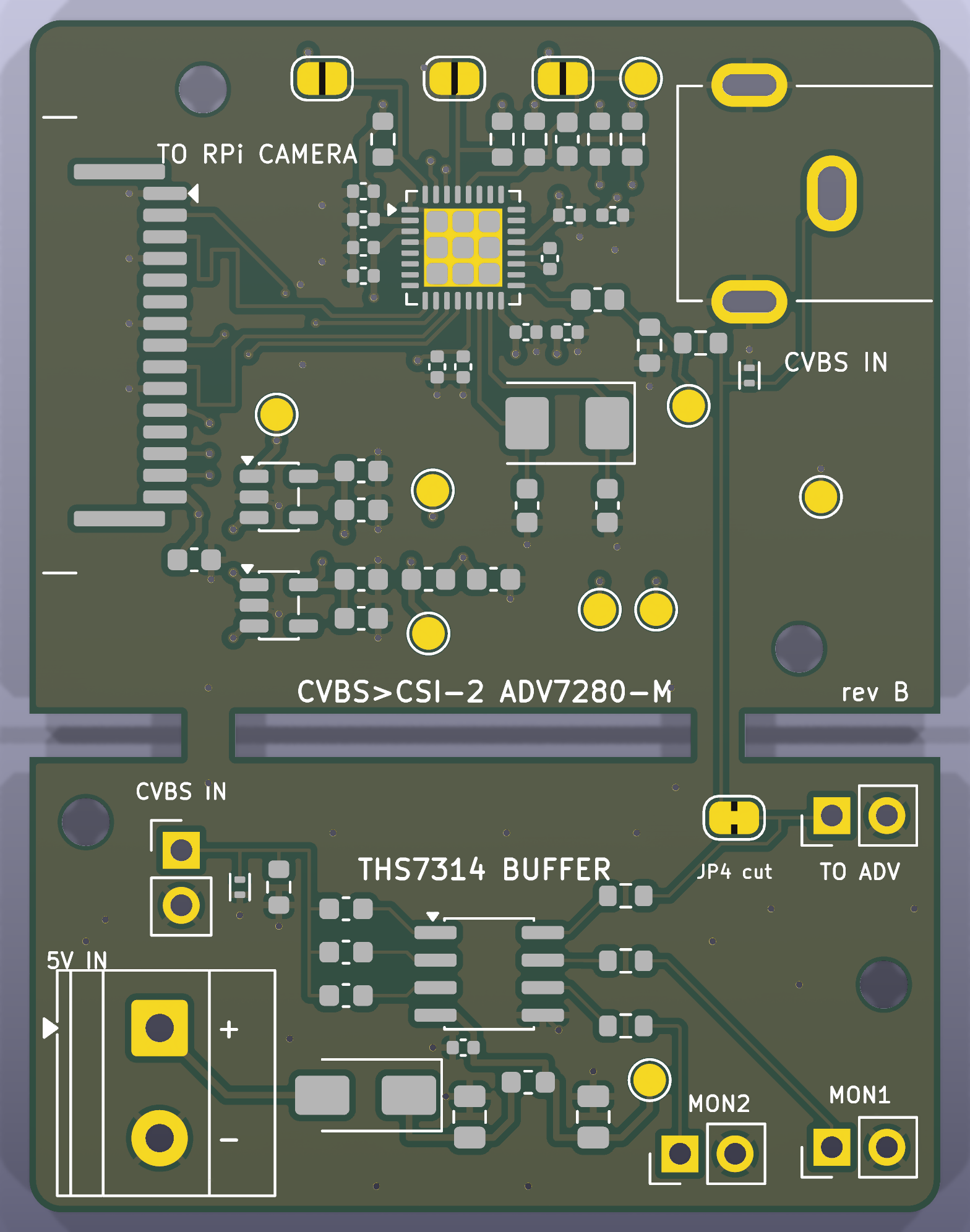

Adv PCB layout, top view — open source board by inestvan

About the Adv PCB

Adv is an open source PCB design by inestvan, published on GitHub. It is a 4-layer board measuring 42 × 55 mm, with 59 components from 33 distinct parts.

Other key parts include the ADV7280WBCPZ-M, AP2112K-1.8TRG1 and THS7314DR. By type, the board carries 27 capacitors, 11 resistors, 7 connectors, 4 ICs, 4 jumpers and 3 diodes.

From the project

Плата на Analog Devices ADV7280WBCPZ-M (LFCSP-32): композитный видеосигнал (PAL/NTSC/SECAM, разъём RCA) преобразуется в поток MIPI CSI-2 (1 лента + клок) и подаётся на разъём камеры Raspberry Pi 4. В той же заготовке — отделяемая секция с буфером THS7314: один вход CVBS раздаётся на декодер и два монитора (питание секции 5 В от внешнего DC-DC через винтовую клемму). Работает со штатным overlay ядра Raspberry Pi без правок:

Main components on the Adv

ADV7280WBCPZ-M AP2112K-1.8TRG1 THS7314DR

Adv bill of materials (BOM)

59 components, 33 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	ADV7280WBCPZ-M Analog Devices	QFN-32-1EP_5x5mm_P0.5mm_EP3.6x3.6mm	U1
2	AP2112K-1.8TRG1 AP2112K-1.8	SOT-23-5	U2, U3
1	THS7314DR Texas Instruments	SOIC-8_3.9x4.9mm_P1.27mm	U5
1	X50322863636MSB2GI 28.63636MHz	Crystal_SMD_5032-2Pin_5.0x3.2mm	Y1
1	SFW15R-1STE1LF RPi_CSI_15pin	Amphenol_SFW15R-1STE1LF	J1
1	PSG01546 or equivalent CVBS_RCA	RCA_Multicomp_PSG01546_Horizontal	J2
1	KF301-5.0-2P 5V_IN	TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal	J4
1	PZ254V-11-02P CVBS_IN_HDR	PinHeader_1x02_P2.54mm_Vertical	J5
1	PZ254V-11-02P MON1_HDR	PinHeader_1x02_P2.54mm_Vertical	J6
1	PZ254V-11-02P MON2_HDR	PinHeader_1x02_P2.54mm_Vertical	J7
1	PZ254V-11-02P CVBS_BUF_HDR	PinHeader_1x02_P2.54mm_Vertical	J8
1	ALSB>GND	SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm	JP1
1	CAM_GPIO>RST	SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm	JP2
1	CAM_GPIO>PWRDWN	SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm	JP3
1	BUF>ADV	SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm	JP4
2	TPD1E10B06	TI_X1SON-2_DPY0002A_1.0x0.6mm	D1, D3
1	SS14	D_SMA	D2
2	BLM18PG121SN1D 120R@100MHz	L_0603_1608Metric	FB1, FB2
1	100NF 100nF	C_0603_1608Metric	C1
2	27PF 27pF	C_0603_1608Metric	C2, C3

Show 13 more

Qty	Part	Footprint	Refs
7	100NF 100nF	C_0402_1005Metric	C4, C13, C15, C17, C19, C21, C26
1	4.7UF 4.7uF	C_0603_1608Metric	C5
4	10UF 10uF	C_0603_1608Metric	C6, C8, C10, C11
2	1UF 1uF	C_0603_1608Metric	C7, C9
5	10NF 10nF	C_0402_1005Metric	C14, C16, C18, C20, C22
3	100nF	C_0603_1608Metric	C23, C24, C25
1	10UF 10uF	C_0805_2012Metric	C27
1	22UF 22uF	C_0805_2012Metric	C28
1	22	R_0603_1608Metric	R1
1	51	R_0603_1608Metric	R2
3	10K 10k	R_0603_1608Metric	R3, R4, R5
2	4.7K 4.7k	R_0603_1608Metric	R6, R7
4	75	R_0603_1608Metric	R8, R9, R10, R11

Adv design files

The KiCad project lives in the inestvan/adv repository on GitHub; these links point at the commit this page was built from.

Adv: common questions

How big is the Adv PCB?

The Adv measures 42 × 55 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Adv?

59 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Adv design files?

From the inestvan/adv repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Adv design in my own project?

The repository has no license, so all rights stay with inestvan. Use it as a reference, and ask the author before reusing the design.
