About the TomyTutorKeyboard PCB
TomyTutorKeyboard is an open source PCB design by jedimatt42, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 297.2 × 127 mm, with 58 components from 6 distinct parts.
It belongs with the keyboards designs in this gallery.
From the project
A PCBoard design for replacing Tomy Tutor Computer keyboard.
gerbers - folder with the rendered gerbers tomytutorkeyboard.scad - OpenSCAD model design file for framing tomytutor_keyboard.stl - STL file output ready for your favority slicer

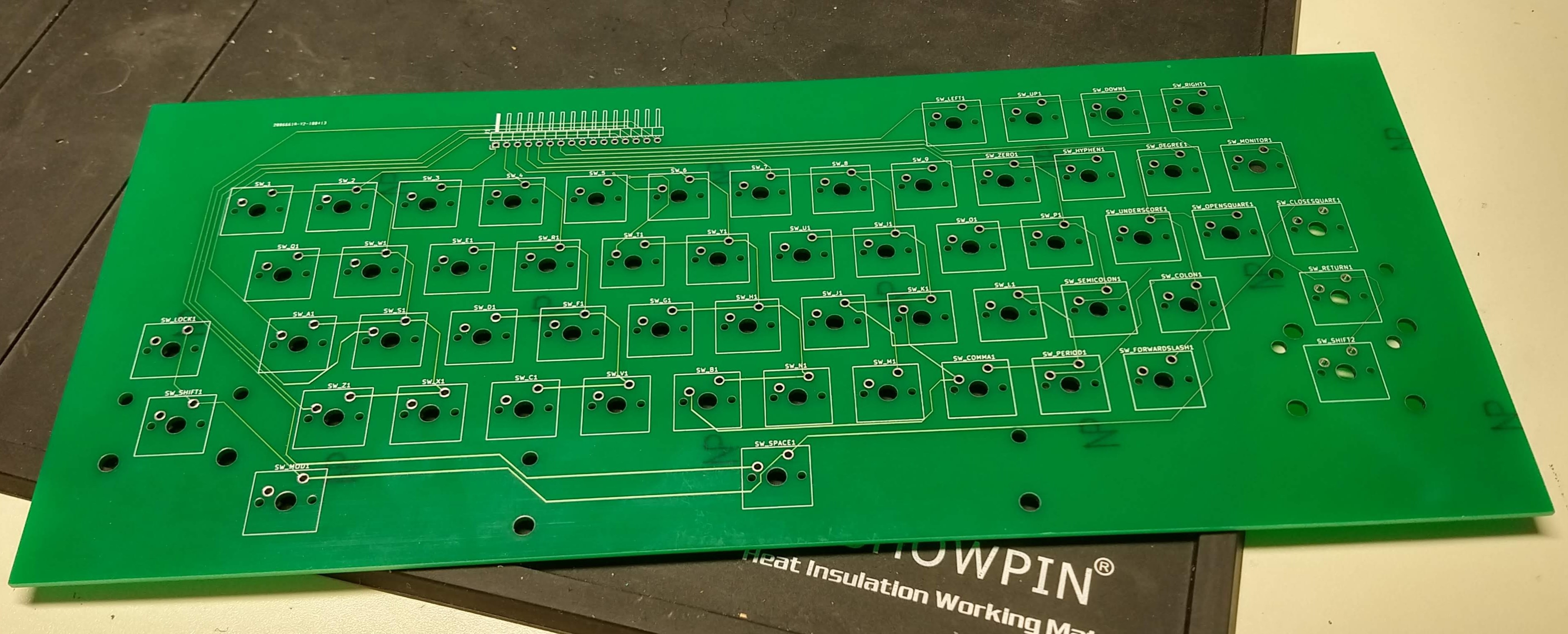

You'll need the bare pcb, see the design files here in this repo.
The pcboard footprint is specific to these switches. But there are some variety that have the same footprint.
ebay stabalizers&cust=1SW22173KD939402H&unptid=b421f75c-4e70-11e8-8929-441ea1472df0&t=&cal=b3a4b6dd50c6e&calc=b3a4b6dd50c6e&calf=b3a4b6dd50c6e&unp_tpcid=email-receipt-auction-payment&page=main:email&pgrp=main:email&e=op&mchn=em&s=ci&mail=sys)

TomyTutorKeyboard bill of materials (BOM)
58 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x16 | Pin_Header_Angled_1x16_Pitch2.54mm | J1 |
| 52 | SW_Push_LED | SW_Cherry_MX1A_1.00u_PCB | SW_1, SW_2, SW_3, SW_4, SW_5, SW_6, SW_7, SW_8 +44 |
| 1 | SW_Push_LED | SW_Cherry_MX1A_1.75u_PCB | SW_LOCK1 |
| 2 | SW_Push_LED | SW_Cherry_MX1A_2.25u_PCB | SW_RETURN1, SW_SHIFT1 |
| 1 | SW_Push_LED | SW_Cherry_MX1A_2.75u_PCB | SW_SHIFT2 |
| 1 | SW_Push_LED | SW_Cherry_MX1A_6.25u_PCB | SW_SPACE1 |
TomyTutorKeyboard design files
The KiCad project lives in the jedimatt42/TomyTutorKeyboard repository on GitHub; these links point at the commit this page was built from.
- LayoutTutorKeyboard.kicad_pcb
TomyTutorKeyboard: common questions
How big is the TomyTutorKeyboard PCB?
The TomyTutorKeyboard measures 297.2 × 127 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TomyTutorKeyboard?
58 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the TomyTutorKeyboard design files?
From the jedimatt42/TomyTutorKeyboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the TomyTutorKeyboard design in my own project?
It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
