Usbc pal

jessfraz·usbc-pal·usb-c/usb-c.kicad_pcb

Usbc pal PCB layout, top view — open source STM32 board by jessfraz

About the Usbc pal PCB

Usbc pal is an open source STM32 PCB design by jessfraz, published on GitHub. It is a 2-layer board measuring 76.2 × 15.2 mm, with 33 components from 21 distinct parts.

Its main chip is the STM32F072C8Ux, from the STM32 family. Other key parts include the FUSB302B11MPX and AP2204R-3.3. By type, the board carries 11 capacitors, 9 resistors, 4 diodes, 3 ICs, 3 connectors and 2 transistors.

From the project

This is a slighly modified version of pd-buddy.

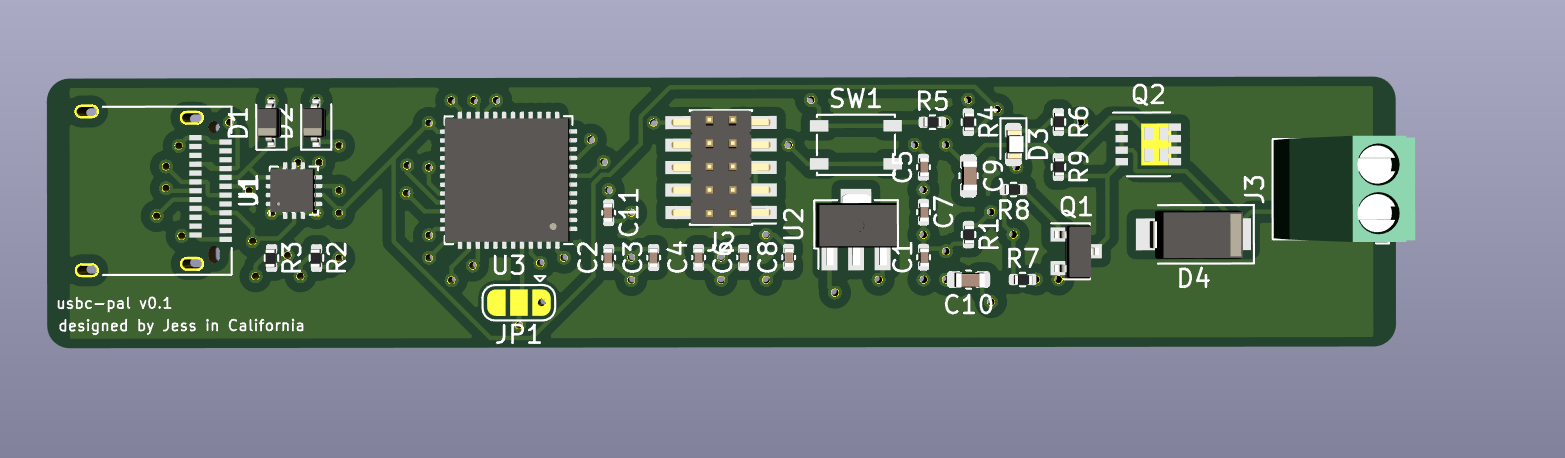

Usbc pal, from the project README
From the project README

Main components on the Usbc pal

FUSB302B11MPXAP2204R-3.3STM32F072C8Ux

Usbc pal bill of materials (BOM)

33 components, 21 distinct parts.

QtyPartRefs
1
FUSB302B11MPX
U1
1
AP2204R-3.3
U2
1
STM32F072C8Ux
U3
1
MMBT3904
Q1
1
DMP3017SFG
Q2
1
USB_C
J1
1
SWD
J2
1
OUTPUT
J3
1
SWITCH
SW1
1
MM325V6T1G
D1
1
MM3Z5V6T1G
D2
1
STATUS_LED
D3
1
B140-E3
D4
7
0.1μF
C1, C2, C3, C4, C5, C6, C11
2
1μF
C7, C8
1
1μF
C9
1
2.2μF
C10
3
10kΩ
R1, R5, R7
4
2kΩ
R2, R3, R4, R8
1
220kΩ
R6
Show 1 more
QtyPartRefs
1
100kΩ
R9

Usbc pal design files

The KiCad project lives in the jessfraz/usbc-pal repository on GitHub; these links point at the commit this page was built from.

Usbc pal: common questions

What microcontroller does the Usbc pal use?

The Usbc pal is built around the STM32F072C8Ux, from the STM32 family.

How big is the Usbc pal PCB?

The Usbc pal measures 76.2 × 15.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Usbc pal?

33 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the Usbc pal design files?

From the jessfraz/usbc-pal repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Usbc pal design in my own project?

The repository has no license, so all rights stay with jessfraz. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Usbc pal without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
