SofleKeyboardTopPlate
About the SofleKeyboardTopPlate PCB
SofleKeyboardTopPlate is an open source PCB design by josefadamcik, published on GitHub under the MIT license. It is a 2-layer board measuring 143.4 × 111.8 mm, with 5 components from 1 distinct parts.
It belongs with the keyboards designs in this gallery.
From the project

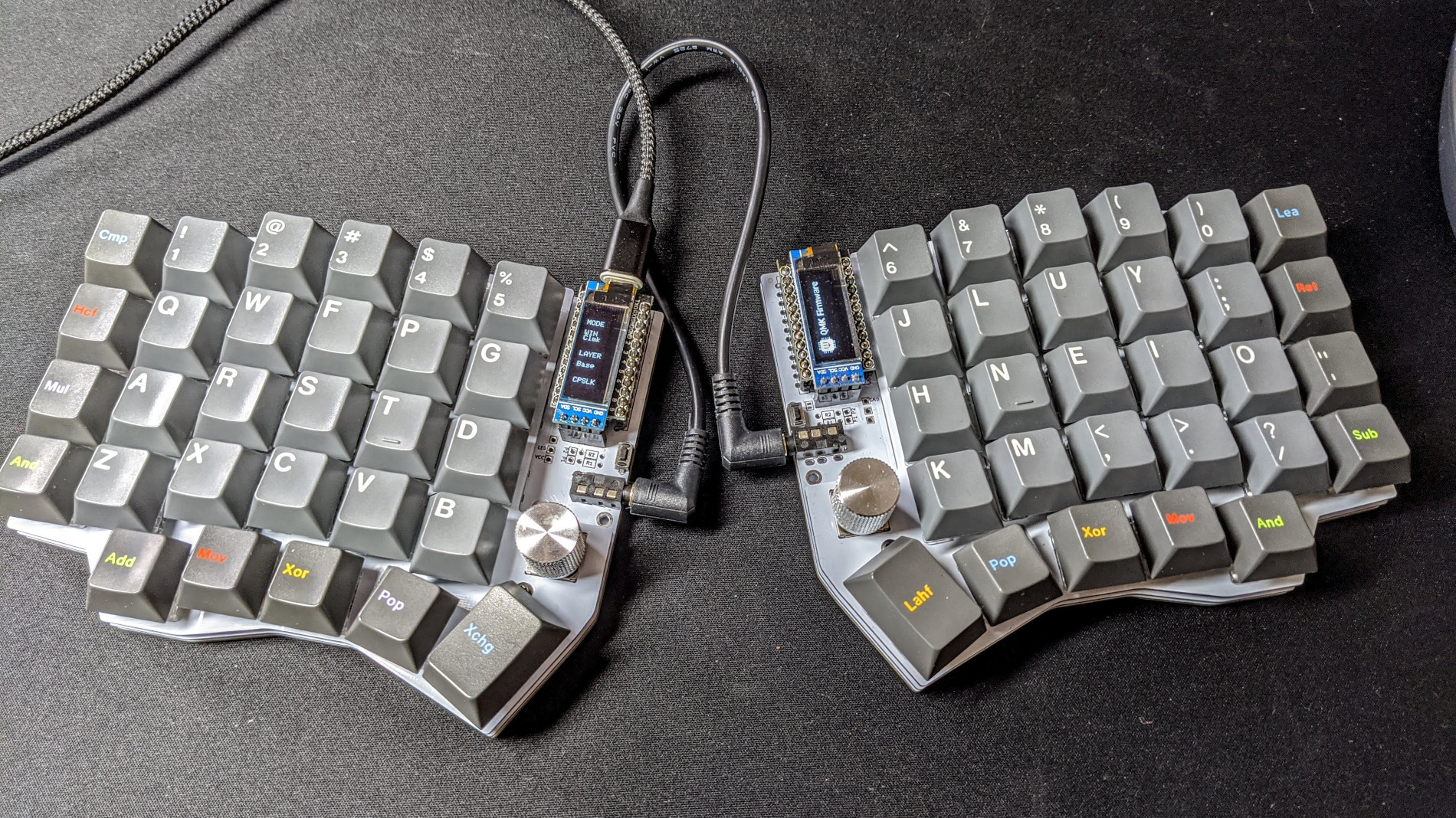

A split keyboard based on Lily58, Crkbd and Helix keyboards
Sofle is 6×4+5 keys column-staggered split keyboard with encoder support. Based on Lily58, Corne and Helix keyboards.
For more information and documentation visit https://josefadamcik.github.io/SofleKeyboard/
SofleKeyboard was created by Josef Adamcik. The motivation and process is covered in following blog-post: Let me introduce you SofleKeyboard - a split keyboard based on Lily58 and Crkbd
SofleKeyboardTopPlate bill of materials (BOM)
5 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | HOLE | HOLE_M2_TH | TH3, TH4, TH5, TH6, TH7 |
SofleKeyboardTopPlate design files
The KiCad project lives in the josefadamcik/SofleKeyboard repository on GitHub; these links point at the commit this page was built from.
SofleKeyboardTopPlate: common questions
How big is the SofleKeyboardTopPlate PCB?
The SofleKeyboardTopPlate measures 143.4 × 111.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SofleKeyboardTopPlate?
5 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the SofleKeyboardTopPlate design files?
From the josefadamcik/SofleKeyboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the SofleKeyboardTopPlate design in my own project?
Yes, under the terms of its MIT license, which josefadamcik chose for the repository.
