0bCLK PCB layout, top view — open source AVR/Arduino board by Jvlse

About the 0bCLK PCB

0bCLK is an open source AVR/Arduino PCB design by Jvlse, published on GitHub. It is a 2-layer board measuring 72.5 × 40 mm, with 18 components from 6 distinct parts.

Its main chip is the ATmega48A-P, from the AVR/Arduino family. By type, the board carries 11 diodes, 3 switches, 1 IC, 1 crystal, 1 connector and 1 battery holder.

From the project

11 LED Binary Clock using an ATmega48A

Example using USBasp, path is "C:\Atmel_Studio\7.0\CLK\Debug\CLK.hex":

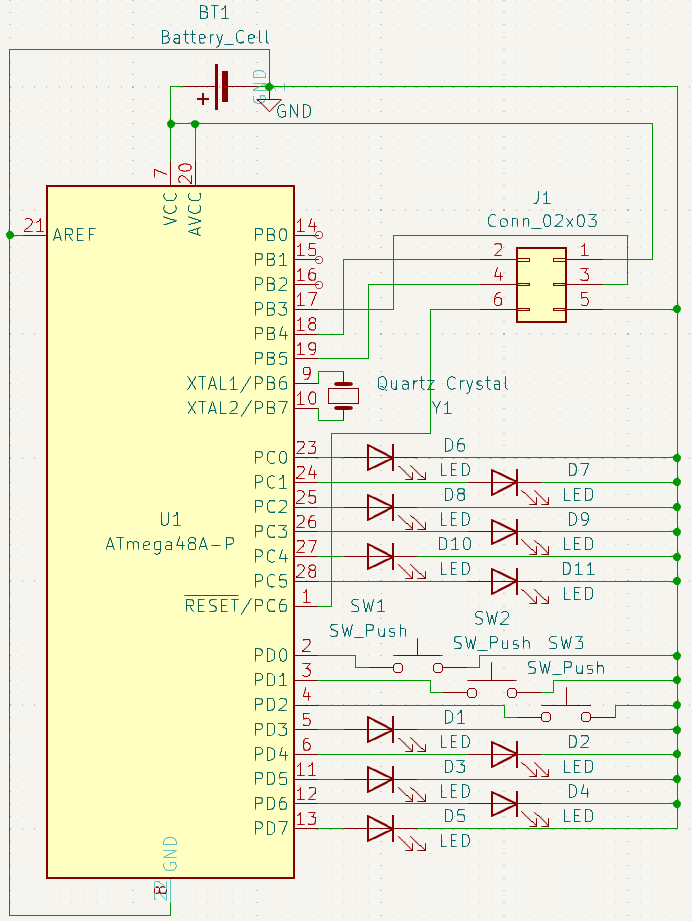

0bCLK, from the project README
From the project README

Main components on the 0bCLK

ATmega48A-P

0bCLK bill of materials (BOM)

18 components, 6 distinct parts.

QtyPartRefs
1
ATmega48A-P
U1
1
Quartz Crystal
Y1
1
Conn_02x03
J1
1
Battery_Cell
BT1
3
SW_Push
SW1, SW2, SW3
11
LED
D1, D2, D3, D4, D5, D6, D7, D8 +3

0bCLK design files

The KiCad project lives in the Jvlse/0bCLK repository on GitHub; these links point at the commit this page was built from.

0bCLK: common questions

What microcontroller does the 0bCLK use?

The 0bCLK is built around the ATmega48A-P, from the AVR/Arduino family.

How big is the 0bCLK PCB?

The 0bCLK measures 72.5 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 0bCLK?

18 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the 0bCLK design files?

From the Jvlse/0bCLK repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 0bCLK design in my own project?

The repository has no license, so all rights stay with Jvlse. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 0bCLK without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
