AD5M-Mods
About the AD5M-Mods PCB
AD5M-Mods is an open source PCB design by jwidess, published on GitHub. It is a board, with 22 components from 14 distinct parts.
By type, the board carries 6 connectors, 6 diodes, 6 resistors, 2 transistors and 1 module.
From the project
Flashforge Adventurer 5M Mods and Documentation. Primarily adding internal and external fans.
Flashforge Adventurer 5M Mods and Documentation. More info here: www.reddit.com/r/FlashForge/comments/1jyhs82/adventurer5mdiyfanexpansion_board/
AD5M-Mods bill of materials (BOM)
22 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Fan_External(40mm) | M3 | |
| 2 | IRLZ44N | TO-220-3_Vertical | Q1, Q3 |
| 1 | PB8 Pad | J1 | |
| 2 | Conn_01x04 | J2, J3 | |
| 1 | Conn_01x03 | J4 | |
| 1 | Conn_01x02_Pin | J5 | |
| 1 | PB6 Pad | J6 | |
| 1 | Conn_01x04_Pin | JSTXH-4Pin-2 | |
| 2 | D_Schottky | D2, D3 | |
| 2 | LED | D4, D5 | |
| 2 | 5.1V | D8, D9 | |
| 2 | 10kΩ | R9, R10 | |
| 2 | 2kΩ | R11, R12 | |
| 2 | 4.7kΩ | R13, R14 |
AD5M-Mods design files
The KiCad project lives in the jwidess/AD5M-Mods repository on GitHub; these links point at the commit this page was built from.
AD5M-Mods: common questions
How many components are on the AD5M-Mods?
22 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the AD5M-Mods design files?

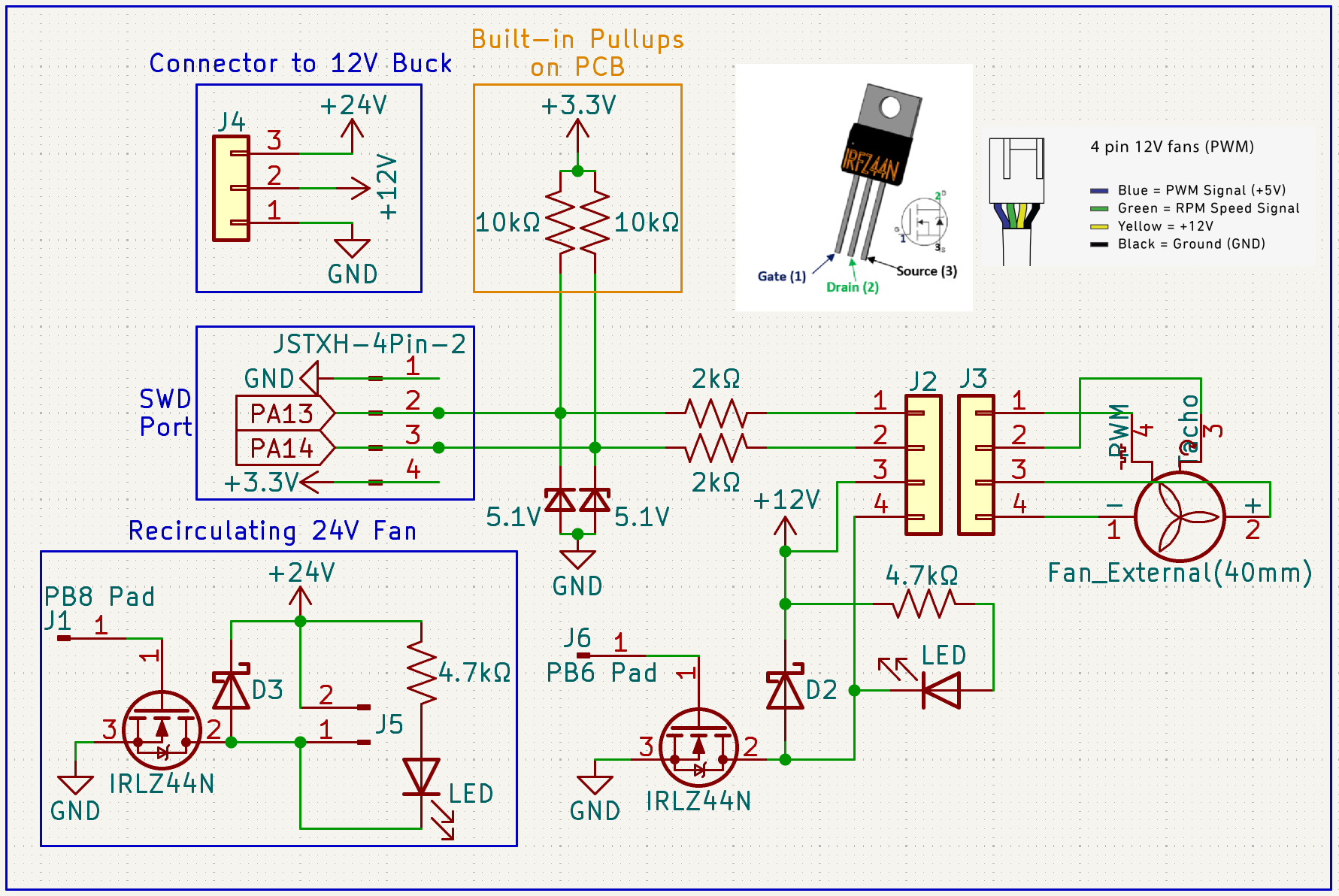

From the jwidess/AD5M-Mods repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the AD5M-Mods design in my own project?
The repository has no license, so all rights stay with jwidess. Use it as a reference, and ask the author before reusing the design.
