DragonOne MC68EZ328 SBC
About the DragonOne MC68EZ328 SBC PCB
DragonOne MC68EZ328 SBC is an open source PCB design by kanpapa, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 100 × 100 mm, with 43 components from 23 distinct parts.
Other key parts include the MC68EZ328, MT4LC4M16R6, AM29LV033, 74LCX245 and 74LCX00. By type, the board carries 16 capacitors, 10 ICs, 8 connectors, 4 resistors, 2 switches and 1 transistor.
From the project

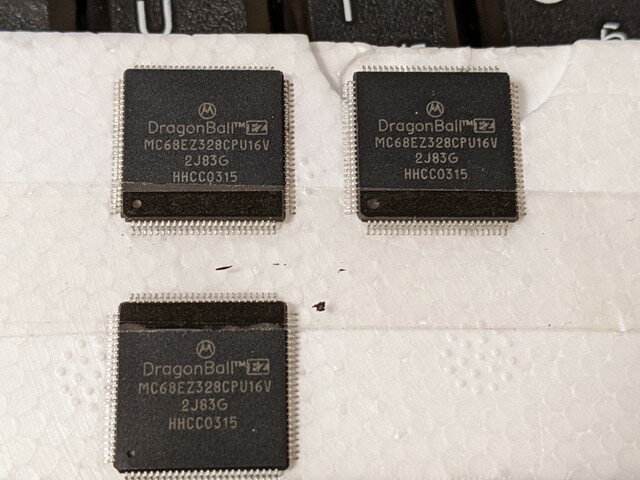

MC68EZ328 DragonOne SBC
We are designing the MC68EZ328 DragonOne SBC with KiCad.
Based on DragonOne V1.0 (C) Khaled Hassounah http://www.mediumware.net/DragonOne/DragonOne.htm
CPU: MC68EZ328 DragonBall-EZ Flash Memory: Am29LV033C 32 Megabit (4M x 8-Bit) x 2 DRAM: MT4LC4M16R6 64 Megabit (4M x 16-bit) RTC: DS1306
/b/ All b-record for programming and testing the MC68EZ328 DragonOne. /bbug/ BBUG: a bootstrap mode debugger. Implementation of BBUG using python3 and pyserial. /d/ This is the data to execute a series of commands in 68k-Monitor. /Hardware/ PDF files of schematics and BOMs /KiCad/ PCB design data and…
Main components on the DragonOne MC68EZ328 SBC
DragonOne MC68EZ328 SBC bill of materials (BOM)
43 components, 23 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MC68EZ328 | TQFP-100_14x14mm_P0.5mm | U1 |
| 1 | MT4LC4M16R6 | TSOP-II-50_21x10.16mm_P0.8mm | U2 |
| 2 | AM29LV033 | TSOP-I-40_18.4x10mm_P0.5mm | U3, U4 |
| 4 | 74LCX245 | TSSOP-20_4.4x6.5mm_P0.65mm | U5, U6, U7, U8 |
| 1 | 74LCX00 | TSSOP-14_4.4x5mm_P0.65mm | U9 |
| 1 | DS1306 | TSSOP-20_4.4x6.5mm_P0.65mm | U10 |
| 1 | 32.768KHZ 32.768kHz | Crystal_DS26_D2.0mm_L6.0mm_Horizontal | Q1 |
| 1 | DATA_BUS | PinHeader_2x08_P2.54mm_Vertical | J1 |
| 1 | ADDR_BUS | PinHeader_2x08_P2.54mm_Vertical | J2 |
| 1 | POWER | PinHeader_2x05_P2.54mm_Vertical | J3 |
| 1 | PORT1 | PinHeader_2x08_P2.54mm_Vertical | J4 |
| 1 | PORT2 | PinHeader_2x08_P2.54mm_Vertical | J5 |
| 1 | LAN POWER | PinHeader_2x03_P2.54mm_Vertical | J6 |
| 1 | LAN CONTROL | PinHeader_2x06_P2.54mm_Vertical | J7 |
| 1 | Barrel_Jack_Switch | BarrelJack_Horizontal | J8 |
| 1 | 3V | CH74-2032LF | BT1 |
| 1 | RESET | SW_PUSH_6mm | SW1 |
| 1 | BOOTSTRAP | SW_PUSH_6mm | SW2 |
| 1 | 1N4148 | D_A-405_P7.62mm_Horizontal | D1 |
| 14 | 0.1UF 0.1uf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C4, C5, C6, C7, C8, C9, C10 +6 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 2.2UF 2.2uf | C_Disc_D4.3mm_W1.9mm_P5.00mm | C3, C18 |
| 1 | 430 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 3 | 3.3K 3.3k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3, R4 |
