Pedal master

keotl·pedal-master·pcb-rev2/pedal-controller/pedal-controller.kicad_pcb

Pedal master PCB layout, top view — open source board by keotl

About the Pedal master PCB

Pedal master is an open source PCB design by keotl, published on GitHub under the MIT license. It is a 2-layer board measuring 53.3 × 54.6 mm, with 0 components from 0 distinct parts.

It belongs with the audio and keyboards designs in this gallery.

From the project

A foot-operated micro-keyboard design 👞 (For coders with RSI)

A feet operated micro-keyboard design. Now, you can use digital piano/synthesizer pedals to control your keyboard!

Compatible with digital piano pedals with a 1/4" connector (example), inverted and standard. See the buildguide for more details.

See the blogpost for an overview of the design process.

The latest revision of the Pedal Master is the rev2. See the buildguide. Fabrication files for the PCB and the case are available in this repository.

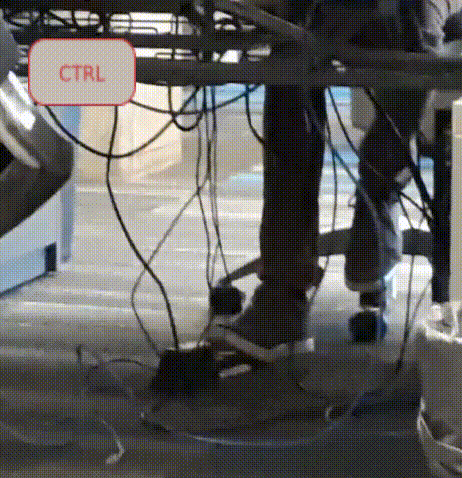

Pedal master, from the project README
From the project README

Pedal master design files

The KiCad project lives in the keotl/pedal-master repository on GitHub; these links point at the commit this page was built from.

Pedal master: common questions

How big is the Pedal master PCB?

The Pedal master measures 53.3 × 54.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pedal master?

0 components, from 0 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pedal master design files?

From the keotl/pedal-master repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Pedal master design in my own project?

Yes, under the terms of its MIT license, which keotl chose for the repository.
