Mimic40 plate
About the Mimic40 plate PCB
Mimic40 plate is an open source PCB design by kevontheweb, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 313.8 × 81.3 mm, with 61 components from 59 distinct parts.
It belongs with the keyboards designs in this gallery.
From the project

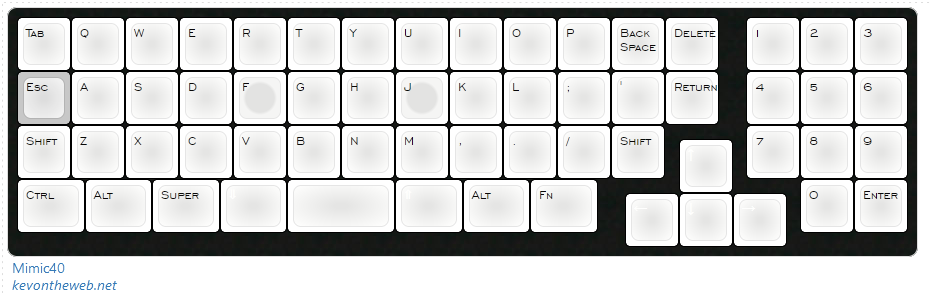

PCB for a 40/50% keyboard that is pretending to be a fullsize keyboard. it's also ortho
A tiny ortho board that is pretending to be a fullsize.
1.…
Mimic40 plate bill of materials (BOM)
61 components, 59 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Home | 1u_plate | K1 |
| 1 | Tab | 1u_plate | K2 |
| 1 | Q | 1u_plate | K3 |
| 1 | W | 1u_plate | K4 |
| 1 | E | 1u_plate | K5 |
| 1 | R | 1u_plate | K6 |
| 1 | T | 1u_plate | K7 |
| 1 | Y | 1u_plate | K8 |
| 1 | U | 1u_plate | K9 |
| 1 | I | 1u_plate | K10 |
| 1 | O | 1u_plate | K11 |
| 1 | P | 1u_plate | K12 |
| 1 | Back Space | 1u_plate | K13 |
| 1 | Delete | 1u_plate | K14 |
| 1 | 1 | 1u_plate | K15 |
| 1 | 2 | 1u_plate | K16 |
| 1 | End | 1u_plate | K18 |
| 1 | Esc | 1u_plate | K19 |
| 1 | A | 1u_plate | K20 |
| 1 | S | 1u_plate | K21 |
Show 39 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1N4148W | 1u_plate | K22 |
| 1 | F | 1u_plate | K23 |
| 1 | G | 1u_plate | K24 |
| 1 | H | 1u_plate | K25 |
| 1 | J | 1u_plate | K26 |
| 1 | K | 1u_plate | K27 |
| 1 | L | 1u_plate | K28 |
| 1 | ; | 1u_plate | K29 |
| 1 | ' | 1u_plate | K30 |
| 1 | Return | 1u_plate | K31 |
| 1 | 4 | 1u_plate | K32 |
| 1 | 5 | 1u_plate | K33 |
| 1 | Vol + | 1u_plate | K35 |
| 2 | Shift | 1u_plate | K36, K47 |
| 1 | Z | 1u_plate | K37 |
| 1 | X | 1u_plate | K38 |
| 1 | C | 1u_plate | K39 |
| 1 | V | 1u_plate | K40 |
| 1 | B | 1u_plate | K41 |
| 1 | N | 1u_plate | K42 |
| 1 | M | 1u_plate | K43 |
| 1 | , | 1u_plate | K44 |
| 1 | . | 1u_plate | K45 |
| 1 | / | 1u_plate | K46 |
| 1 | 7 | 1u_plate | K48 |
| 1 | 8 | 1u_plate | K49 |
| 1 | 9 | 1u_plate | K50 |
| 1 | Vol - | 1u_plate | K52 |
| 1 | Ctrl | 1u_plate | K53 |
| 2 | Alt | 1u_plate | K54, K59 |
| 1 | Super | 1u_plate | K55 |
| 1 | ⇓ | 2u_plate_stab | K56 |
| 1 | Blank | 1u_plate | K57 |
| 1 | ⇑ | 1u_plate | K58 |
| 1 | 0 | 1u_plate | K60 |
| 1 | Enter | 1u_plate | K61 |
| 1 | Fn | 1u_plate | K62 |
| 1 | ← | 1u_plate | K63 |
| 1 | ↓ | 1u_plate | K64 |
Mimic40 plate design files
The KiCad project lives in the kevontheweb/Mimic40 repository on GitHub; these links point at the commit this page was built from.
Mimic40 plate: common questions
How big is the Mimic40 plate PCB?
The Mimic40 plate measures 313.8 × 81.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Mimic40 plate?
61 components, from 59 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Mimic40 plate design files?
From the kevontheweb/Mimic40 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Mimic40 plate design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
