Adapter use kb600-with kb500-controller

kinx-project·adapter-use-kb600-with-kb500-controller·kicad/adapter-u6w5.kicad_pcb

Adapter use kb600-with kb500-controller PCB layout, top view — open source board by kinx-project

About the Adapter use kb600-with kb500-controller PCB

Adapter use kb600-with kb500-controller is an open source PCB design by kinx-project, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 29 × 11.2 mm, with 4 components from 4 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

adapter board which allows you to keep using your old custom keyboard controller in a new Kinesis Advantage 2 keyboard!

Are you using an older Kinesis Advantage ergonomic keyboard with a custom keyboard controller?

This adapter boards allows you to keep using your old custom keyboard controller in a new Kinesis Advantage 2 keyboard!

This adapter was split out of the kinT keyboard controller project, which is a replacement controller for your Kinesis Advantage or Advantage 2 ergonomic keyboards.

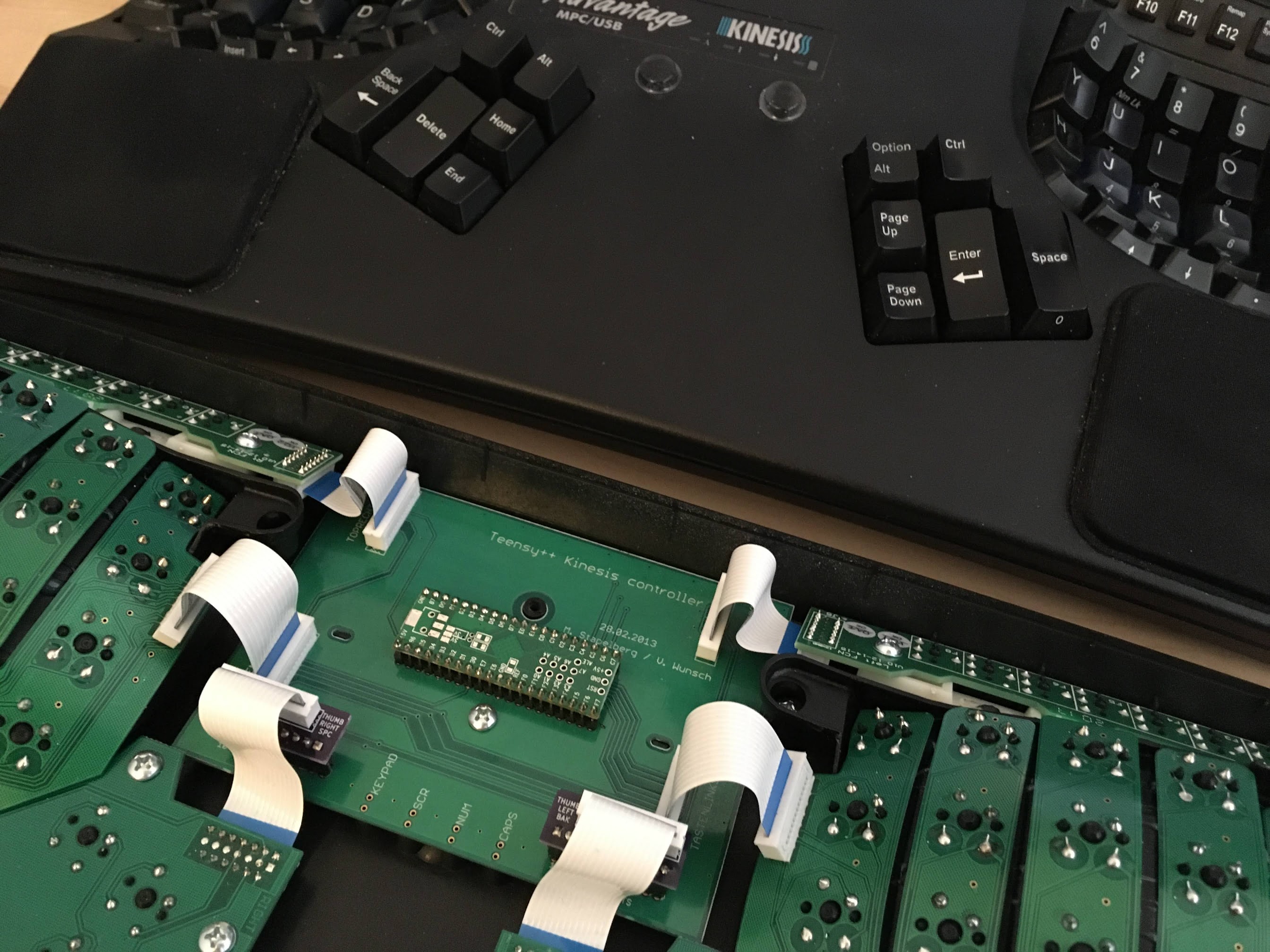

Adapter use kb600-with kb500-controller, from the project README
From the project README

Adapter use kb600-with kb500-controller bill of materials (BOM)

4 components, 4 distinct parts.

QtyPartRefs
1
THUMB_RIGHT_SPC_KB600
J1
1
THUMBnLEFTnBAK
J5
1
THUMBnRIGHTnSPC
J6
1
THUMB_LEFT_BAK_KB600
J8

Adapter use kb600-with kb500-controller design files

The KiCad project lives in the kinx-project/adapter-use-kb600-with-kb500-controller repository on GitHub; these links point at the commit this page was built from.

Adapter use kb600-with kb500-controller: common questions

How big is the Adapter use kb600-with kb500-controller PCB?

The Adapter use kb600-with kb500-controller measures 29 × 11.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Adapter use kb600-with kb500-controller?

4 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Adapter use kb600-with kb500-controller design files?

From the kinx-project/adapter-use-kb600-with-kb500-controller repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Adapter use kb600-with kb500-controller design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which kinx-project chose for the repository.
