Crack sensing circuit
About the Crack sensing circuit PCB
Crack sensing circuit is an open source PCB design by krunalbadlani, published on GitHub. It is a board, with 39 components from 12 distinct parts.
Other key parts include the plot_v1, krunal_priority, adc_bridge_7, lcd_1 and adc_bridge_1. By type, the board carries 18 ICs and 7 crystals.
It belongs with the displays & leds designs in this gallery.
From the project
- Final Report - CRACK SENSING CIRCUIT - The Idea - The Implementation - FLASH ADC and PRIORITY ENCODER - PIPO and LCD interfacing Circuit - Softwares/tools used in this simulation - Steps to simulate a mixed signal model in eSim - Final schematic in eSim - Results - Acknowledgem
- Final Report - CRACK SENSING CIRCUIT - The Idea - The Implementation - FLASH ADC and PRIORITY ENCODER - PIPO and LCD interfacing Circuit - Softwares/tools used in this simulation - Steps to simulate a mixed signal model in eSim - Final schematic in eSim - Results - Acknowledgements

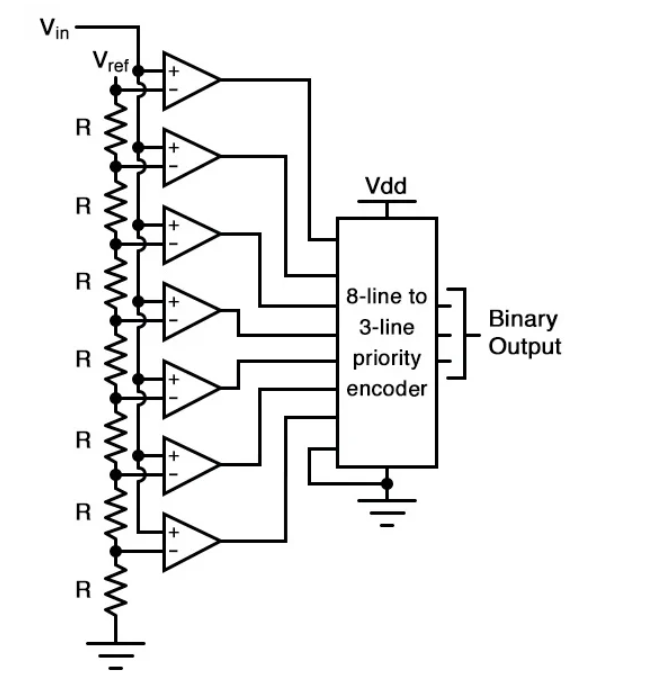

1. The voltage divider (for the sake of this simulation, the voltage is directly taken) 2. 3-bit Flash type ADC to convert that voltage level into digital output 3. A 8x3 priority encoder to convert the ADC output to binary code 4. A PIPO to send data from the encoder to lcd every clock cycle 5. LCD interfacing…
Main components on the Crack sensing circuit
Crack sensing circuit bill of materials (BOM)
39 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 12 | plot_v1 | U1, U2, U3, U4, U5, U6, U7, U9 +4 | |
| 1 | krunal_priority | U8 | |
| 1 | adc_bridge_7 | U10 | |
| 1 | lcd_1 | U11 | |
| 1 | adc_bridge_1 | U15 | |
| 1 | dac_bridge_2 | U16 | |
| 1 | dac_bridge_8 | U17 | |
| 7 | avsd_opamp | X1, X2, X3, X4, X5, X6, X7 | |
| 8 | sky130_fd_pr__res_generic_pd | SC1, SC2, SC3, SC4, SC5, SC6, SC7, SC8 | |
| 1 | SKY130mode | scmode1 | |
| 4 | DC | R1 | v1, v2, v3, v10 |
| 1 | pulse | R1 | v4 |
Crack sensing circuit design files
The KiCad project lives in the krunalbadlani/crack_sensing_circuit repository on GitHub; these links point at the commit this page was built from.
- Netlistfiles/crack_detector.net
Crack sensing circuit: common questions
How many components are on the Crack sensing circuit?
39 components, from 12 distinct parts. The full bill of materials is listed on this page.
Where can I download the Crack sensing circuit design files?
From the krunalbadlani/crack_sensing_circuit repository on GitHub, which has a netlist; the links under Design files point to each one.
Can I use the Crack sensing circuit design in my own project?
The repository has no license, so all rights stay with krunalbadlani. Use it as a reference, and ask the author before reusing the design.
