Pulses plus submin v2
About the Pulses plus submin v2 PCB
Pulses plus submin v2 is an open source PCB design by kuangmk11, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 39.2 × 110 mm, with 89 components from 21 distinct parts.
Other key parts include the CD4050 and CD40106. By type, the board carries 33 diodes, 21 resistors, 10 switches, 10 LEDs, 6 capacitors and 5 connectors.
From the project
Turing Machine Expander

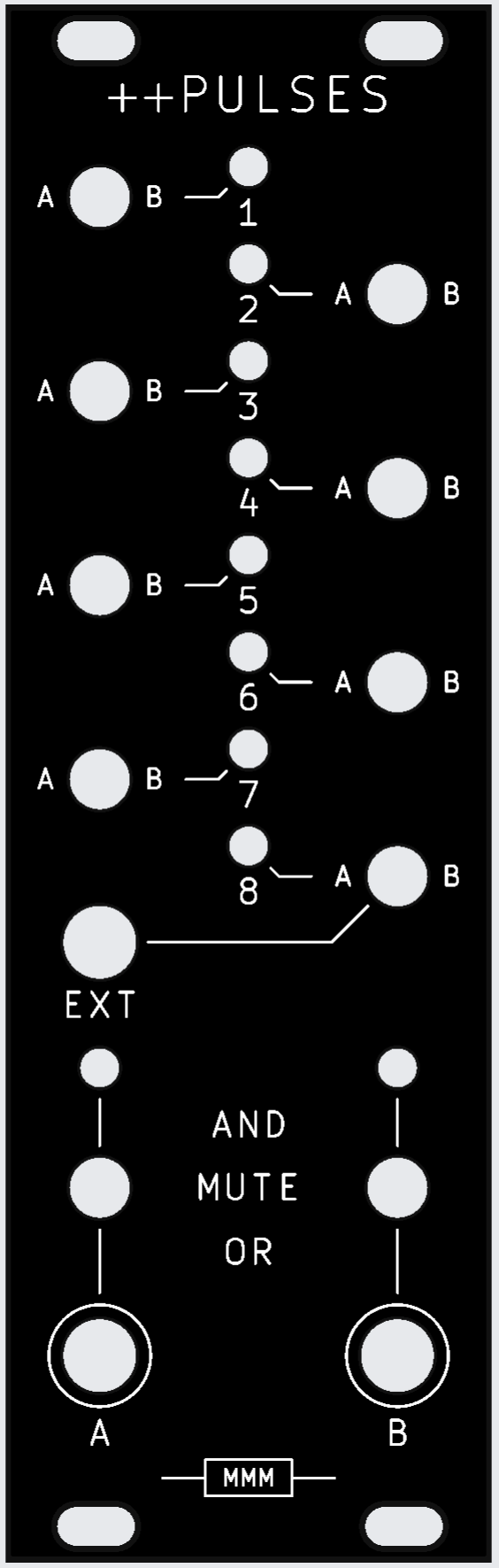

A performance-oriented gate router for the Music Thing Turing Machine. Eight pulse channels, each switchable to one of two merge buses or off; each bus computes the OR or the AND of whatever is routed to it, chosen live from the panel.
Built and tested. 8 HP, 128.5 × 40.16 mm.
It sits alongside a stock Pulses expander rather than replacing it, taking its signals from the Turing Machine's 16-pin expander ribbon and passing that ribbon through so other expanders can still be chained downstream.
Main components on the Pulses plus submin v2
Pulses plus submin v2 bill of materials (BOM)
89 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | CD4050 | DIP-16_W7.62mm | U1, U2 |
| 1 | CD40106 | DIP-14_W7.62mm | U3 |
| 1 | MMBT3904 | SOT-23 | Q1 |
| 1 | PULSES IN EITHER HEADER | IDC-Header_2x08_P2.54mm_Vertical | J1 |
| 1 | CHAIN THRU | IDC-Header_2x08_P2.54mm_Vertical | J2 |
| 1 | EXT | Thonkiconn_PJ301M | J3 |
| 1 | OUT A | Thonkiconn_PJ301M | J4 |
| 1 | OUT B | Thonkiconn_PJ301M | J5 |
| 8 | DPDT ON-OFF-ON | SW_200_MDP3_DPDT | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 |
| 1 | OR/MUTE/AND A | SW_200_MDP3_DPDT | SW9 |
| 1 | OR/MUTE/AND B | SW_200_MDP3_DPDT | SW10 |
| 10 | LED | LED_D3.0mm | LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +2 |
| 33 | 1N4148 | D_SOD-123 | D1, D2, D3, D4, D5, D6, D7, D8 +25 |
| 3 | 100n | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2, C3 |
| 1 | 10u | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C4 |
| 2 | 4.7n | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C5, C6 |
| 10 | 4k7 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2, R3, R4, R5, R6, R7, R8 +2 |
| 6 | 10k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R11, R12, R13, R14, R19, R21 |
| 2 | 1M | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R15, R16 |
| 2 | 1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R17, R18 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 22k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R20 |
Pulses plus submin v2 design files
The KiCad project lives in the kuangmk11/Doubleplus_Pulses repository on GitHub; these links point at the commit this page was built from.
Pulses plus submin v2: common questions
How big is the Pulses plus submin v2 PCB?
The Pulses plus submin v2 measures 39.2 × 110 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pulses plus submin v2?
89 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pulses plus submin v2 design files?
From the kuangmk11/Doubleplus_Pulses repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pulses plus submin v2 design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
Earlier revisions in the repo: pulses_plus_submin
