PROJETO-TOPICOS-II PCB layout, top view — open source STM32 board by LeBaggett

About the PROJETO-TOPICOS-II PCB

PROJETO-TOPICOS-II is an open source STM32 PCB design by LeBaggett, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 150 × 71.5 mm, with 36 components from 13 distinct parts.

Its main chip is the STM32F103C8Tx - MODULE, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 11 resistors, 10 switches, 9 capacitors, 2 ICs, 1 connector and 1 battery holder.

From the project

O projeto foi concebido para integrar conceitos de eletrônica digital, sistemas embarcados e boas práticas de projeto de placas de circuito impresso, priorizando simplicidade, modularidade e confiabilidade elétrica. Questões relacionadas a firmware são abordadas apenas quando nec

O projeto foi concebido para integrar conceitos de eletrônica digital, sistemas embarcados e boas práticas de projeto de placas de circuito impresso, priorizando simplicidade, modularidade e confiabilidade elétrica. Questões relacionadas a firmware são abordadas apenas quando necessárias para justificar decisões de hardware.

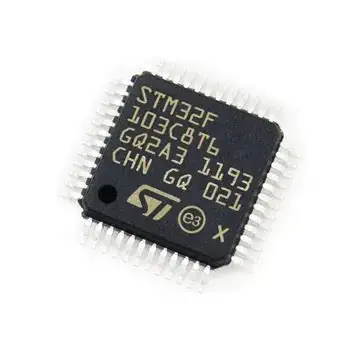

O STM32F103C8T6 foi escolhido por oferecer um equilíbrio adequado entre desempenho, custo e disponibilidade. O núcleo ARM Cortex-M3 operando a até 72 MHz é suficiente para aplicações gráficas simples, leitura de entradas e controle de periféricos.

PROJETO-TOPICOS-II, from the project README
From the project README

Main components on the PROJETO-TOPICOS-II

STM32F103C8Tx - MODULEAMS1117-3.3

PROJETO-TOPICOS-II bill of materials (BOM)

36 components, 13 distinct parts.

QtyPartRefs
1
STM32F103C8Tx - MODULE
U1
1
AMS1117-3.3
U2
1
SD_Card_Module
J1
1
Battery_Cell
BT1
1
Buzzer
BZ1
1
5110
LCD_Nokia1
1
SW_DPST_x2
SW1
9
SW_MEC_5E
SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9 +1
1
100nF
C1
5
100nF
C2, C4, C5, C6, C9
1
47uF
C3
2
4.7uF
C7, C8
11
10K
R1, R2, R3, R4, R5, R6, R7, R8 +3

PROJETO-TOPICOS-II design files

The KiCad project lives in the LeBaggett/PROJETO-TOPICOS-II repository on GitHub; these links point at the commit this page was built from.

PROJETO-TOPICOS-II: common questions

What microcontroller does the PROJETO-TOPICOS-II use?

The PROJETO-TOPICOS-II is built around the STM32F103C8Tx - MODULE, from the STM32 family.

How big is the PROJETO-TOPICOS-II PCB?

The PROJETO-TOPICOS-II measures 150 × 71.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PROJETO-TOPICOS-II?

36 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the PROJETO-TOPICOS-II design files?

From the LeBaggett/PROJETO-TOPICOS-II repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PROJETO-TOPICOS-II design in my own project?

Yes, under the terms of its GPL-3.0 license, which LeBaggett chose for the repository.

Can I test firmware for the PROJETO-TOPICOS-II without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
