Npn pnp h bridge PCB layout, top view — open source board by lk-ek

About the Npn pnp h bridge PCB

Npn pnp h bridge is an open source PCB design by lk-ek, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 45 × 19 mm, with 33 components from 14 distinct parts.

By type, the board carries 14 resistors, 6 diodes, 5 capacitors, 2 transistors and 2 connectors.

It belongs with the iot & wireless designs in this gallery.

From the project

A simple H-Bridge circuit based on NPN-PNP-BJT pairs (for opposite polarity fairy lights). Works with WLED and ESPHome.

This project is a discrete transistor-based H-bridge driver designed to drive loads such as a bi-directional LED string or small DC motors (you need to populate the protection diodes in that case!) using two 3.3V logic-level PWM inputs.

Special thanks to PCBWay.com for reaching out to supply me with prototype PCBs. They turned out amazing and do work like a charm! This gave me the opportunity to fix a few things I got wrong in the first version - especially adding the protection diodes so this circuit can now not only drive LED-strips with anti-parallel circuits, but also small DC motors.

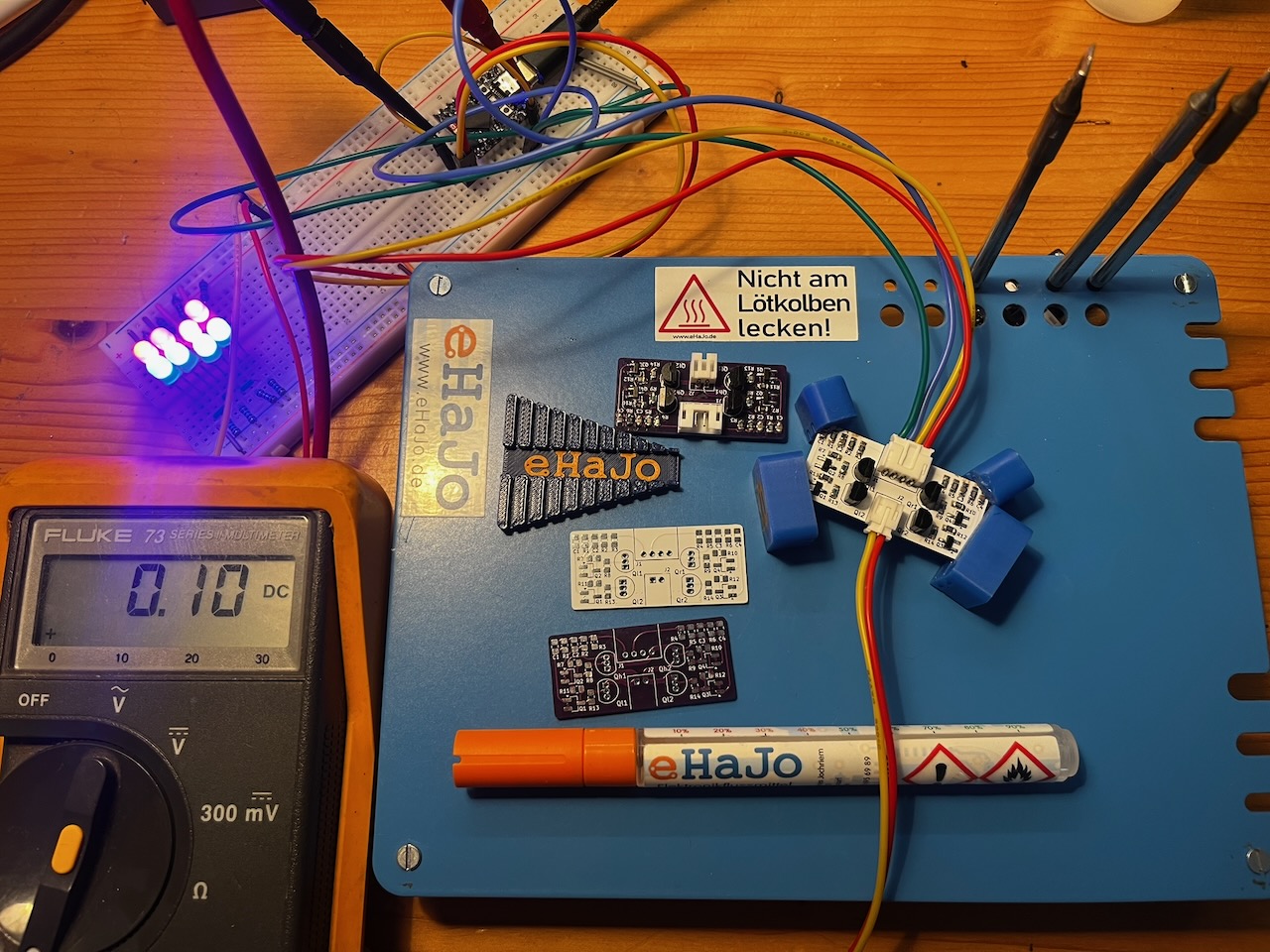

Npn pnp h bridge, from the project README
From the project README

Npn pnp h bridge bill of materials (BOM)

33 components, 14 distinct parts.

QtyPartRefs
2
MMDT3904
Q1, Q2
1
S4B-PH-K-S(LF)(SN)
S4B-PH-K-S_LF__SN_
J1
1
S2B-PH-K-S(LF)(SN)
S2B-PH-K-S_LF__SN_
J2
2
BC327-25
Ql1, Qr1
2
BC337-40
Ql2, Qr2
2
BAT54S
D1, D2
4
SS14
D3, D4, D5, D6
4
100p
C1, C2, C3, C4
1
100u
C5
4
680
R1, R2, R5, R6
2
220k
R3, R4
2
4.7k
R7, R10
4
180
R8, R9, R13, R14
2
2.2k
R11, R12

Npn pnp h bridge design files

The KiCad project lives in the lk-ek/npn-pnp-h-bridge repository on GitHub; these links point at the commit this page was built from.

Npn pnp h bridge: common questions

How big is the Npn pnp h bridge PCB?

The Npn pnp h bridge measures 45 × 19 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Npn pnp h bridge?

33 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Npn pnp h bridge design files?

From the lk-ek/npn-pnp-h-bridge repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Npn pnp h bridge design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
