LED-Pong

lmtreser·LED-Pong·sch_pcb/LED Pong.kicad_pcb

LED-Pong PCB layout, top view — open source AVR/Arduino board by lmtreser

About the LED-Pong PCB

LED-Pong is an open source AVR/Arduino PCB design by lmtreser, published on GitHub under the MIT license. It is a 2-layer board measuring 69.1 × 53.9 mm, with 14 components from 5 distinct parts.

Its main chip is the Arduino UNO, from the AVR/Arduino family. By type, the board carries 9 diodes, 2 switches, 1 module, 1 buzzer and 1 resistor.

From the project

Pong! revisited with Arduino

Simple juego al estilo Pong! con Arduino, LEDs y pulsadores. Se puede construir como un shield o con otro formato. Es un trabajo original de @newsonator.

En Tinkercad hay disponible un circuito de simulación publico.

Tanto la idea original como el firmware de @newsonator están protegidos por su respectiva licencia, por favor visitar los sitios web donde se encuentran alojados para mayor información. El resto del trabajo está protegido por la Licencia MIT. Puedes acceder a la versión original de la licencia (en inglés) a través del archivo LICENSE o en línea en The MIT License (MIT). También…

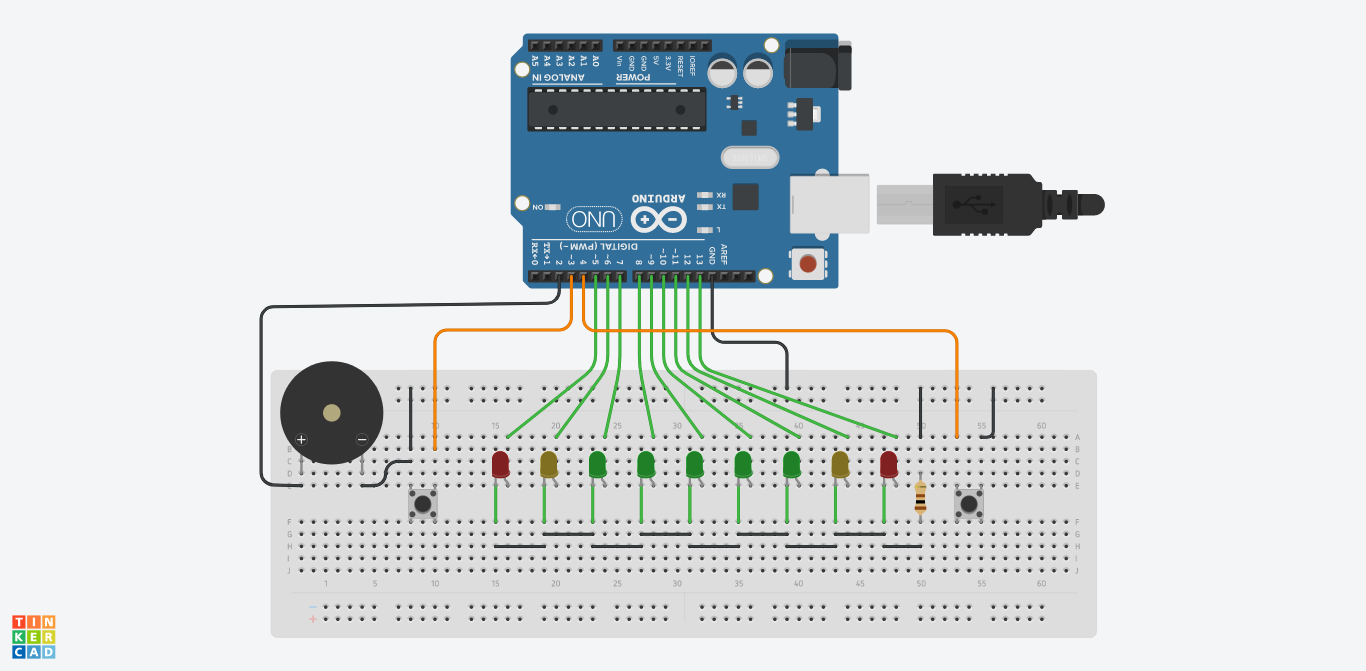

LED-Pong, from the project README
From the project README

Main components on the LED-Pong

Arduino UNO

LED-Pong bill of materials (BOM)

14 components, 5 distinct parts.

QtyPartRefs
1
Arduino UNO
A1
1
Buzzer
BZ1
2
SW_Push
SW1, SW2
9
LED
D1, D2, D3, D4, D5, D6, D7, D8 +1
1
100
R1

LED-Pong design files

The KiCad project lives in the lmtreser/LED-Pong repository on GitHub; these links point at the commit this page was built from.

LED-Pong: common questions

What microcontroller does the LED-Pong use?

The LED-Pong is built around the Arduino UNO, from the AVR/Arduino family.

How big is the LED-Pong PCB?

The LED-Pong measures 69.1 × 53.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LED-Pong?

14 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the LED-Pong design files?

From the lmtreser/LED-Pong repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LED-Pong design in my own project?

Yes, under the terms of its MIT license, which lmtreser chose for the repository.

Can I test firmware for the LED-Pong without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
