MA6116A USB SATA
About the MA6116A USB SATA PCB
MA6116A USB SATA is an open source PCB design by lucas458, published on GitHub. It is a 2-layer board measuring 37.9 × 48.8 mm, with 32 components from 14 distinct parts.
Other key parts include the MA6116A and 24LC02. By type, the board carries 18 capacitors, 7 resistors, 3 connectors, 2 ICs, 1 crystal and 1 diode.
From the project

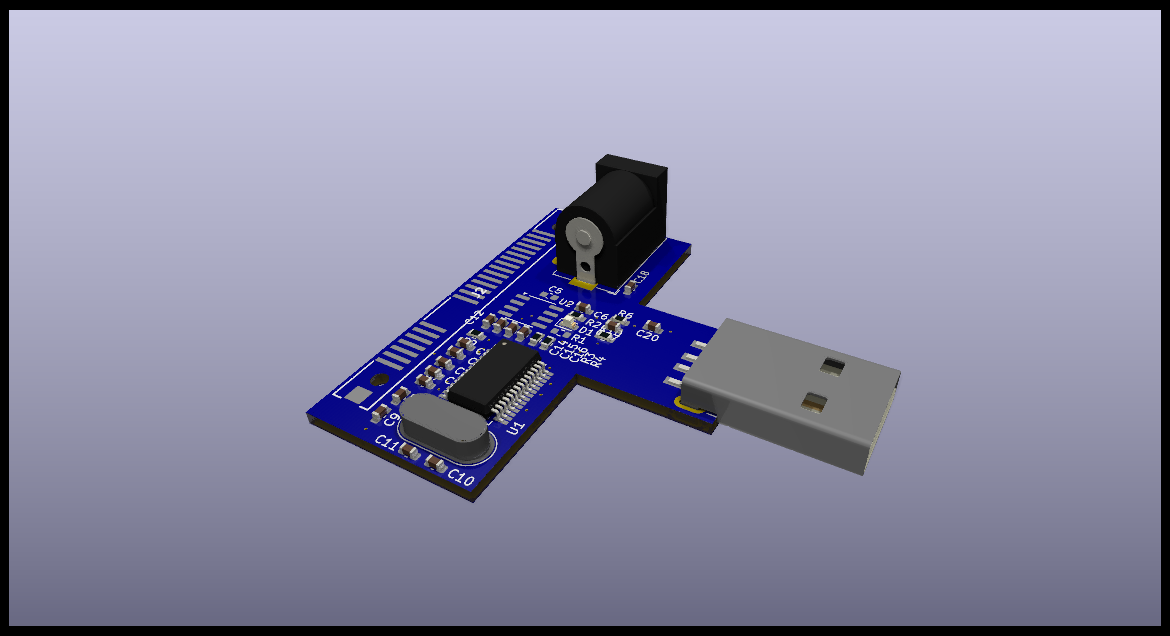

Conversor USB para SATA com MA6116A
Main components on the MA6116A USB SATA
MA6116A USB SATA bill of materials (BOM)
32 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MA6116A | SSOP-28_5.3x10.2mm_P0.65mm | U1 |
| 1 | 24LC02 | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | 12MHz | Crystal_HC49-U_Vertical | Y1 |
| 1 | 12V | BarrelJack_Horizontal | J1 |
| 1 | 1735284-3 | 17352843 | J2 |
| 1 | USB_A | USB_A_CNCTech_1001-011-01101_Horizontal | J3 |
| 1 | LED | LED_0603_1608Metric | D1 |
| 18 | ? | C_0603_1608Metric | C1, C2, C3, C4, C5, C6, C7, C8 +10 |
| 1 | ? | R_0603_1608Metric | R1 |
| 1 | (331) | R_0603_1608Metric | R2 |
| 2 | (103) | R_0603_1608Metric | R3, R10 |
| 1 | (5R1) | R_0603_1608Metric | R4 |
| 1 | (472) | R_0603_1608Metric | R6 |
| 1 | (741) | R_0603_1608Metric | R9 |
MA6116A USB SATA design files
The KiCad project lives in the lucas458/MA6116A_USB_SATA repository on GitHub; these links point at the commit this page was built from.
- LayoutMA6116A_USB_SATA.kicad_pcb
- SchematicMA6116A_USB_SATA.kicad_sch
MA6116A USB SATA: common questions
How big is the MA6116A USB SATA PCB?
The MA6116A USB SATA measures 37.9 × 48.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MA6116A USB SATA?
32 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the MA6116A USB SATA design files?
From the lucas458/MA6116A_USB_SATA repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MA6116A USB SATA design in my own project?
The repository has no license, so all rights stay with lucas458. Use it as a reference, and ask the author before reusing the design.
