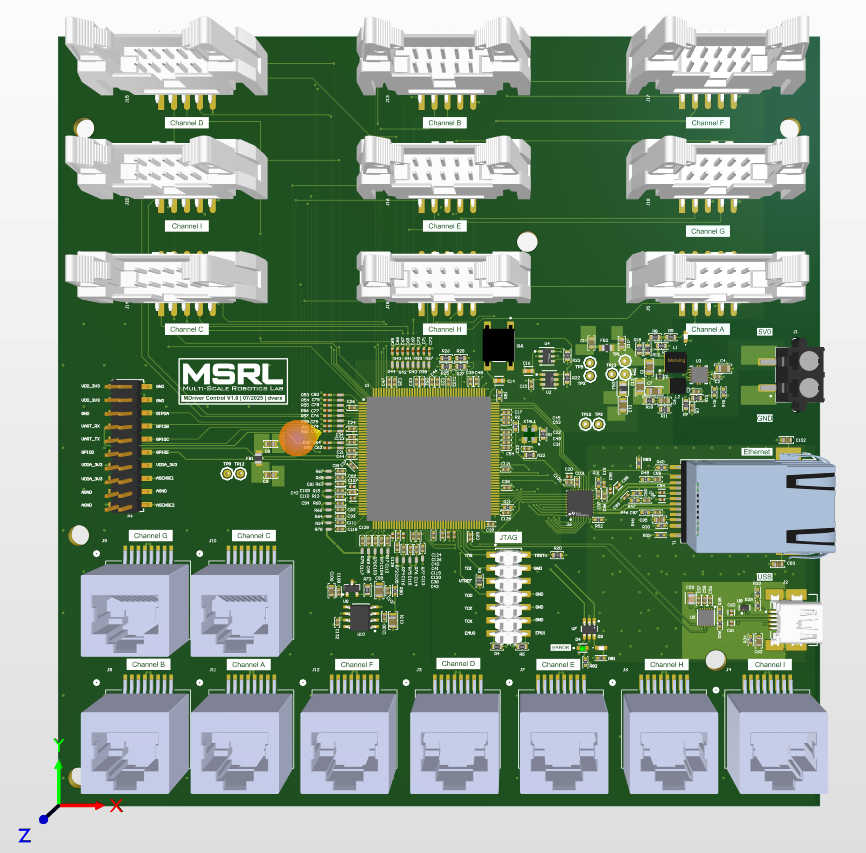

Mdriver2 hw is an open source PCB design by MagnebotiX, published on GitHub. It is a 4-layer board measuring 115 × 108 mm, with 73 components from 28 distinct parts.
Other key parts include the 2EDB8259Y and SFH617A-1X007T. By type, the board carries 29 capacitors, 26 resistors, 7 diodes, 4 ICs, 3 inductors and 2 connectors.
From the project
Hardware Repository for `mdriver2`
Main components on the Mdriver2 hw
Mdriver2 hw bill of materials (BOM)
73 components, 28 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 2EDB8259Y | SOIC-16 | U1, U2 |
| 1 | ~ | AMC3302DWER | U3 |
| 1 | SFH617A-1X007T | SMDIP-4_W9.53mm_Clearance8mm | U4 |
| 1 | BC817 | SOT-23 | Q5 |
| 1 | Conn_02x05_Odd_Even | 10pin_data_connector | J2 |
| 1 | ~ | J_Wurth_WR-MJ_634008149821 | J3 |
| 1 | Fuse | fuse | F1 |
| 2 | D | D_SOD-123F | D1, D4 |
| 5 | D_Schottky | D_SOD-323F | D2, D3, D5, D6, D7 |
| 3 | 2.2Ohm | L_0402_1005Metric | FB1, FB2, FB3 |
| 12 | 100nF | C_0402_1005Metric | C6, C8, C11, C16, C19, C26, C27, C29 +4 |
| 6 | 2.2u | C_0603_1608Metric | C7, C12, C13, C20, C21, C34 |
| 4 | 100pF | C_0402_1005Metric | C9, C10, C17, C18 |
| 4 | 1u | C_2220_5750Metric_Pad1.97x5.40mm_HandSolder | C14, C15, C22, C23 |
| 2 | 1u | C_0402_1005Metric | C24, C25 |
| 1 | 1nF | C_0402_1005Metric | C28 |
| 1 | 1Meg | R_0402_1005Metric | R2 |
| 2 | 0 | R_0402_1005Metric | R3, R11 |
| 2 | 18 | R_1206_3216Metric | R4, R12 |
| 2 | 0 | R_0603_1608Metric | R5, R13 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 3.3 | R_0603_1608Metric | R6, R8, R14, R16 |
| 2 | 12 | R_0603_1608Metric | R7, R15 |
| 4 | 560k | R_0402_1005Metric | R9, R10, R17, R18 |
| 1 | 5m | R_2512_6332Metric_Pad1.40x3.35mm_HandSolder | R19 |
| 2 | 10 | R_0402_1005Metric | R20, R21 |
| 1 | 47k | R_0402_1005Metric | R22 |
| 3 | 430 | R_0603_1608Metric | R23, R24, R25 |
| 2 | 68k | R_2512_6332Metric | R26, R27 |
