Nfc business card
About the Nfc business card PCB

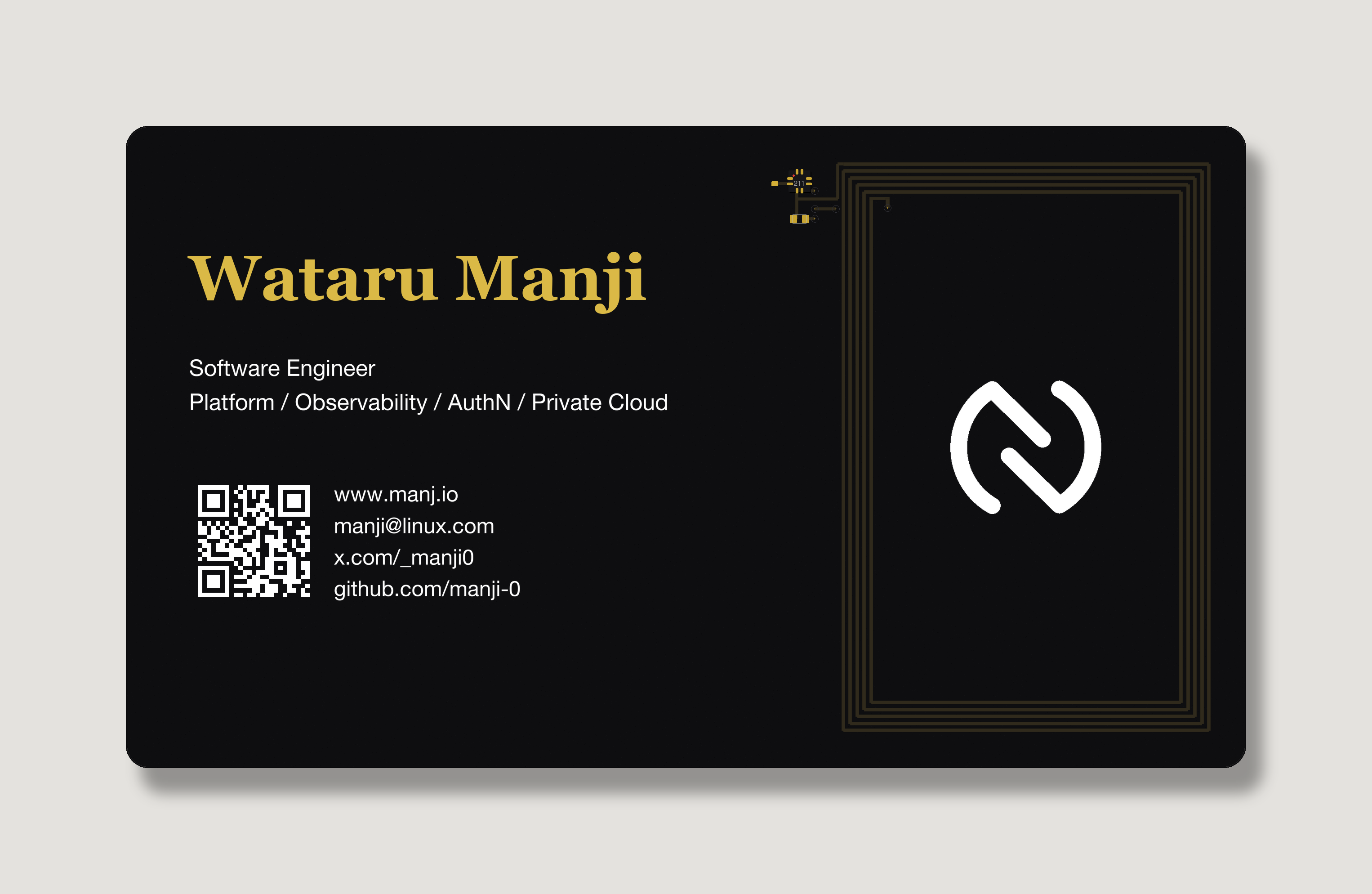

Nfc business card is an open source PCB design by manji-0, published on GitHub. It is a 2-layer board measuring 89 × 51 mm, with 1 components from 1 distinct parts.
Other key parts include the NT3H2111W0FHKH.
From the project
89×51mm NFC business card PCB — KiCad generator, JLCPCB fab outputs
Passive NFC PCB business card: 89 × 51 mm, URL NDEF, rewritable from iPhone.
Use devbox + uv for Python and tooling. KiCad 10+ is installed separately.
Full guide: SETUP.md (fonts, KiCad path, troubleshooting).
Individual steps: ./task assets project preview fab (runs in order).
Open nfc-business-card.kicadpro in KiCad 8+ to edit silk text, tweak antenna, or re-export with JLCPCB Fabrication Toolkit**.
Main components on the Nfc business card
Nfc business card bill of materials (BOM)
1 components, 1 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NT3H2111W0FHKH | XQFN-8_1.6x1.6mm_P0.4mm_NT3H2111 | U1 |
Nfc business card design files
The KiCad project lives in the manji-0/nfc-business-card repository on GitHub; these links point at the commit this page was built from.
- Layoutnfc-business-card.kicad_pcb
- Schematicnfc-business-card.kicad_sch
- BOMfab/bom-c1.csv
Nfc business card: common questions
How big is the Nfc business card PCB?
The Nfc business card measures 89 × 51 mm, has 2 copper layers and is 0.8 mm thick.
How many components are on the Nfc business card?
1 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Nfc business card design files?
From the manji-0/nfc-business-card repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Nfc business card design in my own project?
The repository has no license, so all rights stay with manji-0. Use it as a reference, and ask the author before reusing the design.
