About the Skoldpad PCB
Skoldpad is an open source PCB design by martisak, published on GitHub under the MIT license. It is a 2-layer board measuring 141.9 × 109.3 mm, with 72 components from 5 distinct parts.
By type, the board carries 47 switches, 23 diodes and 1 transformer.
It belongs with the keyboards designs in this gallery.
From the project

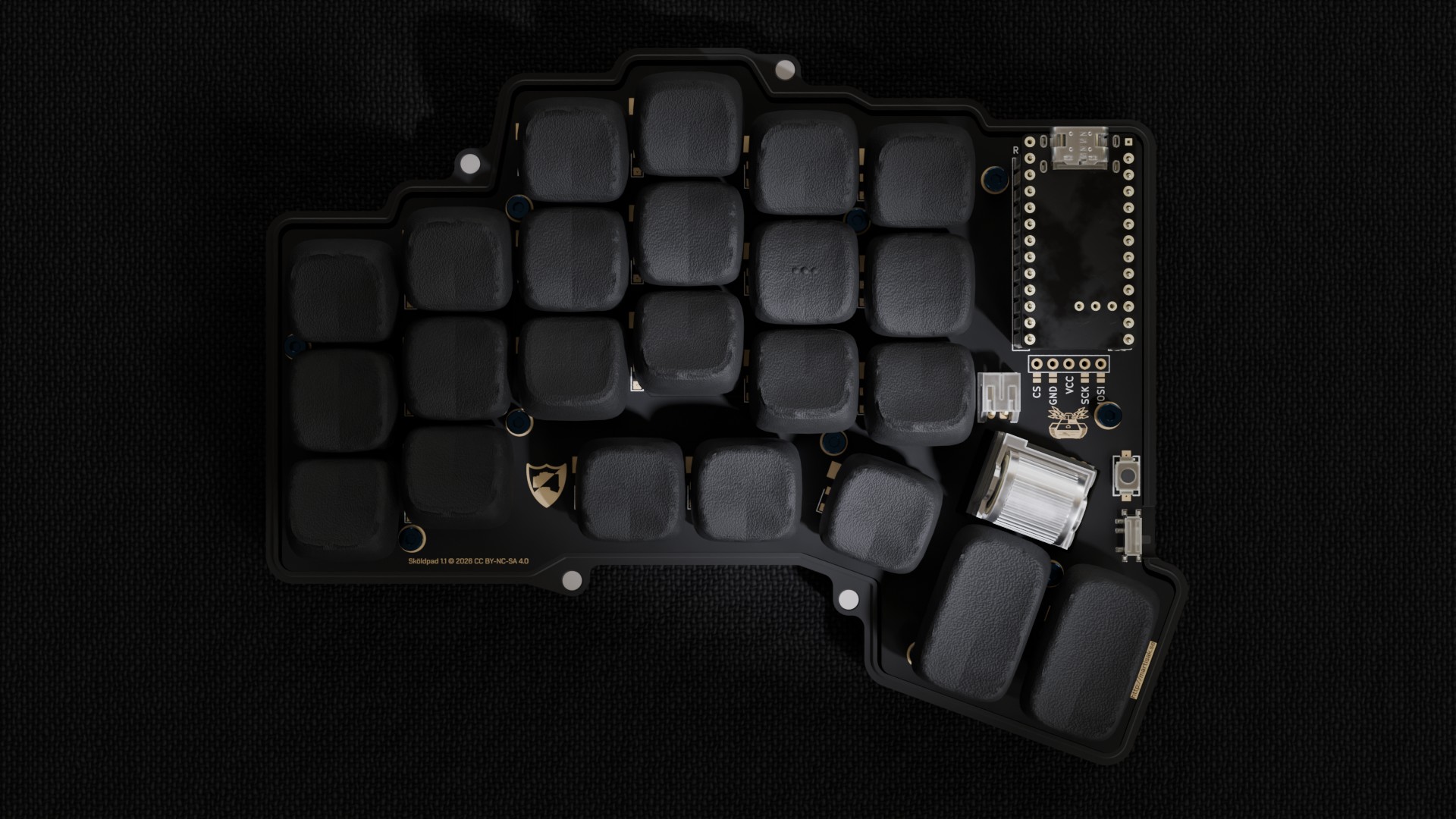

Sköldpad 1.0 - a columnar-staggered split keyboard built with ergogen and KiCad
A split, columnar-staggered keyboard built around a nice!nano MCU with a rotary encoder, laid out with ergogen and routed in KiCad. It's based on/inspired by josukey (MIT licensed), an ergogen-based Corne clone.
Firmware (ZMK, with a custom keymap tuned for Swedish input and coding symbols) lives in its own repo: martisak/zmk-config.
The layout lives in ergogen/config.yaml.

Skoldpad bill of materials (BOM)
72 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 46 | — | PG1350 | S1, S2, S3, S4, S5, S6, S7, S8 +38 |
| 1 | — | 434121025816 | S48 |
| 1 | — | SW_SPDT_PCM12 | T1 |
| 1 | — | JST_PH_S2B-PH-K_1x02_P2.00mm_Horizontal | _1 |
| 23 | Nexperia_CFP3_SOD-123W | Nexperia_CFP3_SOD-123W | D1, D2, D3, D4, D5, D6, D7, D8 +15 |
Skoldpad design files
The KiCad project lives in the martisak/skoldpad repository on GitHub; these links point at the commit this page was built from.
Skoldpad: common questions
How big is the Skoldpad PCB?
The Skoldpad measures 141.9 × 109.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Skoldpad?
72 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Skoldpad design files?
From the martisak/skoldpad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Skoldpad design in my own project?
Yes, under the terms of its MIT license, which martisak chose for the repository.
