AMR Krabbler PCB layout, top view — open source AVR/Arduino board by maxikuehn

About the AMR Krabbler PCB

AMR Krabbler is an open source AVR/Arduino PCB design by maxikuehn, published on GitHub under the MIT license. It is a 2-layer board measuring 38 × 47 mm, with 16 components from 16 distinct parts.

Its main chip is the Arduino_Nano_v3.3, from the AVR/Arduino family. Other key parts include the Analog_A0, Analog_A1, Analog_A2 and Analog_A3. By type, the board carries 9 modules, 3 connectors and 1 diode.

It belongs with the robotics & motion designs in this gallery.

From the project

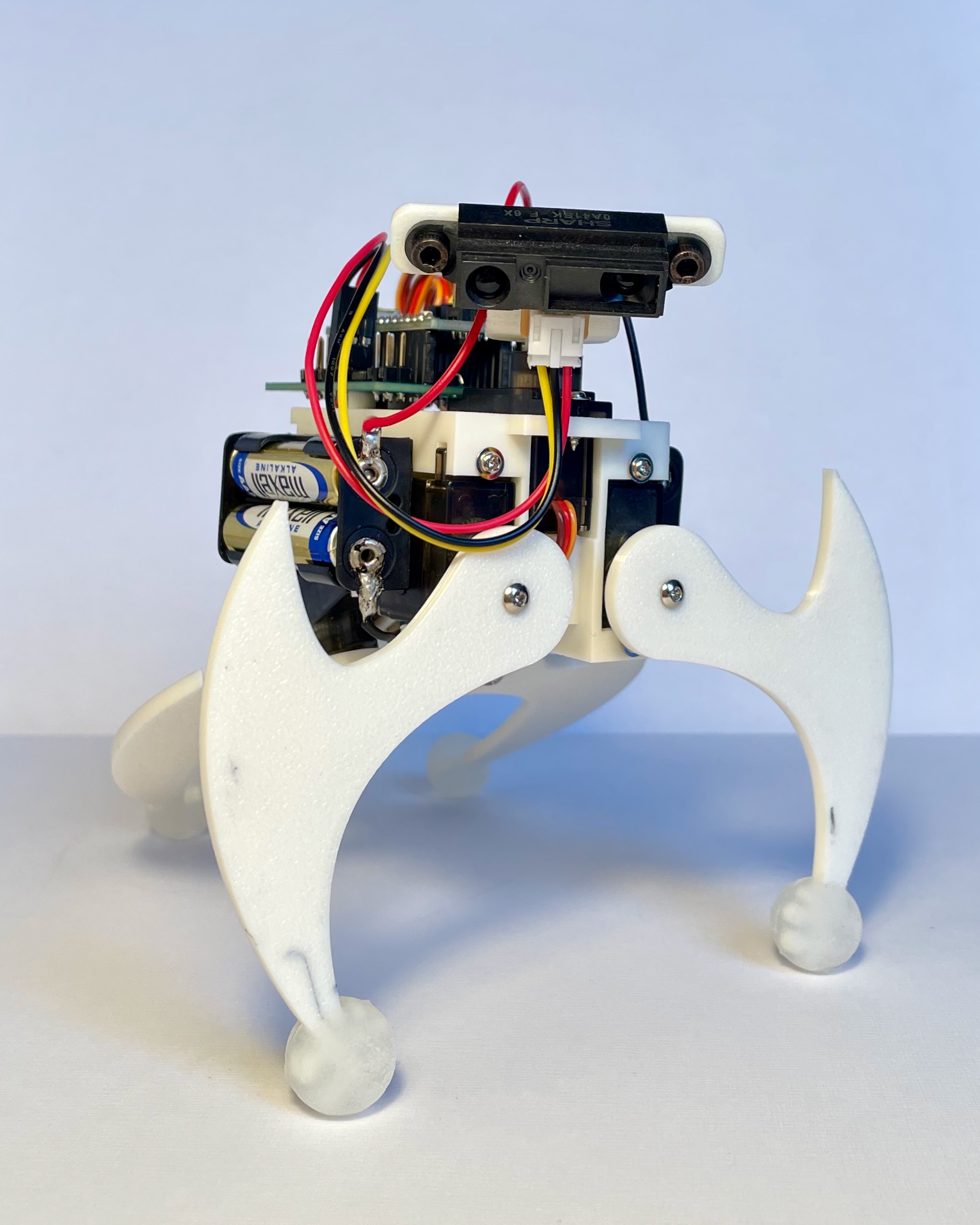

University Project, combining robotics, 3d-Printing and PCB-design.

AMR Krabbler, from the project README
From the project README

Main components on the AMR Krabbler

Analog_A0Analog_A1Analog_A2Analog_A3

AMR Krabbler bill of materials (BOM)

16 components, 16 distinct parts.

QtyPartRefs
1
Analog_A0
A1
1
Analog_A1
A2
1
Analog_A2
A3
1
Analog_A3
A4
1
Servo_Head
M1
1
Servo_Front_Left
M2
1
Servo_Front_Right
M3
1
Servo_Back_Left
M4
1
Servo_Back_Right
M5
1
Power_Jumper
P1
1
Power_Switch
P2
1
Battery_Pin
P3
1
I2C_Pinout_1
I1
1
I2C_Pinout_2
I2
1
Arduino_Nano_v3.3
MC1
1
Diode
D1

AMR Krabbler design files

The KiCad project lives in the maxikuehn/AMR_Krabbler repository on GitHub; these links point at the commit this page was built from.

AMR Krabbler: common questions

What microcontroller does the AMR Krabbler use?

The AMR Krabbler is built around the Arduino_Nano_v3.3, from the AVR/Arduino family.

How big is the AMR Krabbler PCB?

The AMR Krabbler measures 38 × 47 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AMR Krabbler?

16 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the AMR Krabbler design files?

From the maxikuehn/AMR_Krabbler repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the AMR Krabbler design in my own project?

Yes, under the terms of its MIT license, which maxikuehn chose for the repository.

Can I test firmware for the AMR Krabbler without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
