IPod USB-C
About the IPod USB-C PCB
IPod USB-C is an open source PCB design by maxmacstn, published on GitHub. It is a 2-layer board measuring 17.9 × 11 mm, with 3 components from 3 distinct parts.
From the project

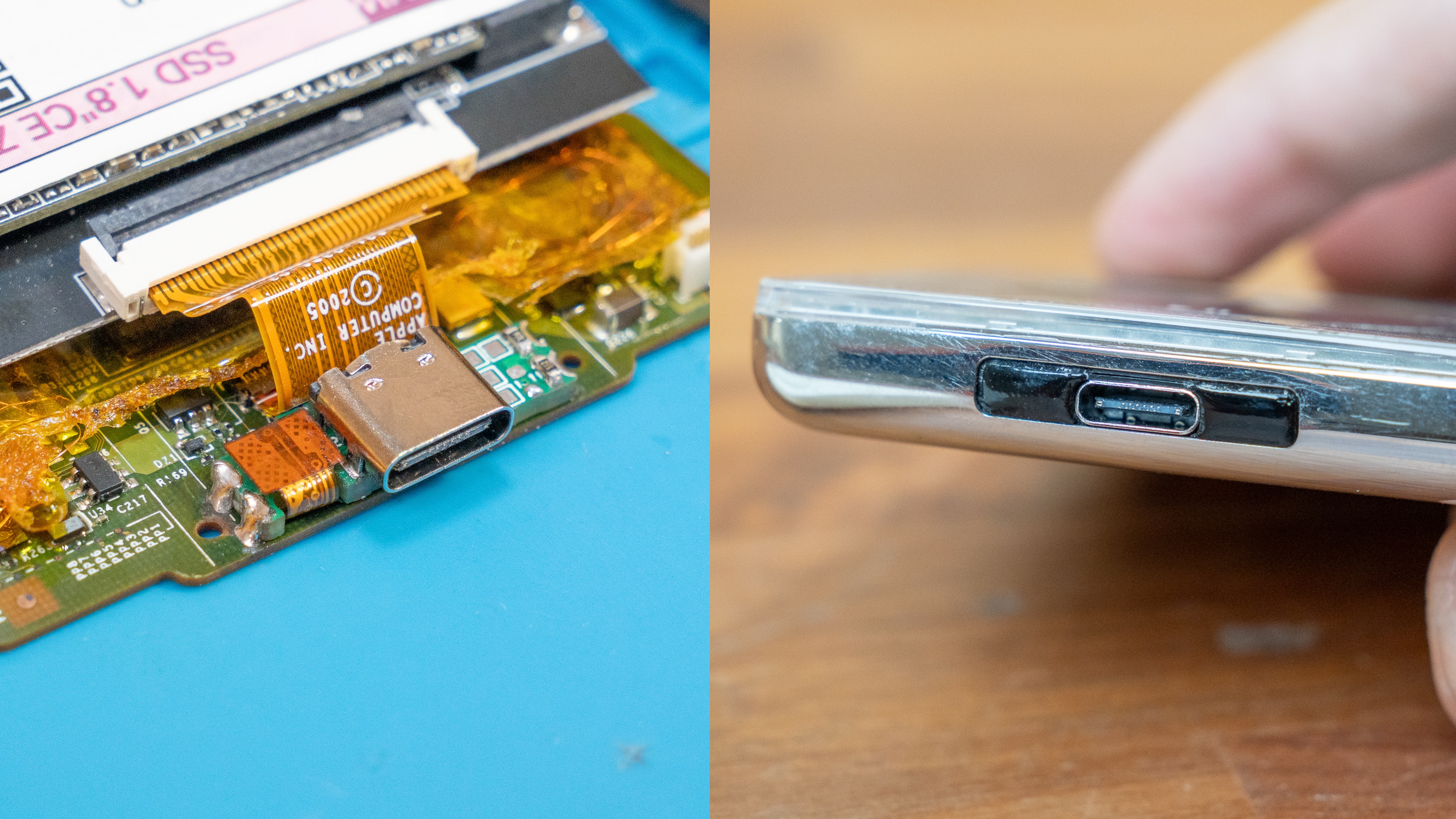

The dock connector is ancient. How it works is each pin has a specific purpose, e.g. USB, FireWire, line out, serial, etc. Therefore, it has many pins. What I did was tap into the USB D+, D−, VCC, and GND from the dock connector and connect them to a USB-C port. Seems simple, doe
The dock connector is ancient. How it works is each pin has a specific purpose, e.g. USB, FireWire, line out, serial, etc. Therefore, it has many pins. What I did was tap into the USB D+, D−, VCC, and GND from the dock connector and connect them to a USB-C port. Seems simple, doesn't it?
However, the depth of the USB-C port is longer than the 30-pin dock connector. The PCB part that holds the USB-C port sits over the dock connector solder pads. What I did was create two parts: a solid PCB and a flexible PCB. The solid PCB holds the USB-C connector as well as attaches the PCB itself to the…
IPod USB-C bill of materials (BOM)
3 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X09_SOCKET ~ | SolderPad_iPod_Dock | J1 |
| 1 | CONN_01X06_PIN ~ | MOLEX_505070_1022 | J2 |
| 1 | ~ | SolderPad_iPod_Dock | J3 |
IPod USB-C design files
The KiCad project lives in the maxmacstn/iPod-Classic-6-mods repository on GitHub; these links point at the commit this page was built from.
IPod USB-C: common questions
How big is the IPod USB-C PCB?
The IPod USB-C measures 17.9 × 11 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the IPod USB-C?
3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the IPod USB-C design files?
From the maxmacstn/iPod-Classic-6-mods repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the IPod USB-C design in my own project?
The repository has no license, so all rights stay with maxmacstn. Use it as a reference, and ask the author before reusing the design.
