Kicad netlist tool
About the Kicad netlist tool PCB
Kicad netlist tool is an open source PCB design by MichaelAyles, published on GitHub under the MIT license. It is a board, with 11 components from 10 distinct parts.
Other key parts include the ECC83. By type, the board carries 4 connectors, 4 resistors, 2 capacitors and 1 IC.
From the project
Realtime updating of a simple component and netlist for LLM automation of documentation
Extract component and netlist information from KiCad schematics in TOKN format - a token-efficient representation optimized for LLM processing.
KiCad schematic files contain extensive graphical and metadata information that consumes many tokens when used with LLMs. This tool extracts only the essential electrical information:

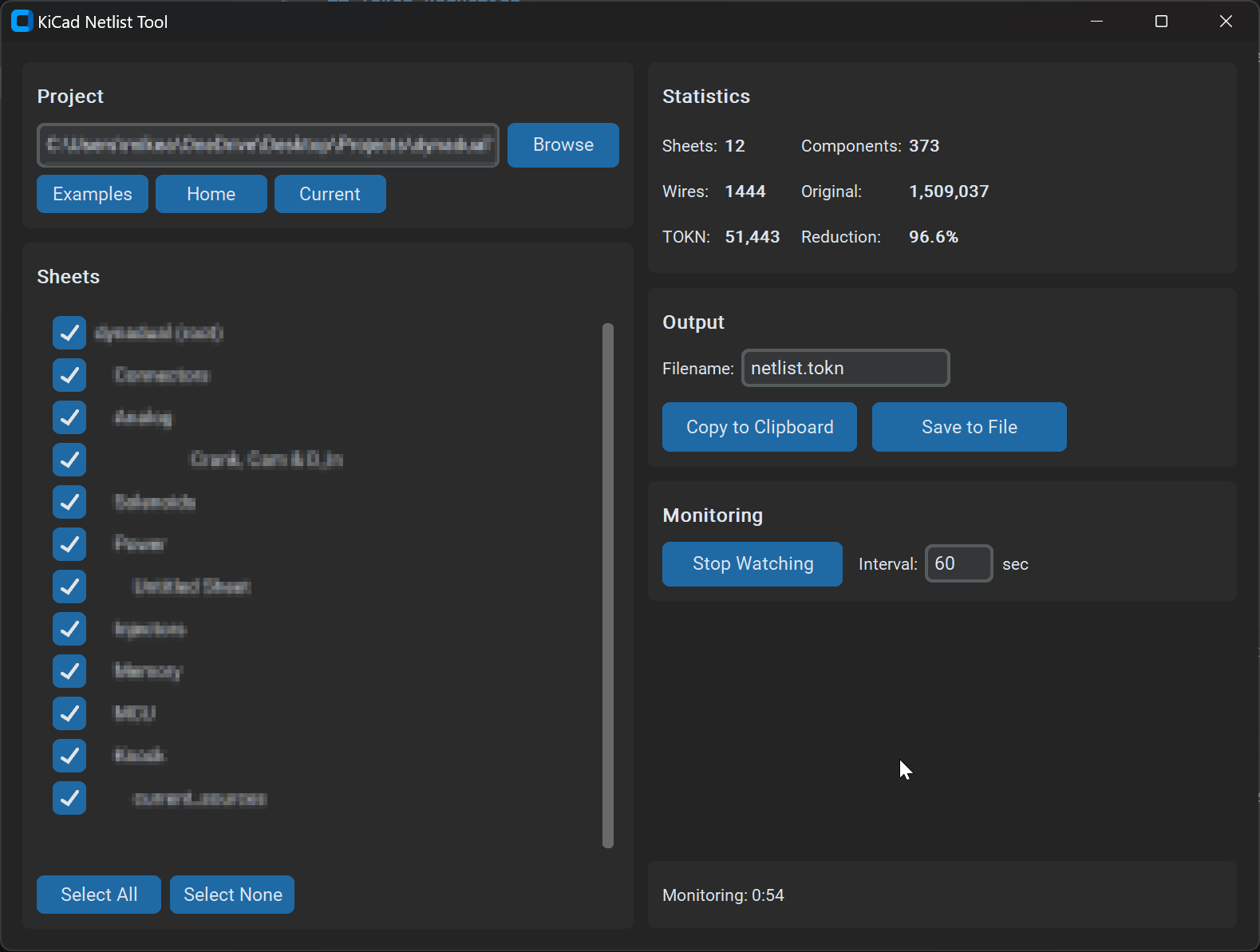

Features: - Smart project detection - automatically finds the root schematic - Hierarchical sheet selection - tree view with checkboxes to select specific sheets - Copy to clipboard - for quick pasting into LLM conversations - Save to file - exports as .tokn file -…
Main components on the Kicad netlist tool
Kicad netlist tool bill of materials (BOM)
11 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ECC83 | Valve_ECC-83-1 | U1 |
| 1 | IN | Altech_AK300_1x02_P5.00mm_45-Degree | P1 |
| 1 | OUT | Altech_AK300_1x02_P5.00mm_45-Degree | P2 |
| 1 | POWER | Altech_AK300_1x02_P5.00mm_45-Degree | P3 |
| 1 | CONN_2 | Altech_AK300_1x02_P5.00mm_45-Degree | P4 |
| 1 | 10uF | CP_Radial_D10.0mm_P5.00mm | C1 |
| 1 | 680nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C2 |
| 2 | 1.5K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
| 1 | 100K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 1 | 47K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
Kicad netlist tool design files
The KiCad project lives in the MichaelAyles/kicad-netlist-tool repository on GitHub; these links point at the commit this page was built from.
- Schematicexamples/ecc83-pp.kicad_sch
Kicad netlist tool: common questions
How many components are on the Kicad netlist tool?
11 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Kicad netlist tool design files?
From the MichaelAyles/kicad-netlist-tool repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Kicad netlist tool design in my own project?
Yes, under the terms of its MIT license, which MichaelAyles chose for the repository.
