About the DesktopPowerSupply PCB

DesktopPowerSupply is an open source PCB design by michalgluszak, published on GitHub. It is a 2-layer board measuring 55 × 36 mm, with 12 components from 12 distinct parts.

Other key parts include the Mini Digital Voltometer and LM317_TO-220. By type, the board carries 2 ICs, 2 connectors, 2 diodes, 2 capacitors, 2 resistors and 1 switch.

It belongs with the displays & leds and test & measurement designs in this gallery.

From the project

The Desktop Power Supply is a compact workshop power supply based on the popular and reliable LM317 linear voltage regulator.

The Desktop Power Supply is a compact workshop power supply based on the popular and reliable LM317 linear voltage regulator.

This project was created to provide a simple, cheap, and convenient power source with adjustable voltage, perfect for breadboard prototyping and testing small electronic circuits. The whole device was designed to take up as little space on the desk as possible, while offering everything necessary for the daily work of a hobbyist and engineer.

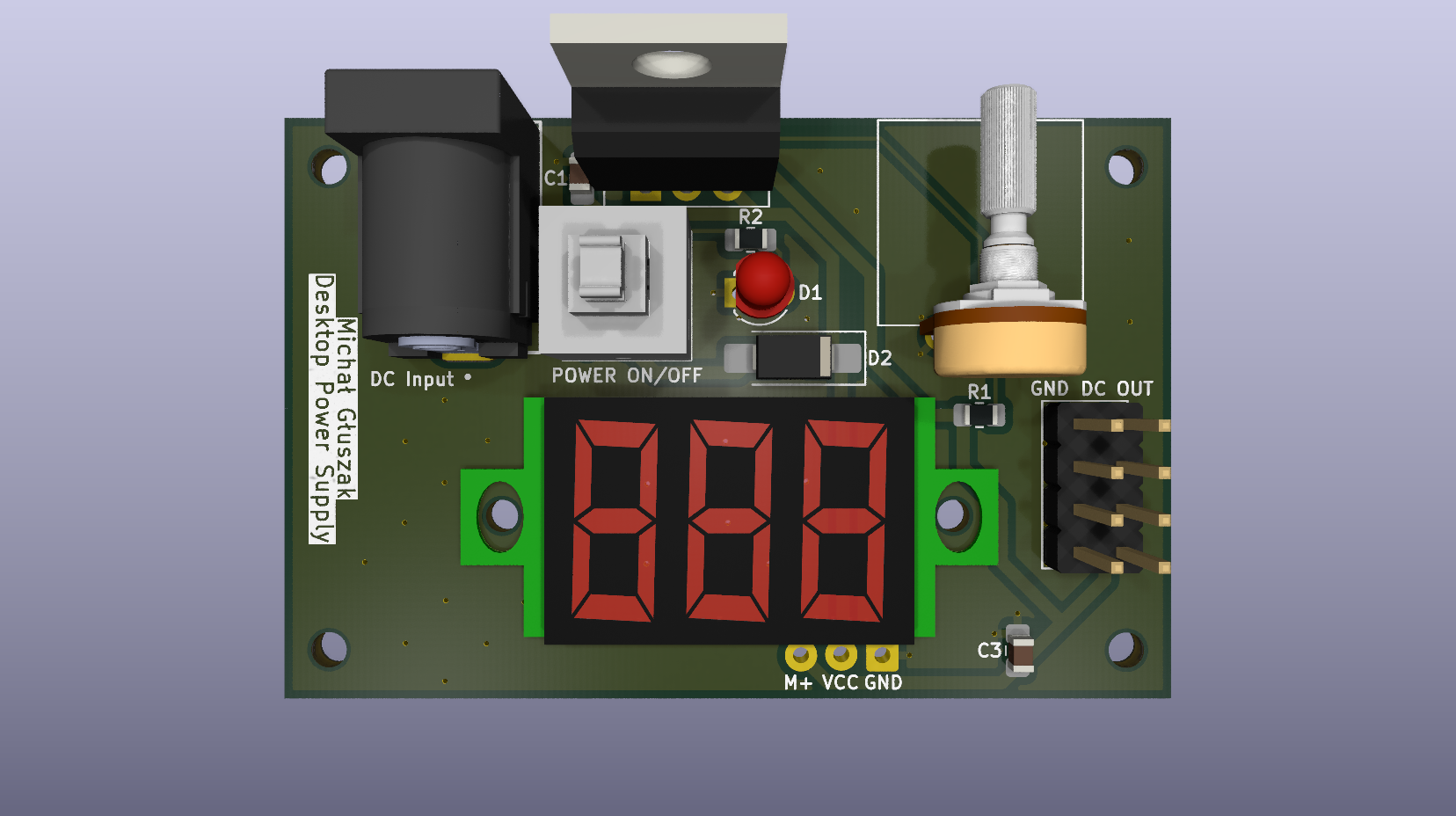

DesktopPowerSupply, from the project README — From the project README

Main components on the DesktopPowerSupply

Mini Digital VoltometerLM317_TO-220

DesktopPowerSupply bill of materials (BOM)

12 components, 12 distinct parts.

Qty	Part	Footprint	Refs
1	Mini Digital Voltometer	Mini_digital_voltmeter_with_hole	U1
1	LM317_TO-220	TO-220-3_Vertical	U2
1	Barrel_Jack	GCT_DCJ200-10-A-XX-K_REVA	J1
1	Conn_02x04_Odd_Even	PinHeader_2x04_P2.54mm_Vertical	J2
1	2000R	Potencjometr_WH148_3D	RV1
1	TL2285EE	TL2285EE	S1
1	LED	LED_D3.0mm	D1
1	1N4007	D_SMA_Handsoldering	D2
1	100nF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C1
1	1uF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C3
1	240R	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R1
1	2200	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R2

DesktopPowerSupply design files

The KiCad project lives in the michalgluszak/DesktopPowerSupply repository on GitHub; these links point at the commit this page was built from.

LayoutDesktopPowerSupply.kicad_pcb
SchematicDesktopPowerSupply.kicad_sch

DesktopPowerSupply: common questions

How big is the DesktopPowerSupply PCB?

The DesktopPowerSupply measures 55 × 36 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DesktopPowerSupply?

12 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the DesktopPowerSupply design files?

From the michalgluszak/DesktopPowerSupply repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DesktopPowerSupply design in my own project?

The repository has no license, so all rights stay with michalgluszak. Use it as a reference, and ask the author before reusing the design.
