A2JoystickAdapter
About the A2JoystickAdapter PCB
A2JoystickAdapter is an open source PCB design by mignon-p, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 29.8 × 33.7 mm, with 1 components from 1 distinct parts.
From the project

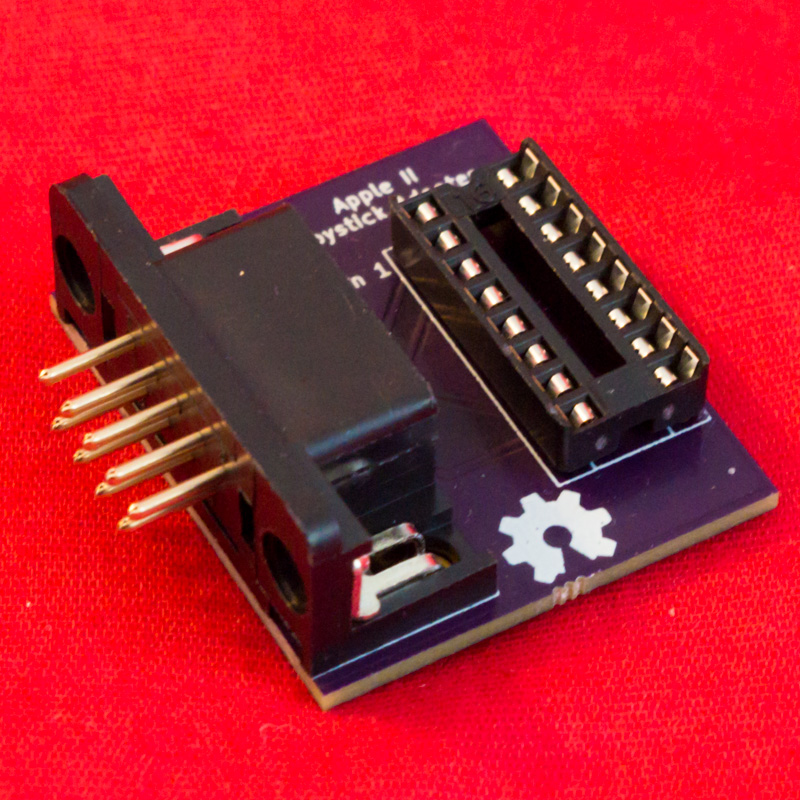

A simple board to connect a 16-pin Apple II joystick to the 9-pin connector on the back of Apple IIe and later computers.
This small board lets you plug a 16-pin joystick into the external 9-pin joystick port on the Apple IIe. Although the Apple IIe has an internal 16-pin joystick port, I found that the connector on my joystick was too big to fit through any of the holes on the back of the IIe. So, I created this adapter to let me plug it in externally.
This adapter could also be useful for the Apple IIc, which does not have a 16-pin joystick port at all, although I have not tested it on a IIc.
A2JoystickAdapter bill of materials (BOM)
1 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_02x08_Counter_Clockwise | DIP-16_W7.62mm_Socket | J1 |
A2JoystickAdapter design files
The KiCad project lives in the mignon-p/A2JoystickAdapter repository on GitHub; these links point at the commit this page was built from.
- LayoutJoystick.kicad_pcb
A2JoystickAdapter: common questions
How big is the A2JoystickAdapter PCB?
The A2JoystickAdapter measures 29.8 × 33.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the A2JoystickAdapter?
1 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the A2JoystickAdapter design files?
From the mignon-p/A2JoystickAdapter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the A2JoystickAdapter design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which mignon-p chose for the repository.
