About the 7seg-2digit PCB

7seg-2digit is an open source PCB design by mikegoelzer, published on GitHub. It is a 2-layer board measuring 54.1 × 51.9 mm, with 23 components from 13 distinct parts.

Other key parts include the NL27WZ14DFT2G and DA56-11SURKWA. By type, the board carries 10 connectors, 8 resistors, 2 ICs and 2 capacitors.

It belongs with the displays & leds designs in this gallery.

From the project

Simple module for a two-digit 7-segment display

This repository contains the design files for a 2-digit 7-segment display PMOD, modeled after the Digilent PMOD design but without a dual-row Dupont male header pinout. The display is designed for 3.3V operation and uses multiplexing to control both digits using only 8 GPIOs (7 for segments, one for left/right digit select).

- 2-digit 7-segment display - 3.3V operation - Multiplexed design (8 GPIOs control both digits)

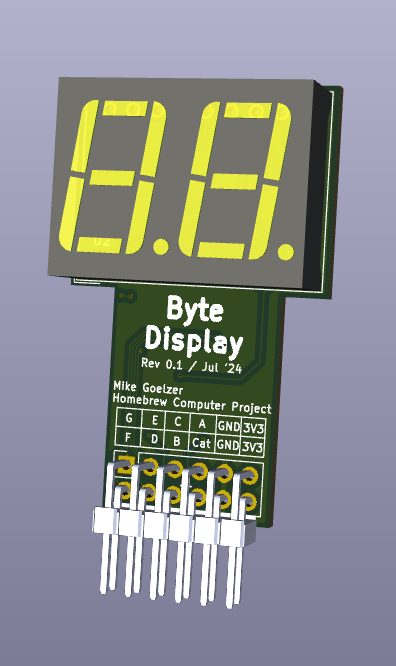

7seg-2digit, from the project README
From the project README

Main components on the 7seg-2digit

NL27WZ14DFT2GDA56-11SURKWA

7seg-2digit bill of materials (BOM)

23 components, 13 distinct parts.

QtyPartRefs
1
NL27WZ14DFT2G
U1
1
DA56-11SURKWA
U2
1
PH2RA-12-UA
J1
1
Conn_02x06_Odd_Even
J2
2
Conn_01x06_Pin
J3, J4
1
PPPC202LFBN-RC
J5
2
Conn_01x20_Pin
J6, J7
1
Conn_02x10_Odd_Even
J8
2
Conn_01x10_Pin
J9, J10
1
VAL**
mouse-bite-2.54mm-slot
1
0.1uF
C1
1
10uF
C2
8
820
R1, R2, R3, R4, R5, R6, R7, R8

7seg-2digit design files

The KiCad project lives in the mikegoelzer/7seg-2digit repository on GitHub; these links point at the commit this page was built from.

7seg-2digit: common questions

How big is the 7seg-2digit PCB?

The 7seg-2digit measures 54.1 × 51.9 mm, has 2 copper layers and is 1.64592 mm thick.

How many components are on the 7seg-2digit?

23 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the 7seg-2digit design files?

From the mikegoelzer/7seg-2digit repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 7seg-2digit design in my own project?

The repository has no license, so all rights stay with mikegoelzer. Use it as a reference, and ask the author before reusing the design.
