Nnv2-smd

mikeysklar·cinco-cinco·nnv2-smd/nnv2-smd.kicad_pcb

Nnv2-smd PCB layout, top view — open source board by mikeysklar

About the Nnv2-smd PCB

Nnv2-smd is an open source PCB design by mikeysklar, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 52.6 × 27.9 mm, with 4 components from 4 distinct parts.

Other key parts include the Nice! Nano (ProMicro). By type, the board carries 2 connectors, 1 IC and 1 switch.

It belongs with the keyboards and iot & wireless designs in this gallery.

From the project

Chording 5 key with 5 layers - full USB keyboard emulation

Cinco-Cinco is a low-profile chording keyboard that uses just five keys to emulate a full keyboard by combining keypresses into chords and utilizing seven layers.

I’ve spent the last year building pocket keyboards. My BUBBY is a daily carry which I use for todo lists. It made me enjoy typing with one hand to the point that I wanted a desktop version, which is what you see here.

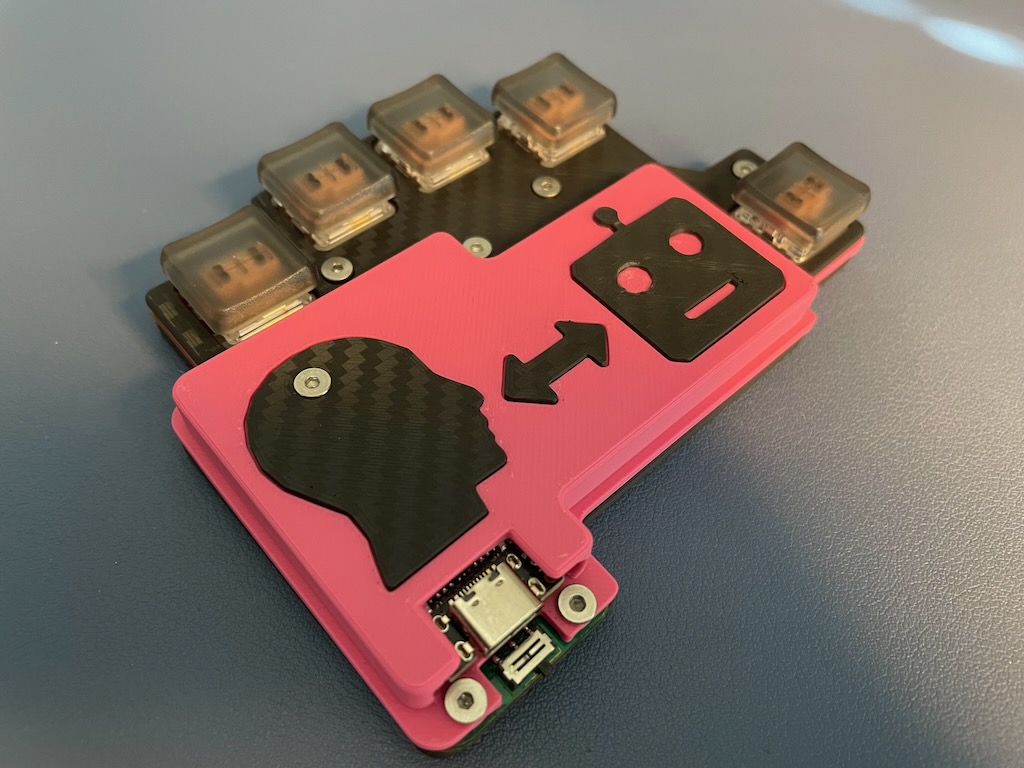

Nnv2-smd, from the project README
From the project README

Main components on the Nnv2-smd

Nice! Nano (ProMicro)

Nnv2-smd bill of materials (BOM)

4 components, 4 distinct parts.

QtyPartRefs
1
Nice! Nano (ProMicro)
U1
1
Conn_01x02_Socket
J1
1
Conn_01x04_Socket
J2
1
SW_SPST
SW1

Nnv2-smd design files

The KiCad project lives in the mikeysklar/cinco-cinco repository on GitHub; these links point at the commit this page was built from.

Nnv2-smd: common questions

How big is the Nnv2-smd PCB?

The Nnv2-smd measures 52.6 × 27.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Nnv2-smd?

4 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Nnv2-smd design files?

From the mikeysklar/cinco-cinco repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Nnv2-smd design in my own project?

Yes, under the terms of its GPL-3.0 license, which mikeysklar chose for the repository.
