About the SIPM02 PCB
SIPM02 is an open source PCB design by mlab-modules, published on GitHub. It is a 2-layer board measuring 30 × 40.1 mm, with 35 components from 18 distinct parts.
Other key parts include the MICROFC-60035-SMT-TR(1) and OPA836IDB. By type, the board carries 12 resistors, 10 connectors, 10 capacitors, 2 ICs and 1 diode.
From the project

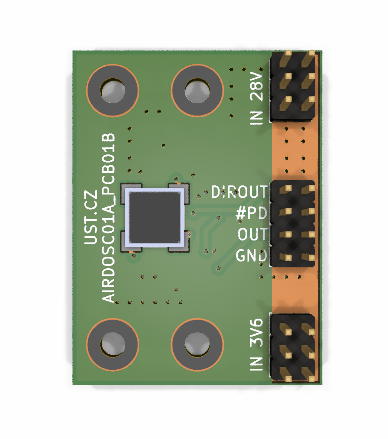

The module is electro-mechanical interface between scintillation crystal and signal processing unit.
Main components on the SIPM02
SIPM02 bill of materials (BOM)
35 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MICROFC-60035-SMT-TR(1) | MicroFC−60035−SMT | U1 |
| 1 | OPA836IDB | SOT-23-6 | U2 |
| 10 | HEADER_2x01_PARALLEL | Straight_2x01 | J1, J2, J3, J4, J5, J6, J7, J8 +2 |
| 1 | M4 | Diode-SMA_Standard | D1 |
| 1 | 15UF/35V 15uF/35V | TantalC_SizeC_Reflow | C1 |
| 1 | 1u5/50V - NFM41PC155B1H3L | FIR_1806 | C2 |
| 1 | 47UF 47uF | TantalC_SizeC_Reflow | C3 |
| 2 | 10u | SMD-0805 | C4, C7 |
| 3 | 100nF | SMD-0805 | C5, C6, C8 |
| 1 | 10NF 10nF | SMD-0805 | C9 |
| 1 | 0R | SMD-0805 | C10 |
| 4 | 10R | SMD-0805 | R1, R2, R4, R5 |
| 1 | 100R | SMD-0805 | R3 |
| 2 | - | SMD-0805 | R6, R7 |
| 1 | 100nF | SMD-0805 | R8 |
| 1 | 470R | SMD-0805 | R9 |
| 1 | 12K 12k | SMD-0805 | R10 |
| 2 | 1k | SMD-0805 | R11, R12 |
SIPM02 design files
The KiCad project lives in the mlab-modules/SIPM02 repository on GitHub; these links point at the commit this page was built from.
SIPM02: common questions
How big is the SIPM02 PCB?
The SIPM02 measures 30 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SIPM02?
35 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SIPM02 design files?
From the mlab-modules/SIPM02 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SIPM02 design in my own project?
The repository has no license, so all rights stay with mlab-modules. Use it as a reference, and ask the author before reusing the design.
