Bottom
About the Bottom PCB
Bottom is an open source PCB design by mmaatthieuu, published on GitHub under the MIT license. It is a 2-layer board measuring 202 × 154.3 mm, with 11 components from 7 distinct parts.
By type, the board carries 6 connectors, 1 diode and 1 resistor.
From the project

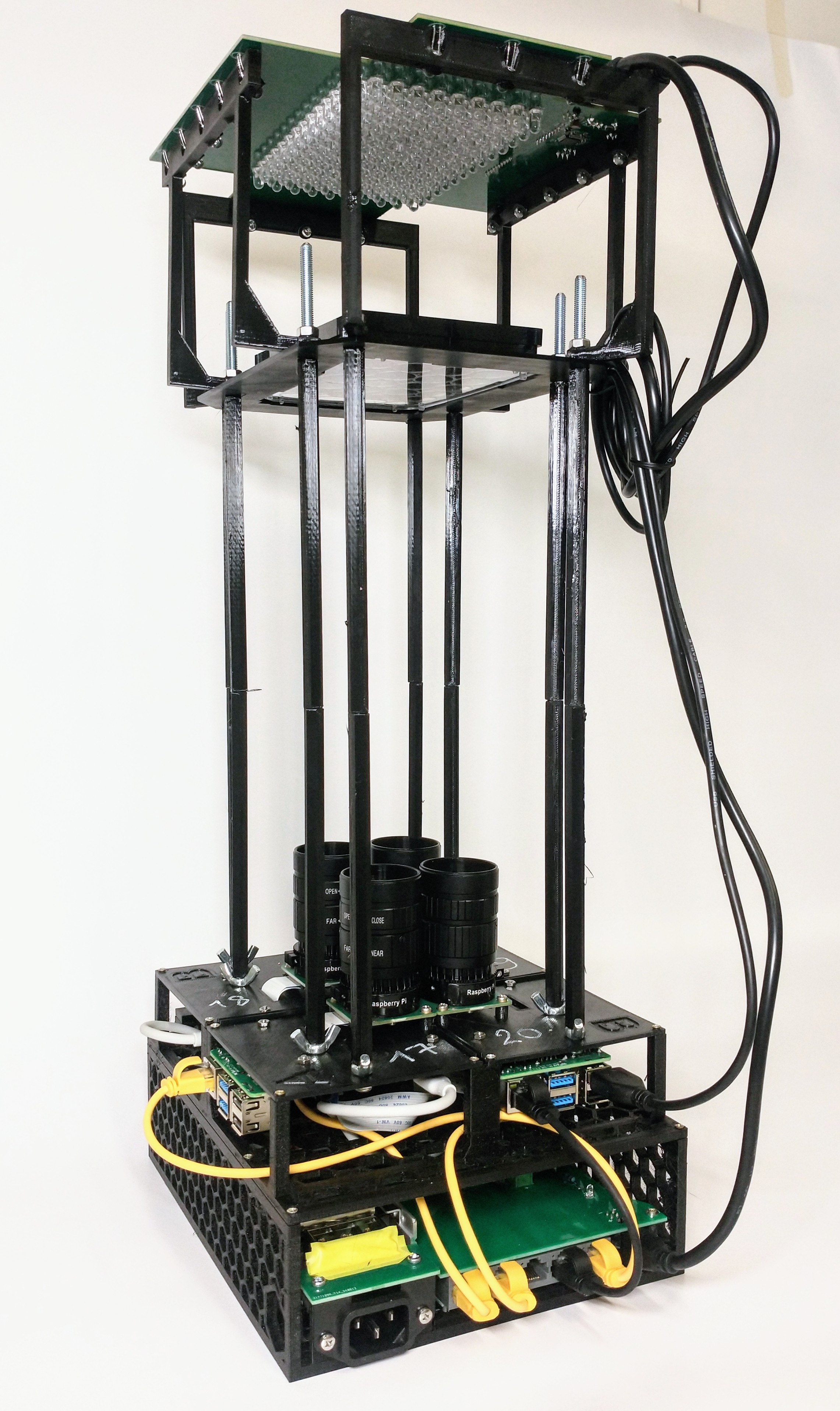

The Wormstation Project: A fully open-source, all-in-one platform designed for ease of use and accessibility, while offering powerful, highly automated solutions for laboratory-grade biological research. Ideal for high-throughput workflows and streamlined experimental processes.
A fully open-source, all-in-one platform designed for ease of use and accessibility, yet offering powerful, highly automated solutions for laboratory-grade biological research. Wormstation is ideal for high-throughput workflows and streamlined experimental processes, particularly in C. elegans studies and other small model organisms.
- Wormstation Controller GitHub: wormstation_controller A user-friendly GUI that remotely controls the Wormstation Client software. It manages camera and LED settings, schedules recordings, and facilitates error checks or updates—all from a single interface.
Bottom bill of materials (BOM)
11 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C591957 Molex Micro-Fit | Molex_Micro-Fit_3.0_43045-0400_2x02_P3.00mm_Horizontal | J1 |
| 4 | Rpi | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J5, J11, J12, J13 |
| 1 | Switch_power | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J10 |
| 2 | Fan_power | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J_FAN_1, J_FAN_2 |
| 1 | ~ | UHP-200A-5_output | UHP_OUT_1 |
| 1 | PWR | LED_D3.0mm | D1 |
| 1 | C70856 300R | R_Axial_DIN0207_L6.3mm_D2.5mm_P15.24mm_Horizontal | R1 |
Bottom design files
The KiCad project lives in the mmaatthieuu/Wormstation repository on GitHub; these links point at the commit this page was built from.
Bottom: common questions
How big is the Bottom PCB?
The Bottom measures 202 × 154.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Bottom?
11 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Bottom design files?
From the mmaatthieuu/Wormstation repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Bottom design in my own project?
Yes, under the terms of its MIT license, which mmaatthieuu chose for the repository.
