EEG-Headset
About the EEG-Headset PCB
EEG-Headset is an open source PCB design by MohamedAlDeep, published on GitHub. It is a 2-layer board measuring 113 × 110.5 mm, with 83 components from 19 distinct parts.
Other key parts include the ADS1299xPAG, LM7805_TO220 and AMS1117-3.3. By type, the board carries 31 connectors, 23 resistors, 21 capacitors, 3 ICs, 2 transistors and 2 diodes.
From the project

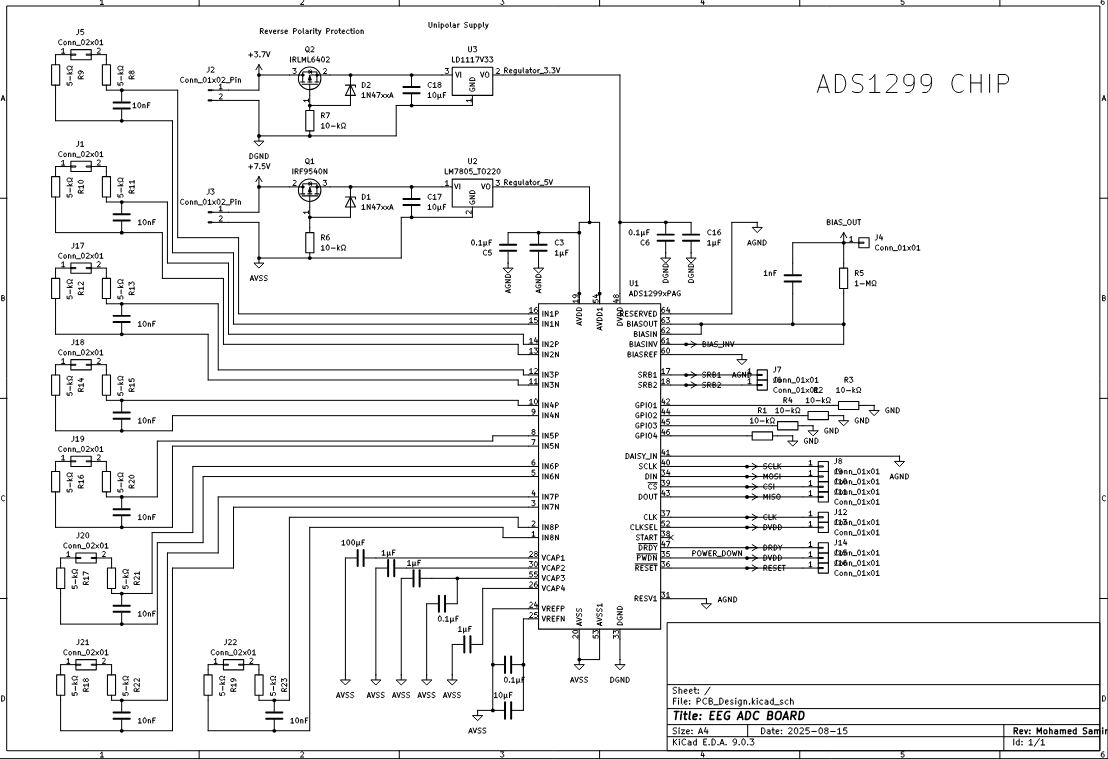

This is the main board for EEG reading headset, in which it uses an analogue to digital converted (ADS1299) chip. Such devices made by companies are expensive, the goal is to make it using the same components but DIY.
It reads brain wave signals and digitizes them into the computer which is called brain-computer interface.
Main components on the EEG-Headset
EEG-Headset bill of materials (BOM)
83 components, 19 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ADS1299xPAG | TQFP-64_10x10mm_P0.5mm | U1 |
| 1 | LM7805_TO220 | SOT-223 | U2 |
| 1 | AMS1117-3.3 | SOT-223 | U3 |
| 1 | FQD4P50 (P-MOSFET) | TO-252-2 | Q1 |
| 1 | IRLML6402 | SOT-23 | Q2 |
| 29 | Conn_01x01 | PinHeader_1x01_P2.00mm_Vertical | J1, J4, J5, J6, J7, J8, J9, J10 +21 |
| 2 | Conn_01x02_Pin | PinHeader_1x02_P1.00mm_Vertical | J2, J3 |
| 1 | Conn_01x02_Pin | PinHeader_1x02_P1.00mm_Vertical | UNPROTECTED 5V SUPPLY |
| 1 | BZT52C5V1-W8 5.1V Zener 500mW | D_SOD-123 | D1 |
| 1 | 1N47xxA | D_SOD-123 | D2 |
| 8 | 10nF | C_0402_1005Metric | C1, C2, C4, C12, C19, C20, C21, C22 |
| 6 | 1μF | C_0402_1005Metric | C3, C8, C9, C10, C15, C16 |
| 3 | 0.1μF | C_0402_1005Metric | C5, C11, C13 |
| 1 | 100μF | C_0402_1005Metric | C7 |
| 1 | 10μF | C_0402_1005Metric | C14 |
| 2 | 10μF | CP_Elec_5x5.4 | C17, C18 |
| 6 | 10-kΩ | R_0603_1608Metric | R1, R2, R3, R4, R6, R7 |
| 1 | 1-MΩ | R_0402_1005Metric | R5 |
| 16 | 5-kΩ | R_0402_1005Metric | R8, R9, R10, R11, R12, R13, R14, R15 +8 |
EEG-Headset design files
The KiCad project lives in the MohamedAlDeep/EEG-Headset repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/PCB_Design.kicad_pcb
- SchematicPCB/PCB_Design.kicad_sch
- BOMBOM/Project_BOM.xlsx
EEG-Headset: common questions
How big is the EEG-Headset PCB?
The EEG-Headset measures 113 × 110.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EEG-Headset?
83 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EEG-Headset design files?
From the MohamedAlDeep/EEG-Headset repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EEG-Headset design in my own project?
The repository has no license, so all rights stay with MohamedAlDeep. Use it as a reference, and ask the author before reusing the design.
