300W-SPWM-Pure-Sine-Wave-Inverter
About the 300W-SPWM-Pure-Sine-Wave-Inverter PCB
300W-SPWM-Pure-Sine-Wave-Inverter is an open source PCB design by moksh-pcb-design, published on GitHub. It is a 2-layer board measuring 99.6 × 51.2 mm, with 39 components from 22 distinct parts.
Other key parts include the LM7805_TO220. By type, the board carries 12 resistors, 7 capacitors, 6 transistors, 5 connectors, 4 diodes and 1 IC.
From the project

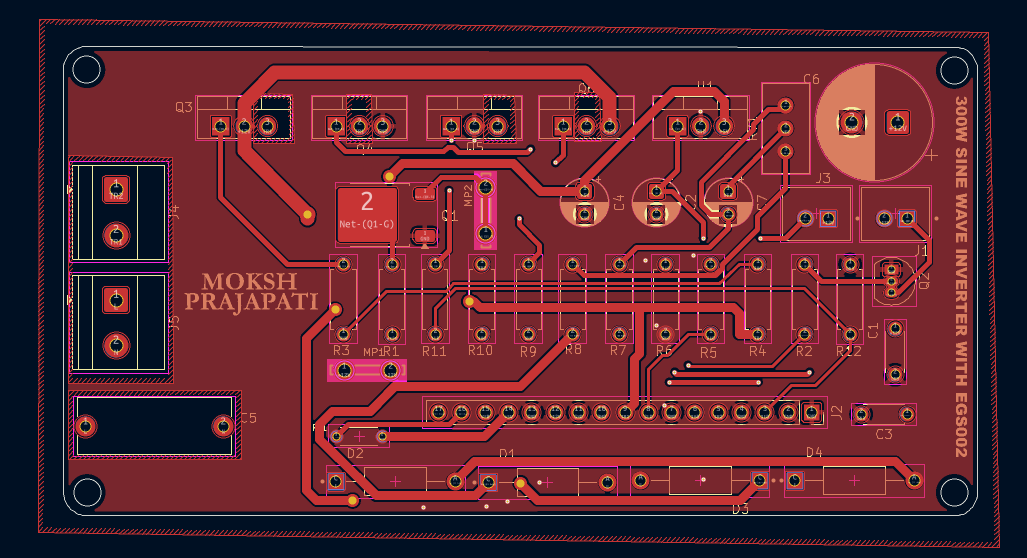

300W SPWM Pure Sine Wave Inverter PCB designed in KiCad 10 using EGS002 controller, IRF3205 MOSFET power stage, transformer interface, cooling fan control and manufacturing-ready outputs.
A 300W SPWM (Sinusoidal Pulse Width Modulation) Pure Sine Wave Inverter PCB designed in KiCad 10.
The PCB implementation was developed based on a reference EGS002 inverter schematic. The project involved PCB floorplanning, component placement, routing, copper pour implementation, ERC/DRC verification, BOM generation, Gerber generation, and manufacturing file preparation.
Main components on the 300W-SPWM-Pure-Sine-Wave-Inverter
300W-SPWM-Pure-Sine-Wave-Inverter bill of materials (BOM)
39 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM7805_TO220 | TO-220-3_Vertical | U1 |
| 1 | NMOS | TO-252-2 | Q1 |
| 1 | S8050 | TO-92_Inline | Q2 |
| 4 | IRF3205 | TO-220-3_Vertical | Q3, Q4, Q5, Q6 |
| 1 | FAN | m1 | J1 |
| 1 | CONN_01X17_PIN Conn_01x17_Pin | PinSocket_1x17_P2.54mm_Vertical | J2 |
| 1 | SWITCH | m1 | J3 |
| 1 | TR/IN | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J4 |
| 1 | AC/OUT | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J5 |
| 2 | 7471287 | m4 | MP1, MP2 |
| 1 | 10K | m3 | RT1 |
| 1 | 10K | Potentiometer_Bourns_3296W_Vertical | RV1 |
| 4 | FR207G | m2 | D1, D2, D3, D4 |
| 2 | 0.1UF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1, C3 |
| 2 | 1UF 1uF | CP_Radial_D5.0mm_P2.50mm | C2, C4 |
| 1 | 2.2UF 2.2uF | C_Rect_L16.5mm_W6.0mm_P15.00mm_MKT | C5 |
| 1 | 2200UF 2200uF | CP_Radial_D12.5mm_P5.00mm | C6 |
| 1 | 10UF 10uF | CP_Radial_D5.0mm_P2.50mm | C7 |
| 2 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
| 4 | 10E | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R5, R9, R11 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4, R6, R10, R12 |
| 2 | 100K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7, R8 |
