About the 2023-2024-4GP-SELLIER--VANDER-EECKEN PCB

2023-2024-4GP-SELLIER--VANDER-EECKEN is an open source PCB design by MOSH-Insa-Toulouse, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 68.6 × 53.3 mm, with 20 components from 17 distinct parts.

Other key parts include the ltc1050cn8 and MCP41050. By type, the board carries 5 resistors, 4 connectors, 4 capacitors and 2 ICs.

It belongs with the displays & leds and iot & wireless designs in this gallery.

From the project

Ce projet utilise un capteur en graphène avec Arduino pour mesurer la contrainte, amélioré par un circuit d'amplification réglable via un potentiomètre digital. Inclut Bluetooth, écran OLED, encodeur rotatoire, et design modulaire via KiCad pour facilité et flexibilité.

Ce projet introduit une approche novatrice pour la mesure de contrainte en exploitant les propriétés uniques du graphène à travers un capteur dédié, envisagé comme une alternative prometteuse aux jauges de contrainte conventionnelles. Grâce à l'emploi du graphène, connu pour sa sensibilité et sa flexibilité, ce capteur offre un potentiel intéressant pour une variété d'applications de mesure. Le système est bâti autour d'une plateforme Arduino, facilitant ainsi son accessibilité et sa manipulation pour tous.

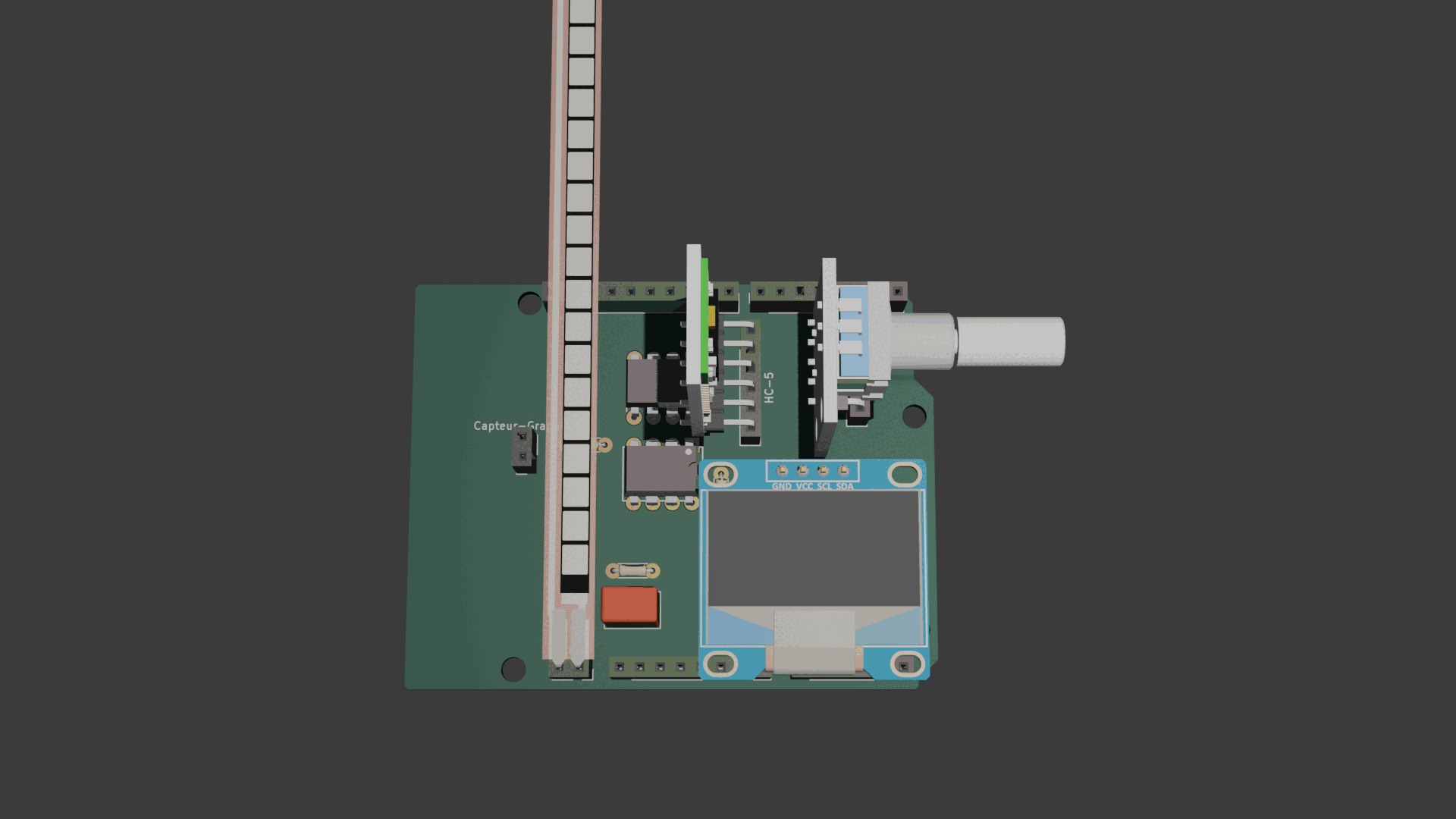

2023-2024-4GP-SELLIER--VANDER-EECKEN, from the project README — From the project README

Main components on the 2023-2024-4GP-SELLIER--VANDER-EECKEN

ltc1050cn8MCP41050

2023-2024-4GP-SELLIER--VANDER-EECKEN bill of materials (BOM)

20 components, 17 distinct parts.

Qty	Part	Footprint	Refs
1	ltc1050cn8 LTC1050#CN8	LTC1050	U1
1	MCP41050	MCP	U2
1	Power	PinSocket_1x08_P2.54mm_Vertical	J1
1	Digital/PWM	PinSocket_1x10_P2.54mm_Vertical	J2
1	Analog	PinSocket_1x06_P2.54mm_Vertical	J3
1	Digital/PWM	PinSocket_1x08_P2.54mm_Vertical	J4
1	Capteur Graphite	PinSocket_1x02_P2.54mm_Vertical	Capteur-Graphite1
1	Flex	PinSocket_1x02_P2.54mm_Vertical	Flex1
1	HC-05	PinSocket_1x06_P2.54mm_Vertical	HC-5
1	KY-040	PinSocket_1x05_P2.54mm_Vertical	Pot1
1	SSD1306	PinSocket_1x04_P2.54mm_Vertical	SSD1306
3	100n	C_Disc_D4.3mm_W1.9mm_P5.00mm	C1, C2, C4
1	1u	C_Rect_L7.0mm_W4.5mm_P5.00mm	C3
2	100k	R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal	R1, R2
1	1k	R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal	R3
1	10k	R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal	R4
1	47k	R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal	R5

2023-2024-4GP-SELLIER--VANDER-EECKEN design files

The KiCad project lives in the MOSH-Insa-Toulouse/2023-2024-4GP-SELLIER--VANDER-EECKEN repository on GitHub; these links point at the commit this page was built from.

LayoutFichiers KiCad/Kicad Projet Capteur.kicad_pcb
SchematicFichiers KiCad/Kicad Projet Capteur.kicad_sch

2023-2024-4GP-SELLIER--VANDER-EECKEN: common questions

How big is the 2023-2024-4GP-SELLIER--VANDER-EECKEN PCB?

The 2023-2024-4GP-SELLIER--VANDER-EECKEN measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 2023-2024-4GP-SELLIER--VANDER-EECKEN?

20 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the 2023-2024-4GP-SELLIER--VANDER-EECKEN design files?

From the MOSH-Insa-Toulouse/2023-2024-4GP-SELLIER--VANDER-EECKEN repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 2023-2024-4GP-SELLIER--VANDER-EECKEN design in my own project?

Yes, under the terms of its GPL-3.0 license, which MOSH-Insa-Toulouse chose for the repository.
