Adapter 2U27HP3uCv2

MostlyCoraGrace·EurorackButtonBoard·KiCAD/Adapter_2U27HP3uCv2/Adapter_2U27HP3uCv2.kicad_pcb

Adapter 2U27HP3uCv2 PCB layout, top view — open source board by MostlyCoraGrace
Simulate this board

About the Adapter 2U27HP3uCv2 PCB

Adapter 2U27HP3uCv2 is an open source PCB design by MostlyCoraGrace, published on GitHub under the MIT license. It is a 2-layer board measuring 19.2 × 133.4 mm, with 6 components from 1 distinct parts.

It belongs with the audio and keyboards designs in this gallery.

From the project

A modular, hot-swappable, and patchable, Eurorack-compatible simrig/buttonboard system

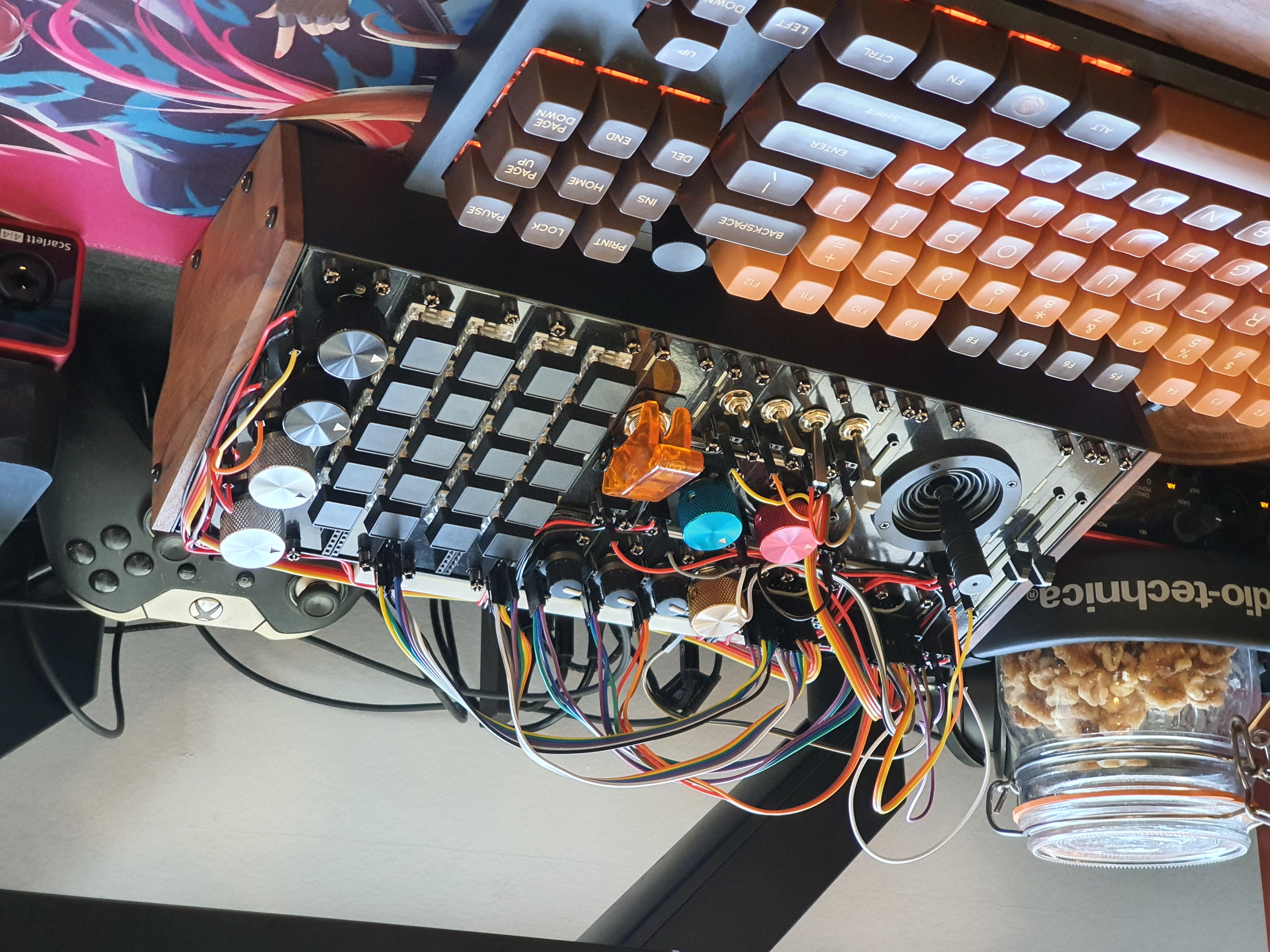

Adapter 2U27HP3uCv2, from the project README
From the project README

Adapter 2U27HP3uCv2 bill of materials (BOM)

6 components, 1 distinct parts.

QtyPartRefs
6
Mechanical_Pad_Solder_Linkage
MP1, MP2, MP3, MP4, MP5, MP6

Adapter 2U27HP3uCv2 design files

The KiCad project lives in the MostlyCoraGrace/EurorackButtonBoard repository on GitHub; these links point at the commit this page was built from.

Adapter 2U27HP3uCv2: common questions

How big is the Adapter 2U27HP3uCv2 PCB?

The Adapter 2U27HP3uCv2 measures 19.2 × 133.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Adapter 2U27HP3uCv2?

6 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the Adapter 2U27HP3uCv2 design files?

From the MostlyCoraGrace/EurorackButtonBoard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Adapter 2U27HP3uCv2 design in my own project?

Yes, under the terms of its MIT license, which MostlyCoraGrace chose for the repository.
