HV2LV-PowerJST

mpek29·HV2LV-PowerJST·design/HV2LV-PowerJST/HV2LV-PowerJST.kicad_pcb

HV2LV-PowerJST PCB layout, top view — open source board by mpek29

About the HV2LV-PowerJST PCB

HV2LV-PowerJST is an open source PCB design by mpek29, published on GitHub. It is a 2-layer board measuring 50.5 × 20.2 mm, with 9 components from 5 distinct parts.

Other key parts include the AMS1117-3.3. By type, the board carries 4 capacitors, 2 connectors, 1 IC, 1 diode and 1 resistor.

From the project

🔋 Regulator 4.8V-15V -> 3.3V

HV2LV-PowerJST is an open-source PCB designed to step down 4.8V - 15V to a stable 3.3V output using an AMS1117 voltage regulator. The board features JST-PH connectors for easy integration into embedded projects, IoT devices, and prototyping setups.

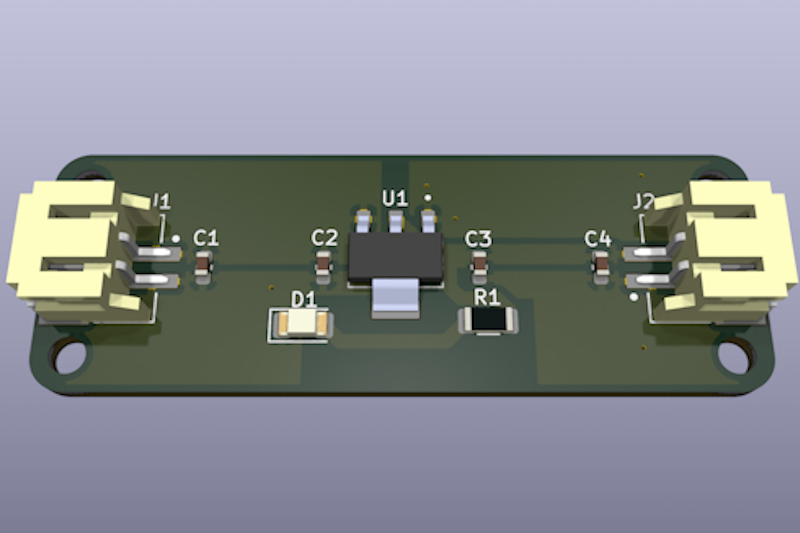

HV2LV-PowerJST, from the project README
From the project README

Main components on the HV2LV-PowerJST

HV2LV-PowerJST bill of materials (BOM)

9 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U1
2
S2B-PH-SM4-TB_LF__SN_
J1, J2
1
LED
D1
4
100 nF
C1, C2, C3, C4
1
1k
R1

HV2LV-PowerJST design files

The KiCad project lives in the mpek29/HV2LV-PowerJST repository on GitHub; these links point at the commit this page was built from.

HV2LV-PowerJST: common questions

How big is the HV2LV-PowerJST PCB?

The HV2LV-PowerJST measures 50.5 × 20.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HV2LV-PowerJST?

9 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the HV2LV-PowerJST design files?

From the mpek29/HV2LV-PowerJST repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the HV2LV-PowerJST design in my own project?

The repository has no license, so all rights stay with mpek29. Use it as a reference, and ask the author before reusing the design.
