Toroufc lpad
About the Toroufc lpad PCB
Toroufc lpad is an open source PCB design by mustang51, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 20 × 109.3 mm, with 11 components from 3 distinct parts.
By type, the board carries 5 switches, 5 diodes and 1 connector.
It belongs with the keyboards designs in this gallery.
From the project

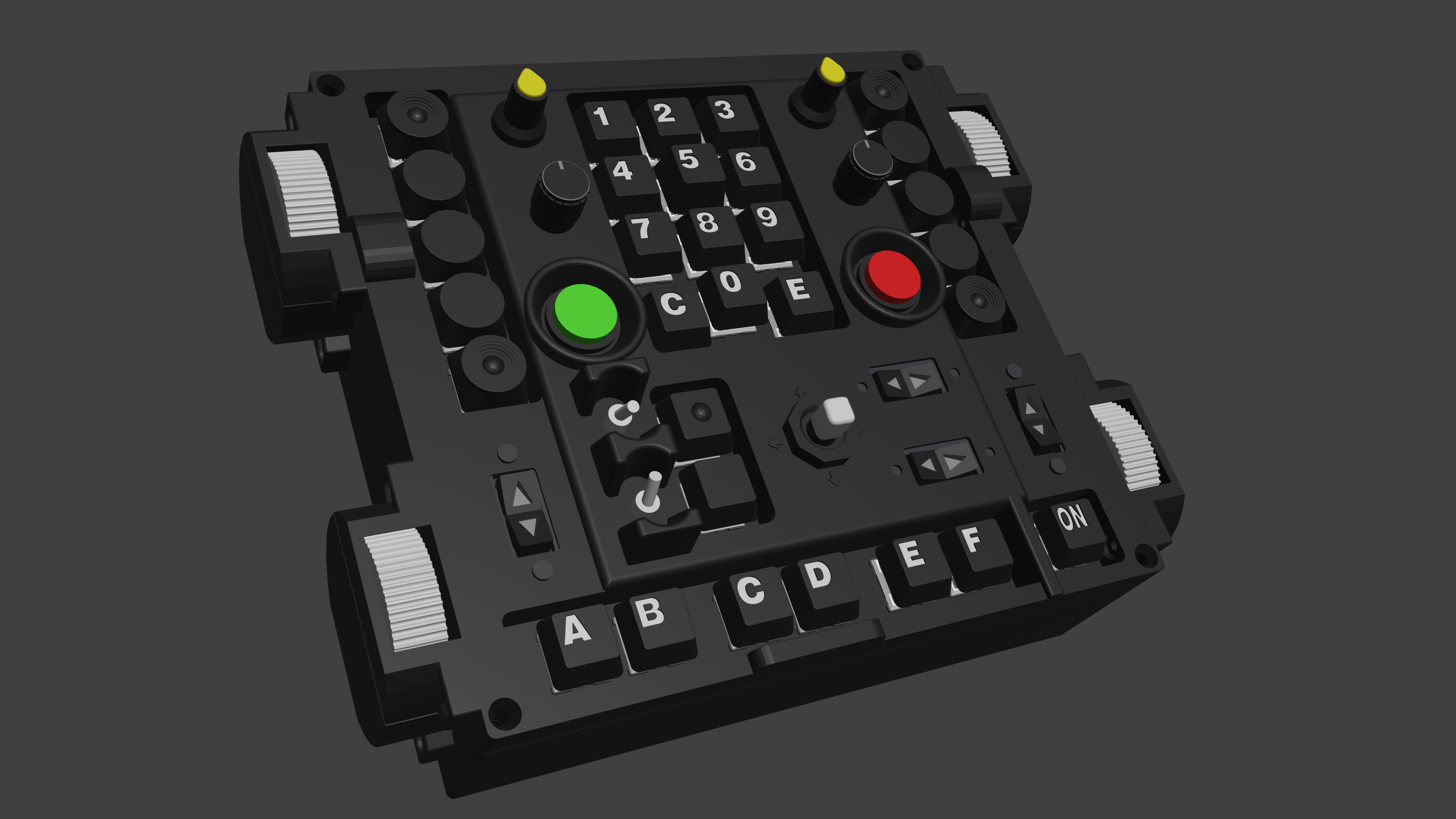

USB Up Front Controller
USB Up Front Controller, attempting to represent multiple cockpits (F/A-18, F-16, F-15E, A-10C, AV-8B...)
12 button numerical pad. 10 button in both left and right vertical pads. 7 button in horizontal pad. 2 rotary encoders with push. 2 big buttons. 2 small buttons. 4 rockers (up/down). 2 triple position lever-switches, one with safety cover. 4 way dobber lever. 6 analog axis (4 lateral, 2 frontal).
Toroufc lpad bill of materials (BOM)
11 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x06_Male | JST_XH_B6B-XH-A_1x06_P2.50mm_Vertical | J1 |
| 5 | SW_Push | SW_Cherry_MX_PCB_1.00u | SW1, SW2, SW3, SW4, SW5 |
| 5 | 1N4148W | D_SOD-123 | D1, D2, D3, D4, D5 |
Toroufc lpad design files
The KiCad project lives in the mustang51/toro-ufc repository on GitHub; these links point at the commit this page was built from.
Toroufc lpad: common questions
How big is the Toroufc lpad PCB?
The Toroufc lpad measures 20 × 109.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Toroufc lpad?
11 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Toroufc lpad design files?
From the mustang51/toro-ufc repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Toroufc lpad design in my own project?
Yes, under the terms of its BSD-3-Clause license, which mustang51 chose for the repository.
