CONIO-A
About the CONIO-A PCB
CONIO-A is an open source PCB design by myriadrf, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 202.5 × 50 mm, with 33 components from 11 distinct parts.
Other key parts include the PCF8574ADW. By type, the board carries 9 diodes, 8 connectors, 6 jumpers, 3 fuses, 2 ICs and 2 capacitors.
From the project
LibreCellular remote console and power/reset control boards
The CONIO boards provide remote console and power/reset control for SDR base stations in the [LibreCellular CI hardware platform][1].

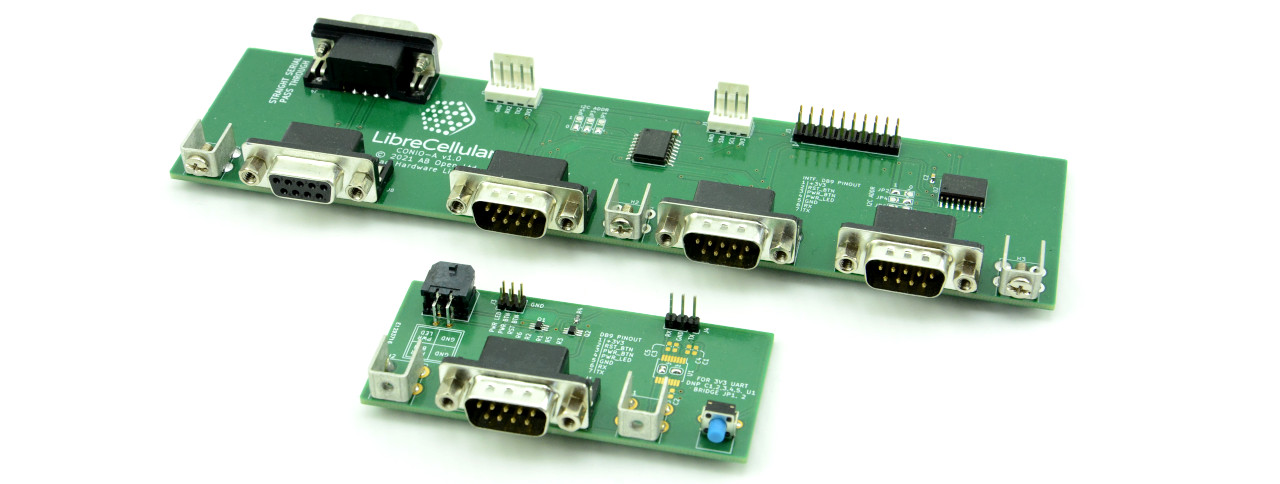

CONIO-A. Controller (A) end. CONIO-B. Base station (B) end.
/hardware/ / BOM/ - Bill of materials Gerbers/ - Manufacturing files KiCAD/ - KiCAD schematic and layout files Mechanical/ - STEP files PDF/ - Schematic and layout PDFs
Main components on the CONIO-A
CONIO-A bill of materials (BOM)
33 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | PCF8574ADW | SOIC-16W_7.5x10.3mm_P1.27mm | U1, U2 |
| 1 | Molex 22272041 Molex | Molex_KK-254_AE-6410-04A_1x04_P2.54mm_Vertical | J1 |
| 1 | Molex 22272051 | Molex_KK-254_AE-6410-05A_1x05_P2.54mm_Vertical | J2 |
| 1 | Conn_02x10_Odd_Even | PinSocket_2x10_P2.54mm_Vertical_Flipped | J3 |
| 4 | DB9_Male_MountingHoles | Assman_A-DS_09_AKG-T2_Male_RA_TH_DB9 | J4, J5, J6, J7 |
| 1 | DB9_Female_MountingHoles | Assman_A-DS_09_AKG-T2_Male_RA_TH_DB9 | J8 |
| 3 | 0.05A Bourns | Fuse_1210_3225Metric_Pad1.42x2.65mm_HandSolder | F1, F2, F3 |
| 3 | Keystone 7689 | Keystone_7689_RA_PCB_Screw_Terminal | H1, H2, H3 |
| 6 | SolderJumper_3_Open | SolderJumper-3_P2.0mm_Open_TrianglePad1.0x1.5mm | JP1, JP2, JP3, JP4, JP5, JP6 |
| 9 | MMBZxx | SOT-23 | D1, D2, D3, D4, D5, D6, D7, D8 +1 |
| 2 | 100n 25V | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2 |
CONIO-A design files
The KiCad project lives in the myriadrf/lc-conio repository on GitHub; these links point at the commit this page was built from.
CONIO-A: common questions
How big is the CONIO-A PCB?
The CONIO-A measures 202.5 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CONIO-A?
33 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the CONIO-A design files?
From the myriadrf/lc-conio repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CONIO-A design in my own project?
It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
