About the Nucleoappboard PCB
Nucleoappboard is an open source PCB design by najeb-pcb, published on GitHub. It is a 2-layer board measuring 85 × 53 mm, with 21 components from 8 distinct parts.
Other key parts include the DM-OLED096-636, NUCLEO-L412KB and JDY-08-jdy-08. By type, the board carries 10 resistors, 3 ICs, 3 LEDs, 3 diodes and 2 switches.
From the project

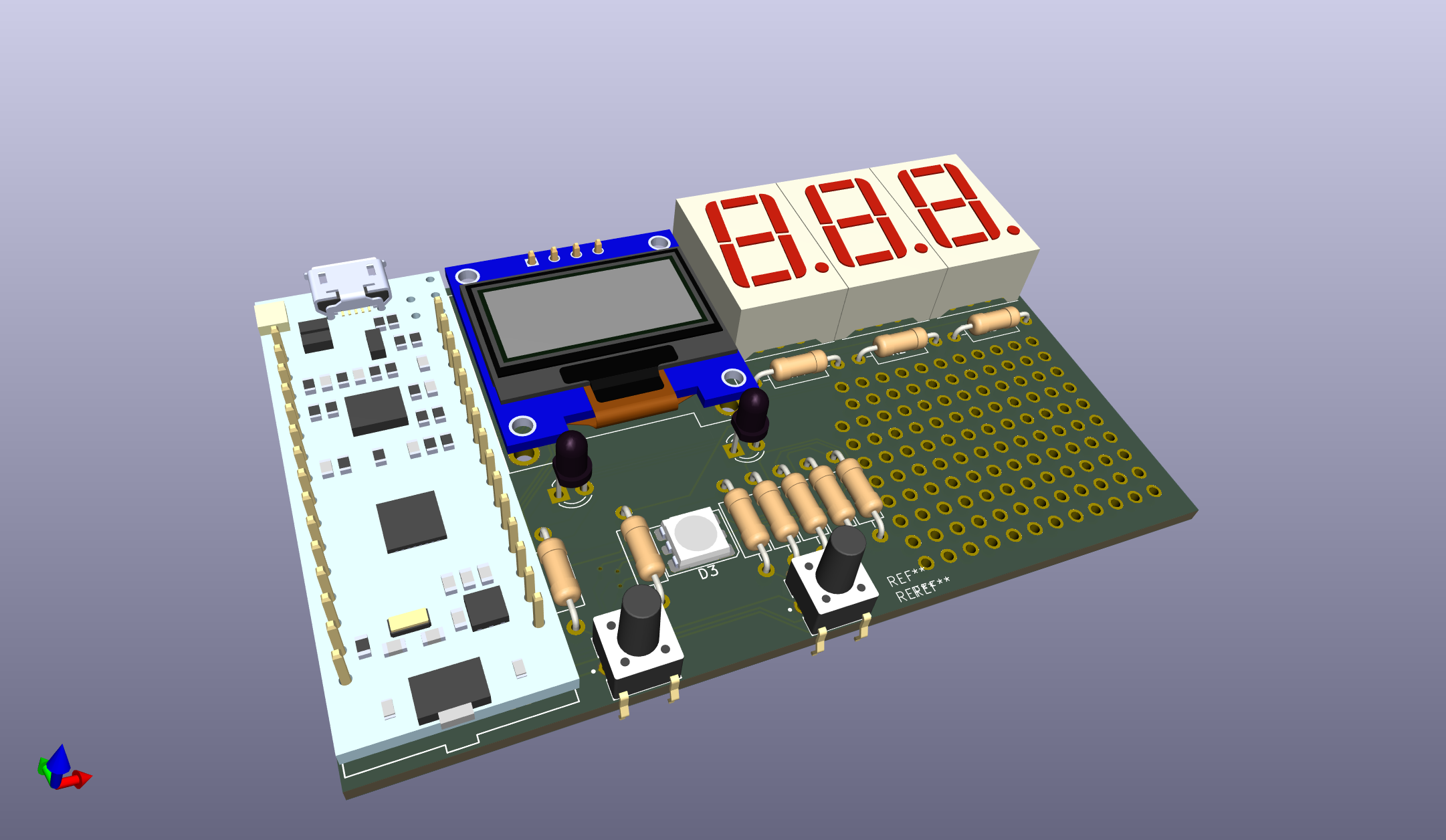

STM32 Nucleo-compatible application board for education and embedded prototyping
A custom STM32 Nucleo-compatible application board designed for education, rapid prototyping, and embedded systems experimentation.
The STM32 Nucleo Application Board is developed to: - Support hands-on learning for STM32 microcontrollers - Serve as a reusable application board across multiple STM32 Nucleo variants - Provide a stable hardware platform for embedded firmware development and testing
Main components on the Nucleoappboard
Nucleoappboard bill of materials (BOM)
21 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DM-OLED096-636 | MODULE_DM-OLED096-636 | U1 |
| 1 | NUCLEO-L412KB | MODULE_NUCLEO-L412KB | U3 |
| 1 | JDY-08-jdy-08 | JDY-08_HandSoldering | U4 |
| 2 | BUTT-2 | SW_BUTT-2 | S1, S2 |
| 3 | LTS-6960HR | 7SegmentLED_LTS6760_LTS6780 | AFF1, AFF2, AFF3 |
| 2 | SFH4346 | LED_D3.0mm_IRBlack | D1, D2 |
| 1 | Inolux_IN-P55TATRGB | LED_Inolux_IN-P55TATRGB_PLCC6_5.0x5.5mm_P1.8mm | D3 |
| 10 | R_US | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2, R3, R4, R5, R6, R7, R8, R9 +2 |
Nucleoappboard design files
The KiCad project lives in the najeb-pcb/nucleoappboard repository on GitHub; these links point at the commit this page was built from.
- LayoutSTM32AppBoard.kicad_pcb
- SchematicSTM32AppBoard.kicad_sch
Nucleoappboard: common questions
How big is the Nucleoappboard PCB?
The Nucleoappboard measures 85 × 53 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Nucleoappboard?
21 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the Nucleoappboard design files?
From the najeb-pcb/nucleoappboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Nucleoappboard design in my own project?
The repository has no license, so all rights stay with najeb-pcb. Use it as a reference, and ask the author before reusing the design.
