About the PowerRiser PCB
PowerRiser is an open source PCB design by nandfarm, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 119.1 × 23 mm, with 13 components from 10 distinct parts.
Other key parts include the AS0BC21-S30BM-7H. By type, the board carries 5 resistors, 3 capacitors, 1 IC, 1 connector and 1 diode.
It belongs with the iot & wireless designs in this gallery.
From the project

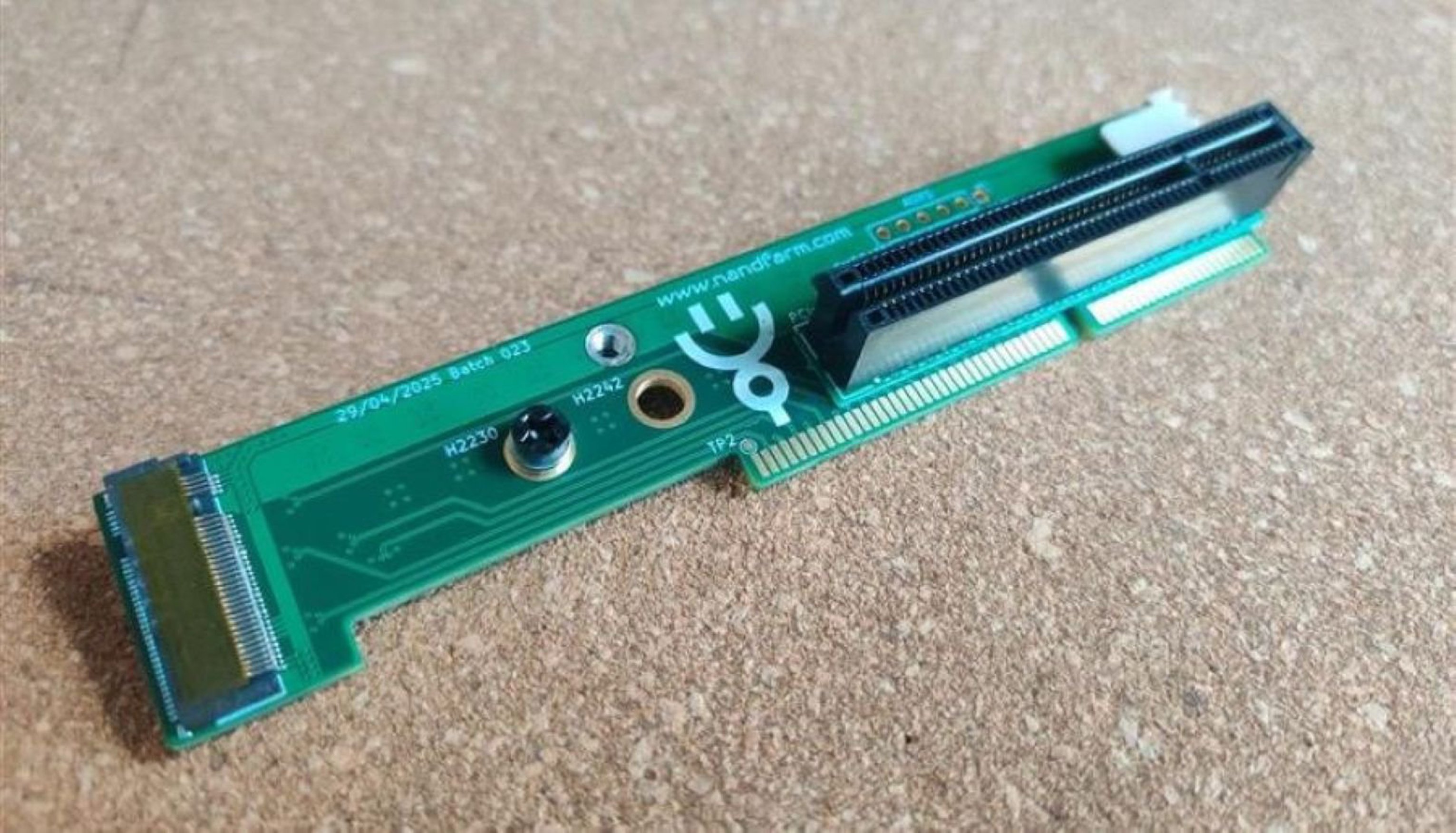

PowerRiser – NVMe 2230 and 2242 Expansion board for Lenovo Tiny 5 Series
Best for European locations (EUR currency):
Best for International locations (USD currency):
PowerRiser is a custom-designed passive riser board that allows you to break out the proprietary Lenovo Tiny 5 series PCIe connector into a standard open-ended x8 PCIe slot, while also providing an additional M.2 NVMe slot (2230/2242 sizes only) for further storage expansion. This board was specifically designed for select Lenovo Tiny 5 series systems (8th/9th gen), such as:
Main components on the PowerRiser
PowerRiser bill of materials (BOM)
13 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AS0BC21-S30BM-7H | CONN-SMD_AS0BC21-S30BM-7H | U1 |
| 1 | Bus_PCI_Express_x8 | CONN-TH_98P-P1.00-V_3183-XXXXXPXT | J1 |
| 1 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | AUX1 |
| 1 | ~ | Mx20qx_PCIe_FP | Conn1 |
| 1 | LED | LED_0805_2012Metric | D3 |
| 2 | 47u | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C3 |
| 1 | 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2 |
| 3 | 0R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R3 |
| 1 | 10k | R_0805_2012Metric | R6 |
| 1 | 220 | R_0805_2012Metric | R7 |
PowerRiser design files
The KiCad project lives in the nandfarm/PowerRiser repository on GitHub; these links point at the commit this page was built from.
PowerRiser: common questions
How big is the PowerRiser PCB?
The PowerRiser measures 119.1 × 23 mm, has 4 copper layers and is 1.5842 mm thick.
How many components are on the PowerRiser?
13 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the PowerRiser design files?
From the nandfarm/PowerRiser repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PowerRiser design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which nandfarm chose for the repository.
