Presentinator

nathaniel-fargo·presentinator·hw/launch-it.kicad_pcb

Presentinator PCB layout, top view — open source STM32 board by nathaniel-fargo
Simulate this board

About the Presentinator PCB

Presentinator is an open source STM32 PCB design by nathaniel-fargo, published on GitHub under the MIT license. It is a 2-layer board measuring 120 × 85 mm, with 99 components from 26 distinct parts.

Its main chip is the STM32F030F4P6, from the STM32 family. Other key parts include the MCP1603T-330I/OS, IS31FL3731-SALS2 and CAP1203-1-SN. By type, the board carries 67 LEDs, 12 resistors, 7 capacitors, 4 ICs, 2 transistors and 2 battery holders.

From the project

A fun Christmas PCB game

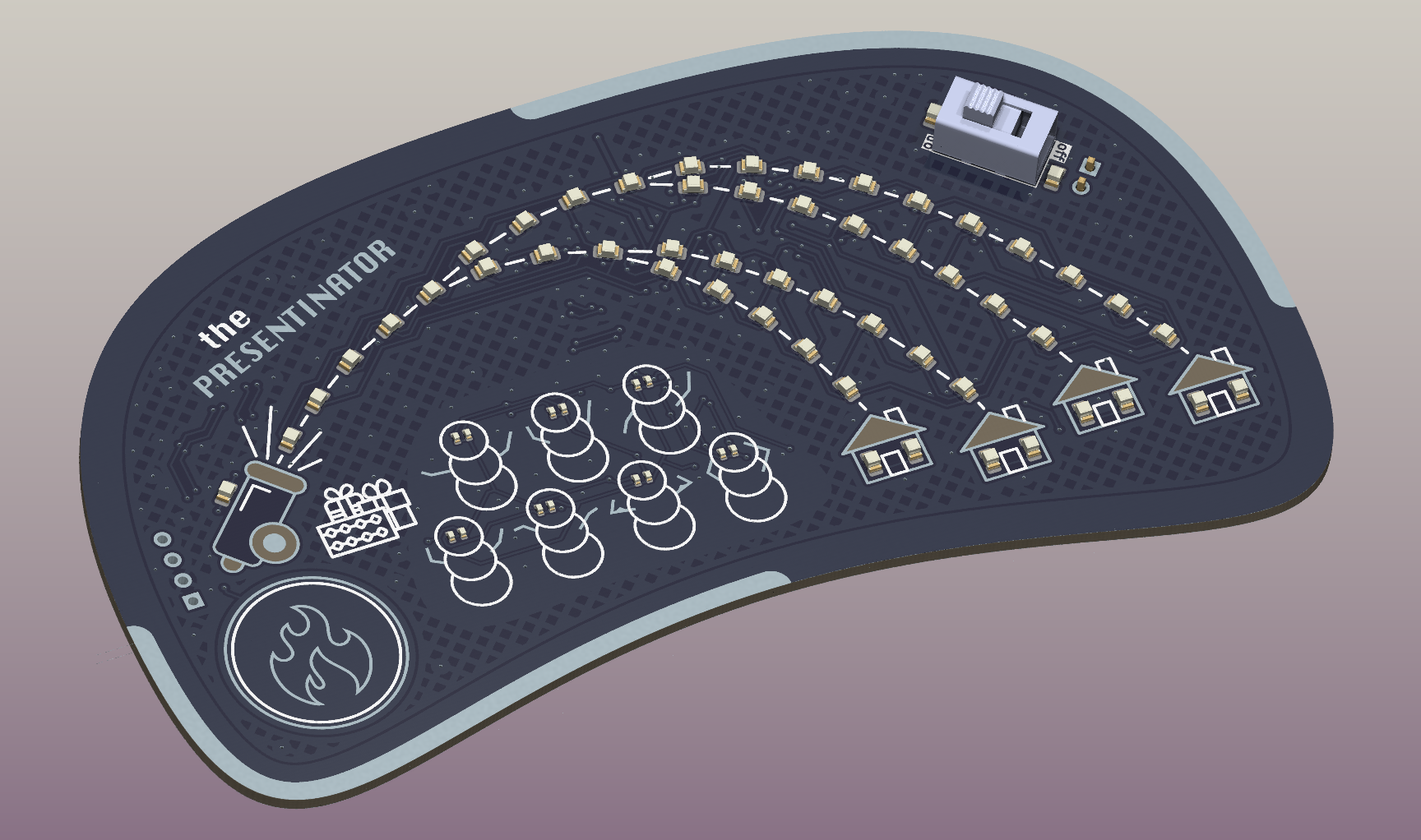

Presentinator, from the project README
From the project README

Main components on the Presentinator

STM32F030F4P6MCP1603T-330I/OSIS31FL3731-SALS2CAP1203-1-SN

Presentinator bill of materials (BOM)

99 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F030F4P6
STM32F030F4
U1
1
MCP1603T-330I/OS
MCP1603
U2
1
IS31FL3731-SALS2
IS31FL3731-SA
U3
1
CAP1203-1-SN
Microchip
U4
1
1188-VIBRATING-MOTOR
Motor_DC
M1
1
PJA3401A_R1_00001
PJA3401A
Q1
1
AO3400A
Q2
1
SWD
J1
1
1908-CR2032
CR2032
BT1
1
343-BAT-HLD-003-SMT
CR2032
BT2
1
2223-SLW-105558-2A-N-D
SLW-105558-2A-N-D
S1
1
B1701NB--20D000114U1930
LED
DB1
1
B1701URO-20D000114U1930
LED
DB2
5
B1701URO-20D000114U1930
LED_Small
DC1, DH2, DH4, DH6, DH8
4
B1701NB--20D000114U1930
LED_Small
DH1, DH3, DH5, DH7
42
B1701UY--20D000214U1930
LED_Small
DP1, DP2, DP3, DP4, DP5, DP6, DP7, DP8 +34
14
EAST10052WA0
LED_Small
DS1, DS2, DS3, DS4, DS5, DS6, DS7, DS8 +6
1
RB521S30T1G
D25
1
MAMK2520T4R7M
L1
7
4U7
4u7
C1, C2, C3, C4, C5, C6, C7
Show 6 more
QtyPartRefs
1
100
R1
5
10K
10k
R2, R3, R10, R11, R12
1
0
R4
2
100K
100k
R5, R6
1
20K
20k
R7
2
1k
R8, R9

Presentinator design files

The KiCad project lives in the nathaniel-fargo/presentinator repository on GitHub; these links point at the commit this page was built from.

Presentinator: common questions

What microcontroller does the Presentinator use?

The Presentinator is built around the STM32F030F4P6, from the STM32 family.

How big is the Presentinator PCB?

The Presentinator measures 120 × 85 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Presentinator?

99 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Presentinator design files?

From the nathaniel-fargo/presentinator repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Presentinator design in my own project?

Yes, under the terms of its MIT license, which nathaniel-fargo chose for the repository.

Can I test firmware for the Presentinator without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
