AlcatelRight PCB layout, top view — open source board by nearestexit
Simulate this board

About the AlcatelRight PCB

AlcatelRight is an open source PCB design by nearestexit, published on GitHub under the MIT license. It is a 2-layer board measuring 137.5 × 115.3 mm, with 93 components from 9 distinct parts.

By type, the board carries 45 diodes, 8 resistors, 1 connector and 1 switch.

It belongs with the keyboards designs in this gallery.

From the project

Custom keyboard using the caps from the Alcatel-Lucent MMK, built with Onshape and KiCad

Custom keyboard designed to use the GMK keycaps from the Alcatel-Lucent MMK. Designed in Onshape and KiCad. Powered by QMK.

I designed this for fun. It is not an entry-level keyboard, and it is not intended for a Group Buy. I'm sharing the production and source files with the goal of serving as a reference for other designers.

Case Source (Onshape): https://cad.onshape.com/documents/5081b96c77523c56bb0f8f6b/w/91dc47074a8fd3b0ca2e25d0/e/6e8ed4262c52380f9f8bfe9b

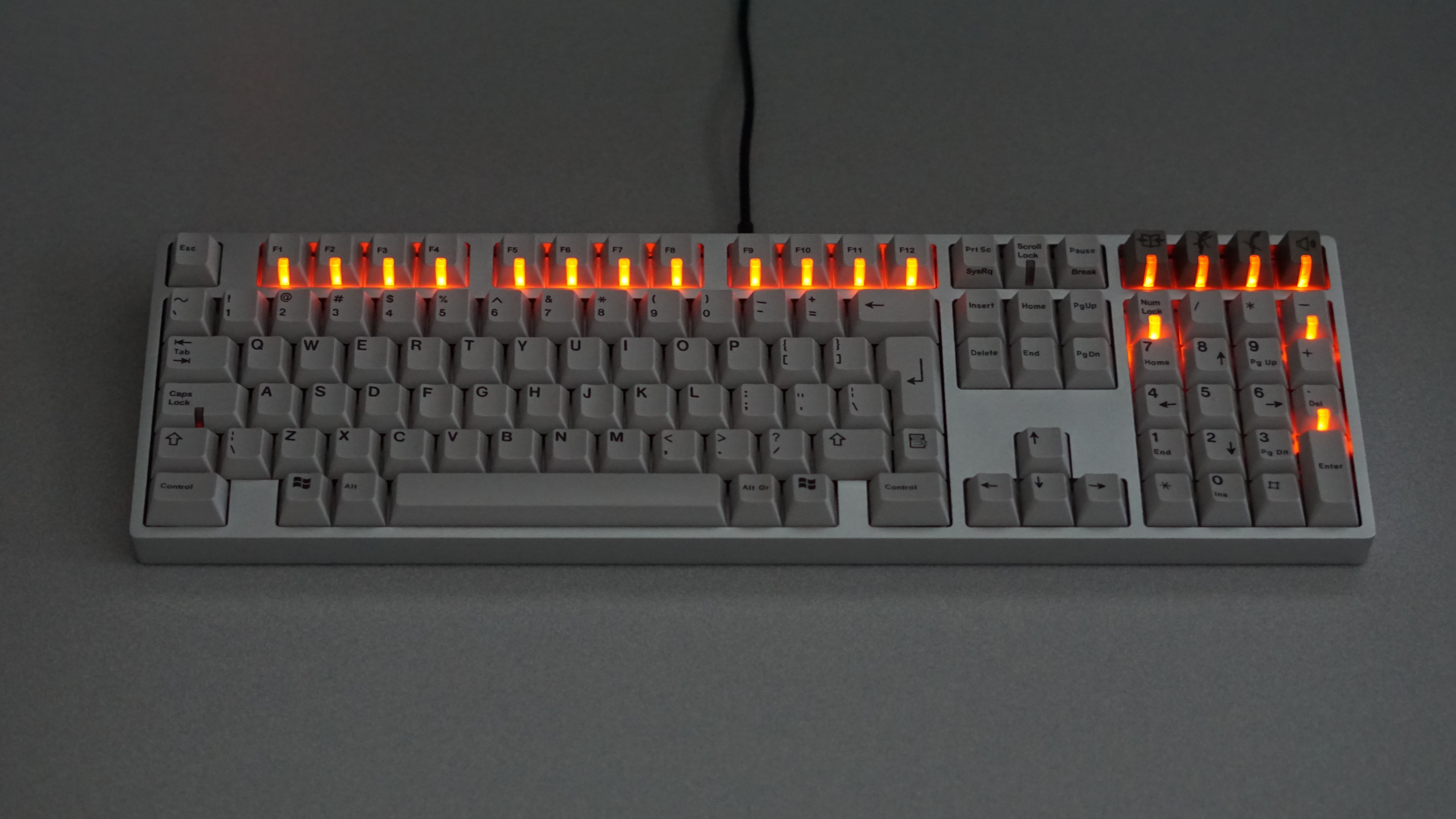

AlcatelRight, from the project README
From the project README

AlcatelRight bill of materials (BOM)

93 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Conn_01x20_Pin
J1
37
MX_SW_solder
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +29
1
MX_SW_solder
MX38
1
MX_stab
S1
6
~
D3, D4, D5, D6, D8, D9
2
LED_Small
D7, D10
37
D_Small
D11, D12, D13, D14, D15, D16, D17, D18 +29
6
470
R3, R4, R5, R6, R8, R9
2
1k
R7, R10
