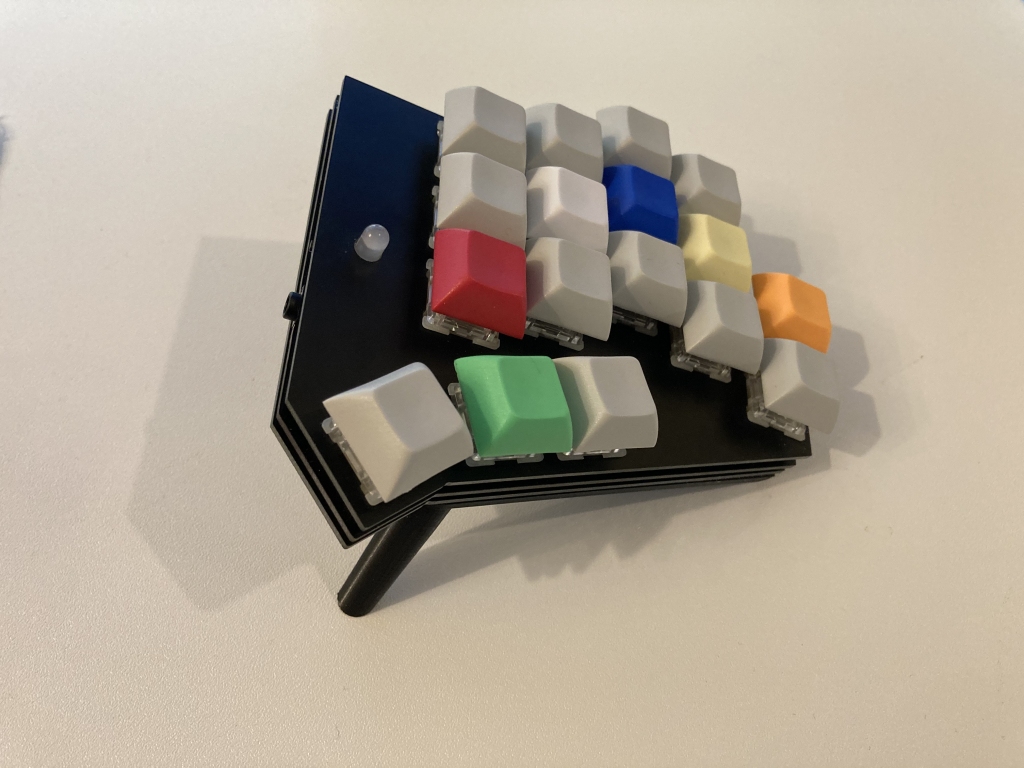

Amber plate extended
About the Amber plate extended PCB
Amber plate extended is an open source PCB design by nezumee, published on GitHub under the MIT license. It is a 2-layer board measuring 127 × 119.3 mm, with 5 components from 1 distinct parts.
It belongs with the keyboards designs in this gallery.
From the project
Personalized split keyboard based on Zebra experimentation
PCB x2, switch plate PCB x2, bottom plate PCB x2 (see gerber, all PCBs are reversible) ProMicro or equivalent x2 (if using something other than ProMicro, check if it will fit in the PCB cutout!) Peel-A-Way sockets x48 pins (https://keeb.io/products/peel-a-way-sockets-for-pro-micros) Mid-mount TRRS jack x2 (https://www.digikey.com/en/products/detail/cui-devices/SJ-43504-SMT-TR/2625173 or PJ342C in https://www.aliexpress.com/item/1005001299482943.html) Tactile switch x2 (https://www.digikey.com/en/products/detail/panasonic-electronic-components/EVQ-P7C01P/4429458) RGB LED x2…
Amber plate extended bill of materials (BOM)
5 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | — | M2_Hole_TH | P1, P2, P3, P4, P5 |
Amber plate extended design files
The KiCad project lives in the nezumee/amber repository on GitHub; these links point at the commit this page was built from.
Amber plate extended: common questions
How big is the Amber plate extended PCB?
The Amber plate extended measures 127 × 119.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Amber plate extended?
5 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the Amber plate extended design files?
From the nezumee/amber repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Amber plate extended design in my own project?
Yes, under the terms of its MIT license, which nezumee chose for the repository.
